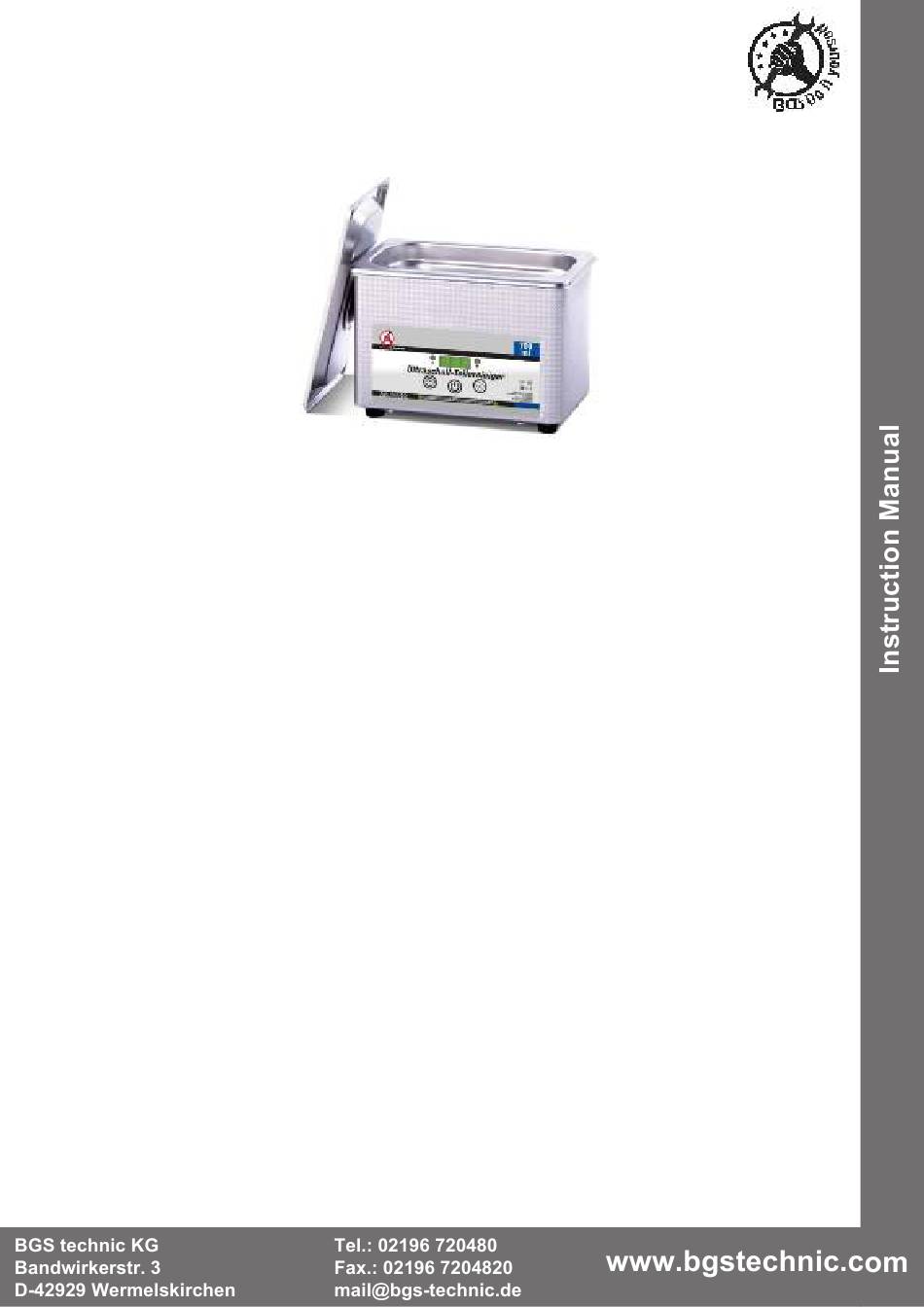

BGS technic BGS 63080 Instruction Manual
BGS technic BGS 63080 Instruction Manual

BGS technic BGS 63080 Instruction Manual

Ultrasonic parts cleaner, 700 ml

Advertisement

Quick Links

Ultrasonic Parts Cleaner, 700 ml

SPECIFICATIONS

Mains supply: AC 220-240 V | 50-60 Hz
Ultrasonic power: 35 Watt
Ultrasonic frequency: 42 KHz
Time control: 0-30 minutes, (18 time steps)
Tank capacity: 700 ml
Tank dimensions: 154 x 88 x 65 mm
Tank material: Stainless steel (SUS304)
Housing material: Stainless steel
Overall dimensions: 180 x 110 x 128 mm
Weight: 1 kg (1.3 kg)
Thank you for purchasing the ultrasonic cleaner. Please take the time to read these operating
instructions before use and keep them for future reference. Failure to follow these instructions may
lead to serious injury and damages to the product.

APPLICATIONS

This list is almost endless, provided the product is non porous and can normally be immersed in water
almost anything can be thoroughly cleaned. Here are some examples:
Knives, tools, jewelry, gold, silver, platinum, printer heads, watch bands, electrical components, coins,
etc. but the ultrasonic cleaner is not recommended for gemstones like Opal, Pearl, Emerald,
Tanzanite, Malachite, Turquoise, Lapis and Coral.

FEATURES

Digital control and Degas function
42KHz for intensive rinse
1-30 minutes working time
Die casting stainless steel tank

ULTRASONIC PRINCIPLE

Ultrasonic cleaning is based on the cavitation effect caused by high frequency ultrasonic wave
vibration signal in the fluid. Microscopic bubbles are formed, and they implode violently causing the
cavitation which create an intense scrubbing action on the surface of the item being cleaned.
The bubbles are small enough to penetrate microscopic crevices, cleaning them thoroughly and
consistently. Ultrasonic cleaning is extremely effective at removing dirt and grime which would
normally require tedious manual cleaning by hand. It has been used to clean a wide variety of parts
and returning them to almost "like new" condition without damage to delicate parts.
SW-Stahl und Werkzeugvertriebs GmbH
5
d i e
6
e
s
s
a r t S
h
c
s
m
e
R
Tel. +49 (0) 2191 / 46438-0
r e
F
ax +49 (0) 2191 / 46438-40
s
u
k r e
v
e
7
9
8
2
4 -
D
e
BGS 63080
L
d . l h
a t s
w
s
@
o f n i
: l i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BGS 63080 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for BGS technic BGS 63080

  • Page 1 BGS 63080 Ultrasonic Parts Cleaner, 700 ml SPECIFICATIONS Mains supply: AC 220-240 V | 50-60 Hz Ultrasonic power: 35 Watt Ultrasonic frequency: 42 KHz Time control: 0-30 minutes, (18 time steps) Tank capacity: 700 ml Tank dimensions: 154 x 88 x 65 mm...
  • Page 2 SAFETY INSTRUCTIONS • Keep children and unauthorized persons away from the working area. • Do not allow children to play with this tool or its packaging. • This device is not intended to use by individuals with restricted physical, sensory or metal capacities or those with lack of experience or knowledge, include children, unless they are supervised by an individual who is responsible for their safety or have received training in operating the device.
  • Page 3 Dispose of this product at the end of its working life in compliance with the EU Directive on Waste Electrical and Electronic Equipment. Contact your local solid waste authority for recycling information or give the product for disposal to BGS technic KG or to an electrical appliances retailer.
  • Page 4 EMC Certificate No.: ECT2017E04090-Y5 / DK-80 LVD Certificate No.: ECT2017S04042-X1 Test Report: ECT2017E04090-Y5 Wermelskirchen, den 15.11.2019 ppa. Frank Schottke, Prokurist BGS technic KG, Bandwirkerstrasse 3, D-42929 Wermelskirchen BGS technic KG Tel.: 02196 720480 www.bgstechnic.com Bandwirkerstr. 3 Fax.: 02196 7204820 D-42929 Wermelskirchen...
