Summary of Contents for Merrytek MC054V-RC-2A

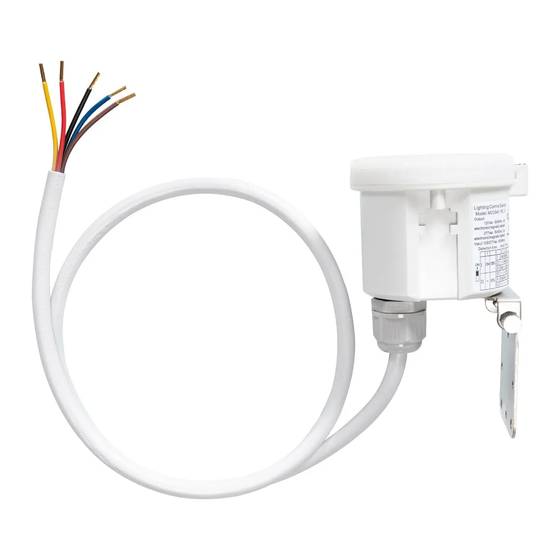

- Page 1 Lighting Control Switch Version: A0 User Manual Product Name: Lighting Control Switch MC054V- RC- 2A MC054V- RC- 2B Model No.: MC054V- RC- 2C MC054V- RC- 2D Issue Date: March 14, 2019 Page 1 of 11...
- Page 2 Lighting Control Switch Version: A0 eatures1. Features Operating voltage 120~277V AC, suitable to Euro & North American market. Patented microwave antenna, mounting height is 15m Max, suitable to install in most of warehouses. Supports high-sensitivity and low-sensitivity modes (for metal ceilings, metal reflector mounting environments) ...
- Page 3 Lighting Control Switch Version: A0 Hold time 5s/30s/1min/3min/5min/10min/20min/30min Stand-by DIM Level 10%/20%/30%/50% Stand-by Period 0s/10s/1min/3min/5min/10min/30min/+∞ Detection Area 25%/50%/75%/100% 5lux/15lux/30lux/50lux/100lux/150lux/Disable (Ambient light diffusion) Detecting Radius See note 2 Mounting Height 15m Max Detecting Angle 150°(wall mounting), 360°(ceiling mounting) Operating Frequency Transmitting power Wireless Transmitting distance Module...
- Page 4 Lighting Control Switch Version: A0 Note 1. “N/A”means not available. 2. Detection area is effected on volume of motion object and motion speed. The detection area is tested by a 165cm height person and walking speed is 0.5m/s. 1. Func tion 1) On/OFF Function ( stand-by period be set to “0”s) 2) 2-step dimming function (stand-by period be set to “+ ∞...
-
Page 5: Dimension (Mm)
Lighting Control Switch Version: A0 4.Dimension (mm) 1）MC054V- RC- 2 A，MC054V- RC- 2B, MC054V-RC- 2C Page 5 of 11... -
Page 6: Usa Version
Lighting Control Switch Version: A0 MC054V- RC- 2D 5.Wiring （Europe,Australia version） （USA version） *The sensor is designed for connect one load only. Connect more than one loads may damage the sensor. Page 6 of 11... -
Page 7: Function Diagram
Lighting Control Switch Version: A0 6.Function Diagram 7.Radiation Pattern Ceiling mounting Ceiling mounted Ceiling mounted Ceiling mounted Ceiling mounted Ceiling mounted height: 3m height: 6m height: 9m height: 12m height: 15m Sensitivity: Sensitivity: Sensitivity: Sensitivity: Sensitivity: 100%/75%/50%/25% 100%/75%/50%/25% 100%/75%/50%/25% 100%/75%/50% 100%/75% Normal moving Normal moving... - Page 8 Lighting Control Switch Version: A0 Slow moving Slow moving Slow moving Slow moving Slow moving (Speed 0.3m/s) (Speed: 0.3m/s) (Speed: 0.3m/s) (Speed: 0.3m/s) (Speed: 0.3m/s) *Only 100%/75%/50% detection sensitivity is workable when installed at 10m & 15m mounting height. 25% sensitivity is not able to detect motion signal.
-
Page 9: Remote Control
Lighting Control Switch Version: A0 8.Remote Control 9. Initialization 1/ On/Off function /3-step dimming function: After power on, the sensor automatically turns on light at 100% brightness. After 10sec, it turns off the light. During the initialization, the sensor is not able to detect movement. 2/ 2-step dimming function: After power on, the sensor automatically turns on light at 100% brightness. -
Page 10: Factory Setting
Lighting Control Switch Version: A0 10. Factory Setting Detection area: 100%, Hold Time: 5S, Stand-by Period: 0s, Stand-by dim level: 10%, Daylight Sensor: Disable 11.Application Notice 1) The sensor should be installed by a professional electrician. Please turn off the power before installing, wiring, changing the setting of the DIP switch. -
Page 11: Fcc Statement
Lighting Control Switch Version: A0 11 FCC Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
