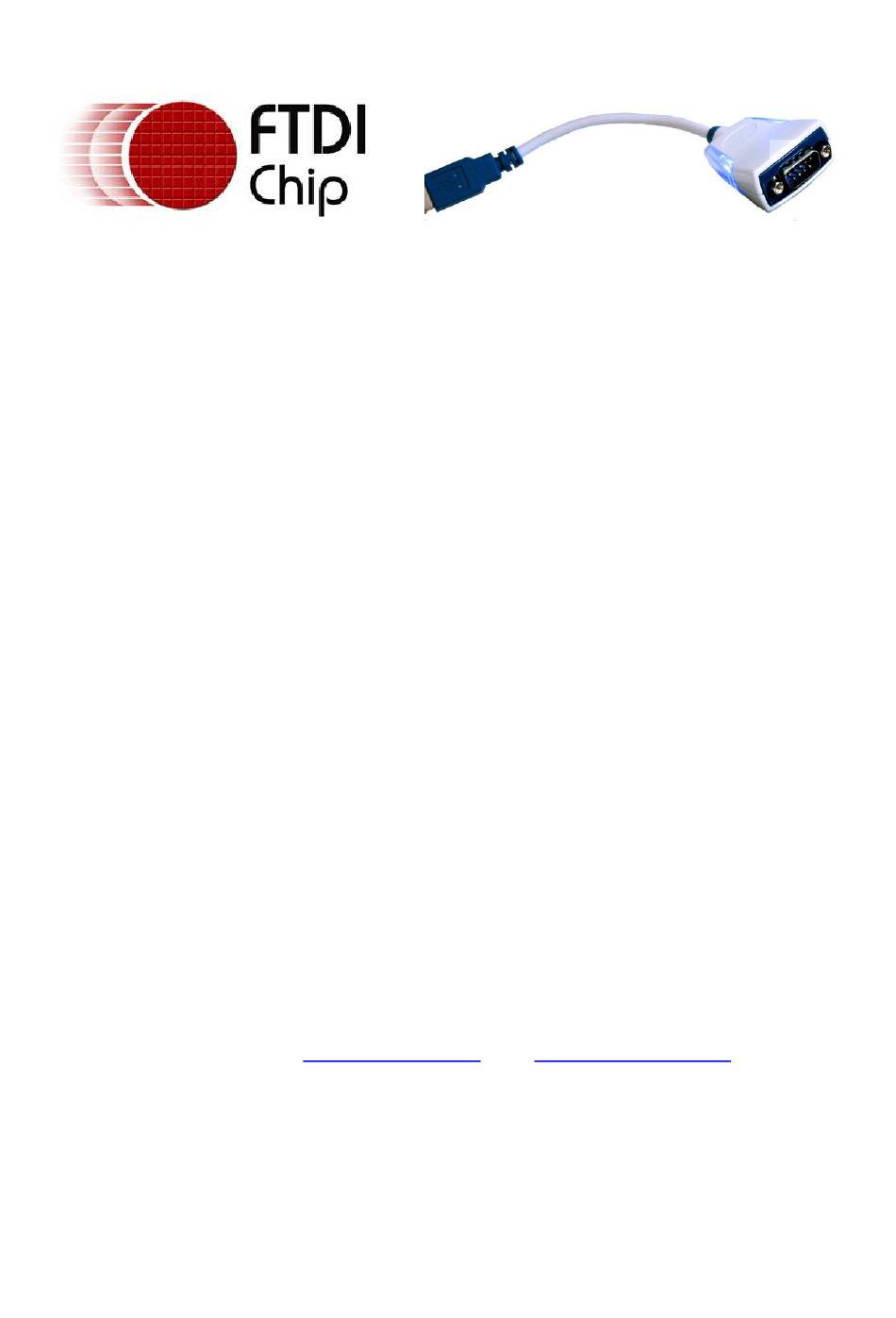

USB to RS232 Adapter cable
The USB-RS232 adaptor cables are a family of communication devices from FTDI Ltd. This model,
US232R, provides a simple method of adapting legacy serial devices with RS232 interfaces to modern
USB ports by incorporating the FTDI FT232R bridge chip.
The US232R cable is available in two lengths 10cm (US232R-10) and 100cm (US232R-
100). Indicator LEDs provide status of Transmit (TX) and Receive (Rx)
Unit1, 2 Seaward Place, Centurion Business Park, Glasgow G41 1HH United Kingdom
E-Mail (Support):
Neither the whole nor any part of the information contained in, or the product described in this manual, may be adapted or reproduced
in any material or electronic form without the prior written consent of the copyright holder. This product and its documentation are
supplied on an as-is basis and no warranty as to their suitability for any particular purpose is either made or implied. Future Technology
Devices International Ltd will not accept any claim for damages howsoever arising as a result of use or failure of this product. Your
statutory rights are not affected. This product or any variant of it is not intended for use in any medical appliance, device or system in
which the failure of the product might reasonably be expected to result in personal injury. This document provides preliminary
information that may be subject to change without notice. No freedom to use patents or other intellectual property rights is implied by
the publication of this document. . Future Technology Devices International Ltd, Unit1, 2 Seaward Place, Centurion Business Park,
Glasgow, G41 1HH, United Kingdom. Scotland Registered Number: SC136640
Copyright © 2009 Future Technology Devices International Limited
FTDI Ltd
DS_US232R-10(R-100)
Data Sheet
Document Reference No.: FT_000151
Version 1.0
Issue Date: 04-08-2009
Future Technology Devices International Limited (FTDI)
Tel.: +44 (0) 141 429 2777
support1@ftdichip.com
Fax: + 44 (0) 141 429 2758
Web:
http://www.ftdichip.com
Advertisement
Chapters
Table of Contents
Summary of Contents for FTDI US232R-10
- Page 1 Version 1.0 Issue Date: 04-08-2009 The USB-RS232 adaptor cables are a family of communication devices from FTDI Ltd. This model, US232R, provides a simple method of adapting legacy serial devices with RS232 interfaces to modern USB ports by incorporating the FTDI FT232R bridge chip.
-
Page 2: Table Of Contents
Document Reference No.: FT_000151 DS_US232R-10(R-100) Sheet USB TO RS232 ADAPTER CABLE Data Version 1.0 Clearance No.: # Introduction ................... 4 Functional Description .................. 4 Typical Applications ..................5 Driver Support ....................6 Block Diagram ....................7 1.4.1 Block description ..................7 Cable Features .................... - Page 3 Document Reference No.: FT_000151 DS_US232R-10(R-100) Sheet USB TO RS232 ADAPTER CABLE Data Version 1.0 Clearance No.: # Environmental Approvals & Declarations ........25 EMI Compatibility ..................25 Safety ......................25 Environmental ..................... 25 Reliability ....................25 Troubleshooting ................26 Hardware ....................26 Device Driver ....................
-
Page 4: Introduction
DE-9P connector. The maximum RS232-level data rate is 1MBaud. The US232R adapter cable requires USB device drivers, available free from FTDI, which are used to make the US232R appear as a Virtual COM Port (VCP). This allows existing serial communications software, such as HyperTerminal, to exchange data through the US232R to a legacy RS232 peripheral device. -
Page 5: Typical Applications
Document Reference No.: FT_000151 DS_US232R-10(R-100) Sheet USB TO RS232 ADAPTER CABLE Data Version 1.0 Clearance No.: # Typical Applications USB to RS232 Converter • Upgrading Legacy Peripherals to USB • USB Audio and Low Bandwidth Video data transfer • PDA to USB data transfer •... -
Page 6: Driver Support
• Windows CE.NET (Version 4.2 and greater) • The drivers listed above are all available to download for free from the FTDI website. Various 3rd Party Drivers are also available for various other operating systems - see the FTDI website for details. -
Page 7: Block Diagram
USB A Connector This connector provides the interface for connection to a USB Host or Hub port Cable The US232R cable is available in two lengths 10cm – Part number US232R-10 and 100cm - Part number US232R-100. FTDI FT232R The FTDI FT232R provides the USB-to-Serial conversion. Operating system device drivers are required in order to work with the FT232R to provide the Virtual COM Port serial functionality. -
Page 8: Cable Features
Enhanced RS232 transceiver gives serial port speed of up to 1MBaud. • Gold plated USB and DB9 connectors for enhanced connection reliability • Integral 10cm (US232R-10) or 100cm (US232R-100) USB cable with moulded strain relief • Quality 4-layer PCB design •... -
Page 9: Performance Figures
12Mbps USB 2.0 Full-Speed Standard Windows baud rates (300bps to 921.6Kbps) Custom baud rates (300bps to 1Mbps) through baud rate aliasing. See RS232 Interface FTDI Application Note: Configuring FT232R, FT2232 and FT232BM Baud Rates Table 1.1 Performance Figures Ordering Information... -
Page 10: Ft232R Key Features
FT232R datasheet, which is available from the FTDI website. 2.1.1 Integrated EEPROM Previous generations of FTDI’s USB UART devices required an external EEPROM if the device were to use USB Vendor ID (VID), Product ID (PID), serial number and product description strings other than the default values in the device itself. -
Page 11: Ftdichip-Id
This gives achievable baud rates in the range 183.1 baud to 3,000,000 baud. When a non- standard baud rate is required simply pass the required baud rate value to the driver as normal, and the FTDI driver will calculate the required divisor, and set the baud rate. See FTDI application note AN232B-05 for more details The US232R cable is limited to a maximum of 1 Mbaud because of the line driver within the circuit. -
Page 12: Installation
Document Reference No.: FT_000151 DS_US232R-10(R-100) Sheet USB TO RS232 ADAPTER CABLE Data Version 1.0 Clearance No.: # Installation RS232 Connection Pin Out Figure 3-1 RS232 DB9 Pin Out DB9 Pin No. Name Type Description Input Data Carrier Detect control input RXDATA Input Receive Asynchronous Data input. -
Page 13: Device Driver Installation
1) Login to your system as Administrator, or a user with Administrator rights. 2) Prior to connecting the US232R to the USB Host or Hub port, download the latest device driver version from the FTDI web site. 3) Run this executable to install the device drivers. -
Page 14: Figure 3-4 Automatic Install
Document Reference No.: FT_000151 DS_US232R-10(R-100) Sheet USB TO RS232 ADAPTER CABLE Data Version 1.0 Clearance No.: # Figure 3-4 Automatic Install 5) Wait while the driver is found, downloaded, and installed. This step may take a couple minutes depending on the Internet speed. 6) After the files are found and installed, click “Finish”... -
Page 15: Figure 3-7 Device Manager
Figure 3-7 Device Manager Click on the Plus “+” sign next to the Ports tree to list the available COM port. You will see “FTDI USB COM Port”, followed by a COMn assignment. In the figure below, the US232R is assigned to COM3. -
Page 16: 3.2.2 Mac Os X, Linux, Windows Ce
Windows will remember this COM port number. 3.2.2 Mac OS X, Linux, Windows CE Device drivers and FTDI installation guides for Mac OS X, Linux and Windows CE are available for download on the FTDI web site. -
Page 17: Connections
Document Reference No.: FT_000151 DS_US232R-10(R-100) Sheet USB TO RS232 ADAPTER CABLE Data Version 1.0 Clearance No.: # Connections External Connectors 3.3.1 USB The USB-F-1001 is a downstream USB 2.0 Device. A standard USB Series “A” connector is mounted inside the USB-F-1001 to facilitate connection to an upstream USB Host or Hub. Pin Number Pin Type Description... -
Page 18: Electrical Details
Document Reference No.: FT_000151 DS_US232R-10(R-100) Sheet USB TO RS232 ADAPTER CABLE Data Version 1.0 Clearance No.: # Electrical details Parameter Description Minimum Typical Maximum Units Conditions *Present when USB cable is attached and USB_VCC Input Power Voltage* 4.25 5.0* 5.25 USB Host or Hub powered. -
Page 19: Mechanical Details
Document Reference No.: FT_000151 DS_US232R-10(R-100) Sheet USB TO RS232 ADAPTER CABLE Data Version 1.0 Clearance No.: # Mechanical Details Module Mechanical Dimensions Figure 5-1 Cable Dimensions Copyright © 2009 Future Technology Devices International Limited... -
Page 20: Figure 5-2 Case Top Dimensions
Document Reference No.: FT_000151 DS_US232R-10(R-100) Sheet USB TO RS232 ADAPTER CABLE Data Version 1.0 Clearance No.: # Figure 5-2 Case top Dimensions Copyright © 2009 Future Technology Devices International Limited... -
Page 21: Figure 5-3 Case Base Dimensions
Document Reference No.: FT_000151 DS_US232R-10(R-100) Sheet USB TO RS232 ADAPTER CABLE Data Version 1.0 Clearance No.: # Figure 5-3 Case Base Dimensions Copyright © 2009 Future Technology Devices International Limited... -
Page 22: Figure 5-4 Cap Dimensions
Document Reference No.: FT_000151 DS_US232R-10(R-100) Sheet USB TO RS232 ADAPTER CABLE Data Version 1.0 Clearance No.: # Figure 5-4 Cap Dimensions Copyright © 2009 Future Technology Devices International Limited... -
Page 23: Figure 5-5 Lens Dimensions
Document Reference No.: FT_000151 DS_US232R-10(R-100) Sheet USB TO RS232 ADAPTER CABLE Data Version 1.0 Clearance No.: # Figure 5-5 Lens Dimensions Copyright © 2009 Future Technology Devices International Limited... -
Page 24: Physical Environment Details
Document Reference No.: FT_000151 DS_US232R-10(R-100) Sheet USB TO RS232 ADAPTER CABLE Data Version 1.0 Clearance No.: # Physical Environment Details Operating Parameter Description Minimum Typical Maximum Units Conditions Operating Temperature 5% to 95% RH, –20 Range non condensing Table 6.1 Operating Temperature Copyright ©... -
Page 25: Environmental Approvals & Declarations
Document Reference No.: FT_000151 DS_US232R-10(R-100) Sheet USB TO RS232 ADAPTER CABLE Data Version 1.0 Clearance No.: # Environmental Approvals & Declarations EMI Compatibility FCC and CE The US232R has been tested to be compliant with both FCC Part 15 Subpart B and European EMC Directive. -
Page 26: Troubleshooting
Ensure the latest device driver is in use. See www.ftdichip.com If other devices with FTDI chips are installed in the system, check with all manufacturers of these devices for the latest device drivers. See the FTDI installation guides for additional details: http://ftdichip.com/Documents/InstallGuides.htm... -
Page 27: Contact Information
Web Site URL: http://www.ftdichip.com Distributor and Sales Representatives Please visit the Sales Network page of the FTDI Web site for the contact details of our distributor(s) and sales representative(s) in your country. Copyright © 2009 Future Technology Devices International Limited... -
Page 28: Appendix A - List Of Figures And Tables
Document Reference No.: FT_000151 DS_US232R-10(R-100) Sheet USB TO RS232 ADAPTER CABLE Data Version 1.0 Clearance No.: # Appendix A - List of Figures and Tables List of Figures Figure 1-1 Block diagram ..........................7 Figure 3-1 RS232 DB9 Pin Out ........................12 Figure 3-2 Hardware Ready ...........................13 Figure 3-3 Found New Hardware Wizard ......................13 Figure 3-4 Automatic Install ..........................14... -
Page 29: Appendix B - Revision History
Document Reference No.: FT_000151 DS_US232R-10(R-100) Sheet USB TO RS232 ADAPTER CABLE Data Version 1.0 Clearance No.: # Appendix B - Revision History Draft Initial Draft – subject to change 07-07-2009 Rev 1.0 Initial Release 04-08-2009 Copyright © 2009 Future Technology Devices International Limited... - Page 30 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: FTDI US232R-10-BULK US232R-100-BLISTER US232R-100-BULK US232R-10-BLISTER US232R-500-BULK...
