G
G
1
1
.
.
I
I
n
n
t
t
r
r
o
o
d
d
u
u
c
c
t
t
i
i
o
o

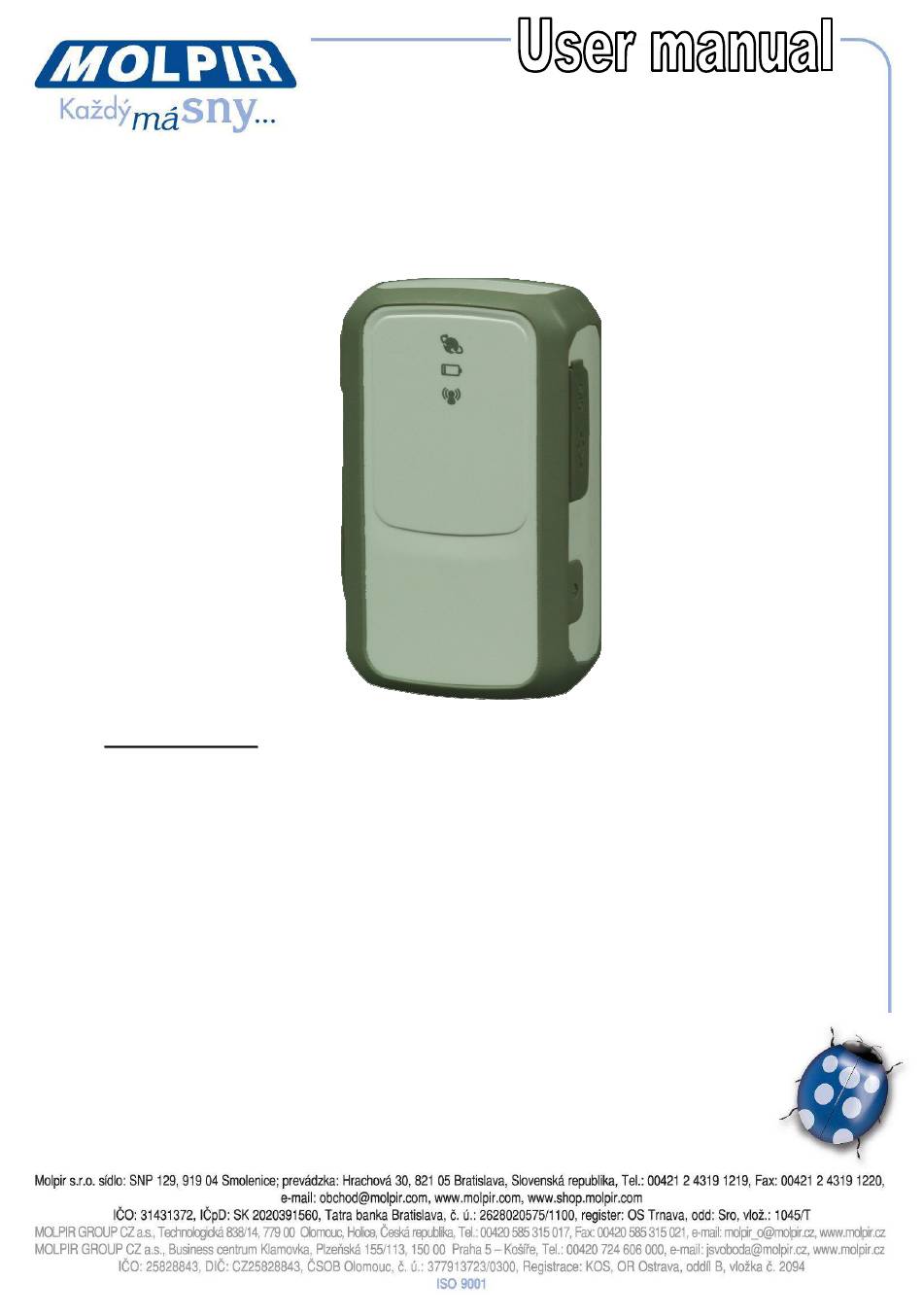

The MTB200 is a powerful GPS locator which designed for vehicle, pets and assets
tracking. With superior receiving sensitivity, fast TTFF (Time to First Fix) and GSM
frequencies 850/900/1800/1900. Its location can be real time or schedule tracked by
beckend server or other specified terminals. Based on the embedded @Track
protocol, MTB200 can communicate with a backend server through the GPRS/GSM
network and transfer reports of Emergency, Geo-fence, device status and scheduled
GPS position etc..... Service provider is easy to setup their tracking platform based
on the functional @Track protocol.
Date: 05.11.2013
S
M
/
G
P
R
S
M
/
G
P
R
n
n
Ord.code.: MTB200
S
/
G
P
S
T
S
/
G
P
S
T
r
a
c
k
e
r
r
a
c
k
e
r
Page 1 / 14
NU_MTB200_001_05112013_EN
Advertisement
Related Manuals for Molpir MTB200
Summary of Contents for Molpir MTB200
- Page 1 Ord.code.: MTB200 The MTB200 is a powerful GPS locator which designed for vehicle, pets and assets tracking. With superior receiving sensitivity, fast TTFF (Time to First Fix) and GSM frequencies 850/900/1800/1900. Its location can be real time or schedule tracked by beckend server or other specified terminals.
-
Page 2: Button/Mini Usb Interface Description
GSM LED Power Key Function Key Button/Mini USB Interface Description Power Key Turn on MTB200 Turn off MTB200 when without charging. (If power key is enabled) Function Key Geo-Fence mode Long press the key to enable/disable Geo- Fence ID0 Geo-Fence in current position mode Long press the key to enable/disable Geo-Fence ID0. - Page 3 There are three LED in MTB200, the description as following. Event State Searching network Fast flash Network has been registered Slow flash Power off Dark GSM LED SIM-PIN Locked Solid Receives a valid protocol command Turn on for 3 seconds <LED on>...
- Page 4 The PIN2 on Mini-USB connector are used for charging and named as VCHG PIN, it can be connected to a 5V DC power supply to power MTB200 and charge the internal battery. VCHG (4.75~5.25V) MTB200 10PIN Mini-USB The PIN8 on Mini-USB connector is for external battery and named as EXTBAT PIN, it can be connected to 3.7V Li-Ion or Li-Polymer battery to...
- Page 5 For example: the power output for radio FM. The older hardware version of the MTB200 whose IMEI code is between 35946403600001X (ignore the last one parity bit X) and 35946403607338X do not support the input function, before using the input function, you should check if the MTB200 is a newer hardware version.
- Page 6 35946403600001X (ignore the last one parity bit X) and 35946403607338X do not support the output function, before using the output function, you should check if the MTB200 is a newer hardware version. The PIN9 on Mini-USB connector is a negative trigger output in newer hardware version, it is named as OUT PIN.
- Page 7 The output examples are show as following figures: MTB200 10PIN Mini-USB POWER REZISTOR Example of OUT PIN drive a LED MTB200 10PIN Mini-USB DIODE 1N4004 Vehicle’s battery line RELAY Example of OUT PIN drive a relay If the digital output is used to drive a relay, a catch diode is showed across the relay coil, this is necessary to prevent damage to the digital output when the relay is turned off.
- Page 8 A common diode such as a 1N4004 will work in most circumstances. There is a MMCX RF connector on MTB200 and it is for external GPS antenna. The specification of the external GPS antenna is listed in following table.
- Page 9 It is used to charge AC-DC Power Adapter the internal battery of (Standart accesory) MTB200 It is used to attach the MTB200 to belt MTB200 Sheath (Optional accesory) It is used to power the MTB200 with the cigarette power output...
- Page 10 It is the USB data MTB200 Data Cable cable which can be (Optional accessory) used for firmware „CA80189“ upgrading and configuration. It is the extend cable which include the charger interface and external battery MTB200 External Cable interface on MTB200.
- Page 11 During charging, the PWR LED is flashing fast. When the battery is full charged, the PWR LED will be Ever-light. You can also charge the battery by USB cable which connects MTB200 with the PC. Charging time is about 5 hours...
- Page 12 If the IMEI code of the MTB200 is between 35946403600001X (ignore the last one parity bit X) and 35946403607338X, the green wire and yellow wire of the external cable should not be used. Some earlier external cables contains only four wires, the earlier external cables can only be used in the older hardware version og MTB200.
- Page 13 Turn Off: Method 1:Press the power key about 2 seconds; PWR LED will fast and then turn off, it indicates that MTB200 is turned off. The time of power off depends on the quality of network. The maximum time of power off is 90 seconds.
- Page 14 Please do not put the device on the overheating or too humid place, avoid exposure to direct sunlight. Too high temperature will damage the device or even cause the battery explosion. Please do not use MTB200 on the airplane or near medical equipment Date: 05.11.2013...
