Safety advice
Check the chain hoist before use: Check hook, chain and brake for proper operation and whether the
block has been lubricated, sufficiently. For a safe and secure operation, follow these six simple rules:
1. Never try to lift things that weigh more than the maximum capacity of the chain hoist (2 to.).
2. Never work the chain as a noose.
3. Never use the hoist with a knotted chain.
4. To avoid accidents, never stand under a load while being lifted.
5. In case of the chain being stuck, do not use excessive force but check the hoist block for
sufficient lubrication.
6. Only use the chain hoist for vertical lifting operations. The chain hoist has not been designed for
pulling/dragging heavy loads.
Technical specifications
Maximum capacity:
Maximum stroke length:
Expenditure of energy
under full load:
Height (min. measurement): 420 mm
Weight:
SW-Stahl und Werkzeugvertriebs GmbH
L
e
v
e
k r
u
s
r e
t S
a r
s
s
e
6
5
D
4 -
2
8
9
7
R
e
m
s
c
h
e
d i

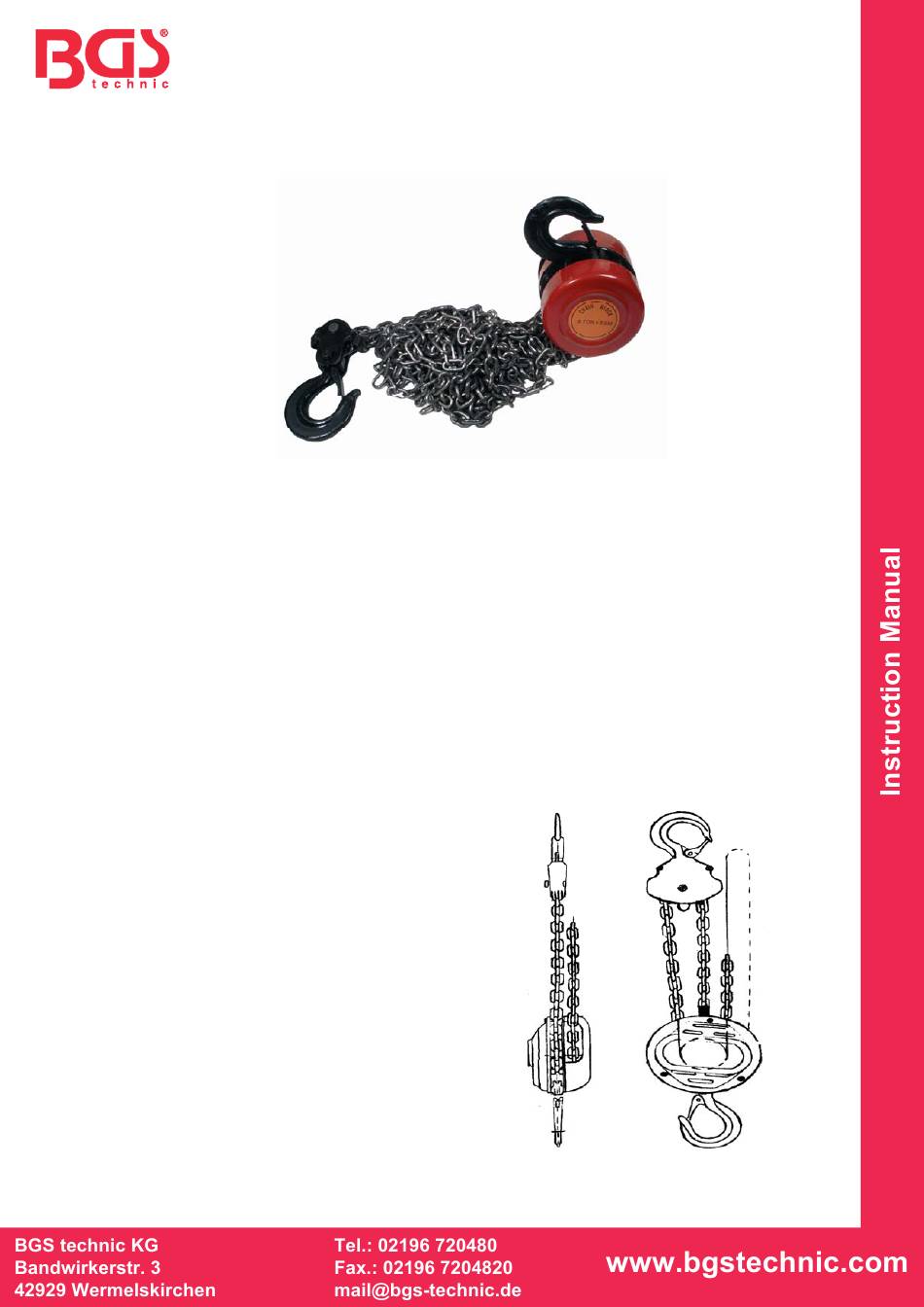

Chain Hoist, Capacity 2 to.
2000 kg
2500 mm
315 N
15 kg
Tel. +49 (0) 2191 / 46438-0
F
ax +49 (0) 2191 / 46438-40
- E
M
a
: l i
n i
o f
@
s
w
s
a t
l h
d .
e
Art. 3484
Advertisement
Table of Contents
Related Manuals for BGS technic 3484
Summary of Contents for BGS technic 3484
- Page 1 Art. 3484 Chain Hoist, Capacity 2 to. Safety advice Check the chain hoist before use: Check hook, chain and brake for proper operation and whether the block has been lubricated, sufficiently. For a safe and secure operation, follow these six simple rules: 1.
- Page 2 Maintenance and service Clean the chain hoist after each use and store it under dry conditions to avoid corrosion. Clean the chain block once a year: Bath all parts in kerosene and lubricate them afterwards. It would be best to have all parts be cleaned and serviced by a qualified expert. ...
- Page 3 Registration No. : AM 50170400 0001/HS2t Report No.: 15020978 002 Wermelskirchen, den 27.02.2014 ppa. Frank Schottke, Prokurist BGS technic KG, Bandwirkerstrasse 3, D-42929 Wermelskirchen SW-Stahl und Werkzeugvertriebs GmbH Tel. +49 (0) 2191 / 46438-0 ax +49 (0) 2191 / 46438-40 : l i...
