Summary of Contents for prophecy gofanco PRO-VideoWallv2

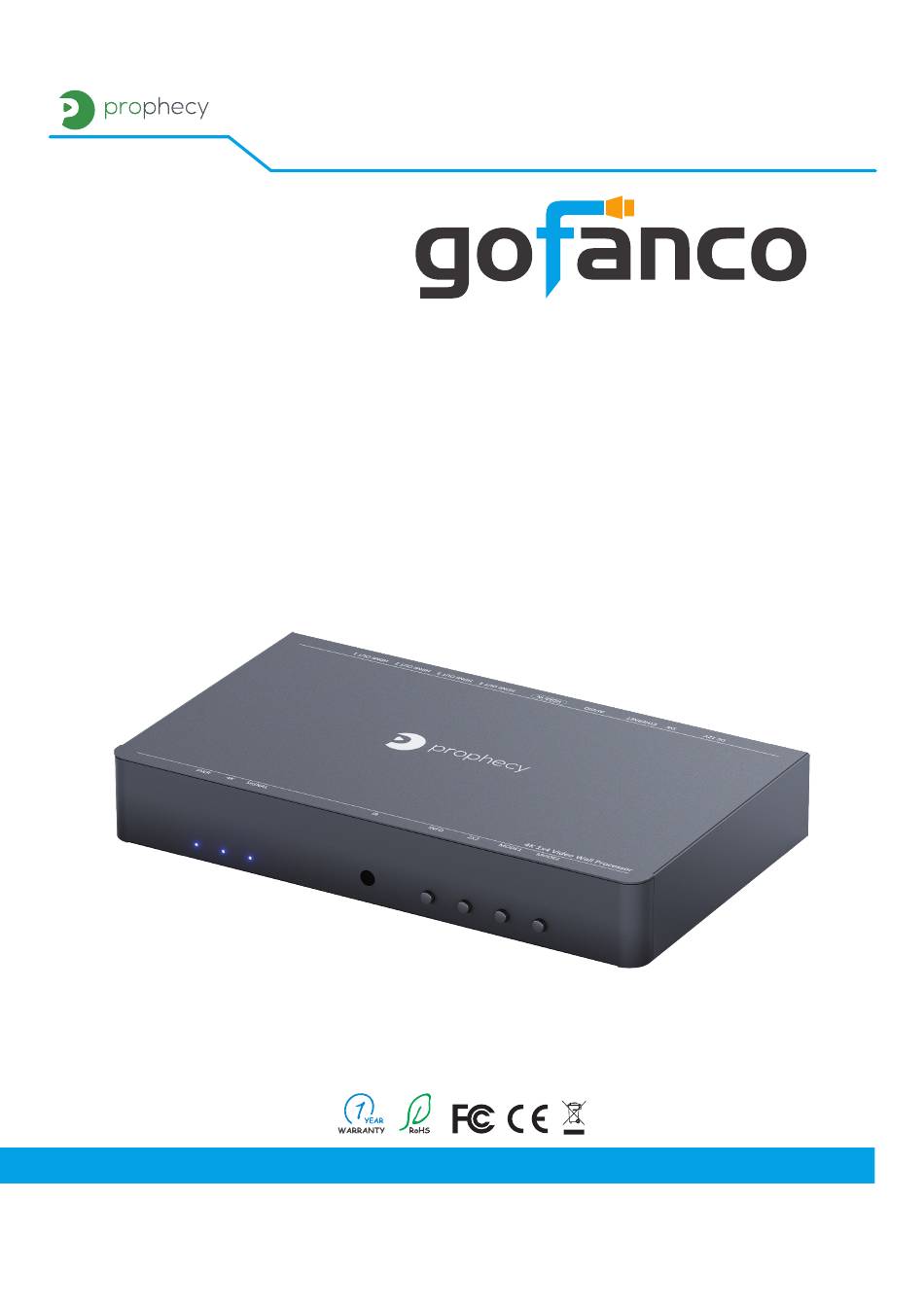

Page 1 ® PRO-VideoWallv2 4K 2x2 Video Wall Processor User‘s Guide Made in Taiwan...
Page 2 ® PRO-VideoWallv2 Congratulations for owning a gofanco product. Our products aim to meet all your connectivity needs wherever you go. Have fun with our products! Please read this manual carefully before first use. If you need more information about our products, please visit www.gofanco.com.
Page 3: Table Of Contents
® PRO-VideoWallv2 Table of Contents 1. INTRODUCTION......................4 2. FEATURES........................4 3. PACKAGE CONTENTS....................5 4. SPECIFICATIONS....................6 5. PANEL DESCRIPTION....................7 6. CONNECTION DIAGRAM..................8 7. HARDWARE INSTALLATION..................8 8. SUPPORTED RESOLUTIONS..................9 9. OPERATION APPROACH..................10 10. EDID LEARNING.....................26 11. LIMITED WARRANTY.....................27...
Page 4: Introduction
® PRO-VideoWallv2 1. Introduction The PRO-VideoWallv2 4K 2x2 Video Wall Processor is a powerful, cost effec- tive, and real time data/video processor for multiple monitors, flat panel dis- plays, projectors. Virtually any video wall layout can be configured with the control software.
Page 5: Package Contents
® PRO-VideoWallv2 • Supports remote control to switch 1x1, 2x2, 1x3 rotate, and 1x4 rotate mode • Supports independent input rotation at the resolution up to 1080p • 3840x2160@60 (YUV 4:4:4) can be divided and displayed onto four 1080p60 TV (2x2 layout only) •...
Page 6: Specifications
® PRO-VideoWallv2 4. Specifications Item Description Technical Role of usage Video Wall Processor HDCP compliance Input – Single link 600MHz [18Gbps] Video bandwidth Output –Single-link 225MHz [6.75Gbps] Input – 3840x2160/4096x2160@60 (4:2:2 8bits) / 3840x2160/4096x2160@60 (4:4:4 8bits) Video support Output – 1920x1080@60 / 1920x1200@60 Video Format Support HDMI Audio support...
Page 7: Panel Description
® PRO-VideoWallv2 5. Panel Description Front Panel 1. LED indicator: PWR – Power indicator LED 4K – Lit when a 4K source is detected Source – Source signal indicator LED 2. IR SENSOR: Receive IR commands from IR remote 3. Control buttons: Button 1 –...
Page 8: Connection Diagram
® PRO-VideoWallv2 6. Connection Diagram 7. Hardware Installation 1. Connect an HDMI video source to the PRO-VideoWallv2’s HDMI input. 2. Connect all displays to the PRO-VideoWallv2’s HDMI outputs. 3. Connect the +12V DC power supply to the PRO-VideoWallv2.
Page 9: Supported Resolutions
® PRO-VideoWallv2 8. Supported Resolutions Input resolution Output resolution 640x480@60Hz 720x480@60Hz 720x576@60Hz 720x480@60Hz 800x600@60Hz 720x576@50Hz 1024x768@60Hz 1280x720@60Hz 1280x720@60Hz 1920x1080@30Hz 1280x768@60Hz 1920x1080@60Hz 1280x960@60Hz 4K2K@30Hz 1280x1024@60Hz 3840x2160@60Hz (4:2:2 8bits) 1366x768@60Hz 3840x2160@60Hz (4:4:4 8bits) 1440x900@60Hz 4096x2160@60Hz (4:2:2 8bits) 1680x1050@60Hz 4096x2160@60Hz (4:4:4 8bits) 1920x1080@60Hz 1920x1200@60Hz 1600x1200@60Hz...
Page 10: Operation Approach
® PRO-VideoWallv2 9. Operation Approach Method A: IR Remote Control Button Function Display device status (IN/OUT Resoluti- INFO on, EDID, Layout) Turn off the stereo audio output MUTE Power ON/OFF the video wall processor POWER Fast switch to VW1x1 (Full Screen) Fast switch to VW3x1 (-90°) Fast switch to VW3x1 (+90°) Fast switch to VW2x2...
Page 11 ® PRO-VideoWallv2 Method B: Software Operation System Requirements and Precautions 1. When powering off the PRO-VideoWallv2, please keep it unpowered for 10 seconds to allow the power capacitors to discharge. 2. The PRO-VideoWallv2 control software works with Microsoft Windows 7, 8.1, 10. *Note that macOS is not currently supported.
Page 12 ® PRO-VideoWallv2 Control Interface Connection Status: Show the connection information and status. When you’ve successfully connected, the power & connection type icons will change from gray to blue. If you connect via USB control mode, the POWER & USB icons are blue. For IP control, the POWER and ETHERNET icons are blue.
Page 13 ® PRO-VideoWallv2 Horizontal Screen VW Modes: Output Layout Window: You can view the screen status and control the position of output TV through the window. The different colors of window represent the different output TVs. Video Resolution: You can check input resolution and choose output resolution by using drop- down list.
Page 14 ® PRO-VideoWallv2 Vertical Screen VW Modes: Output Layout Window: The output resolution will be fixed @ 1080p when set VW mode for vertical screen You can view the screen status and control the position of output TV through the window. The different colors of window represent the different output TVs. Video Resolution: You can check input resolution and choose output resolution by using drop-down list.
Page 15 ® PRO-VideoWallv2 Daisy Chain: Output Layout Window: You can select the area by double left click of your mouse to adjust in the window. Then you can move the area position and change size directly. The different colors of window represent the different output TVs. Focus coordinate: You can set the coordinates and size of the selected area, and click　　...
Page 16 ® PRO-VideoWallv2 System: Network: You can use the Ethernet to control software program. First, you should click button to read the Ethernet setting from device and manually set to device or click option to automatically get the IP address. After the step of IP configuration, please restart the machine. Note: The IP address shown here is just an example.
Page 17 ® PRO-VideoWallv2 System: • FACTORY RESET: Click button do a factory reset back to the original/default settings. This process takes about 5 seconds to complete. Upon completion, restart the video wall. • FIRMWARE VERSION: Read the software and firmware version. •...
Page 18 ® PRO-VideoWallv2 Method C: Web Control through Ethernet Port System Requirements and Precautions The PRO-VideoWallv2 proves a web control interface that runs under Microsoft Windows 7, 8.1, 10. * macOS and iOS are not currently supported Login 1. First, connect the video wall’s Ethernet to the network. Then, execute the software (downloadable from gofanco.com/downloads), and confirm that the software is connected.
Page 19 ® PRO-VideoWallv2 3. Enter the IP address read from step 2 into a web browser. The password is “admin” to login. Control Interface 1. Main: Audio: You can unmute or mute all output audio.
Page 20 ® PRO-VideoWallv2 Status: You can check input and output status here. 2. Setup: Output: You can check input resolution and choose output resolution here. Layout: We provide 8 quick select layouts, and 8 preset spaces to save the frequently used scenarios into the device. You can choose output 1-4 to set parameters, including Horizontal Start, Vertical Start, Horizontal End, Vertical End, and rotation method.
Page 21 ® PRO-VideoWallv2 HPD: You can re-plug input and output by clicking button.
Page 22 ® PRO-VideoWallv2 3. EDID: Mode: You can select EDID mode of input. Info: You can choose different input and output EDID through the drop-down list to check the feature and audio formats. Update/Download: You can click button to open EDID from file, and select the destination.
Page 23 ® PRO-VideoWallv2 4. Network: IP Settings: Set the Ethernet for the device and check relevant information here. Web Login Settings: Set new password for Administrator account. 5. System: In this function, user can read the firmware version here. In addition, you can click button to do factory default reset or click button to...
Page 24 ® PRO-VideoWallv2 Method D: APP Control through Ethernet Port Download the APP Tlease search for “Video Wall” in Google Play Store or “Video-Wall” in Apple App Store and download the app. Android: https://play.google.com/store/apps/details?id=com.gomax.gomax_vw_1404 iOS: https://apps.apple.com/app/id1515468591 Android Add Device to APP 1.
Page 25 ® PRO-VideoWallv2 2. Click to get the IP address. *Note: The IP address shown here is just an example. Your IP address may differ. 3. Make sure you phone and video wall are on the same domain/wifi router. Open the app, enter the “IP address” and click button.
Page 26: Edid Learning
® PRO-VideoWallv2 10. EDID Learning The EDID learning function is only necessary whenever you encounter any display on the HDMI output port that cannot play audio and video properly. Because the HDMI sources and displays may have various level of capability in playing audio and video, the general principle is that the source will output the lowest standards in terms of audio format and video resolutions to be com- monly acceptable among all HDMI displays.
Page 27: Limited Warranty
® PRO-VideoWallv2 11. Limited Warranty The SELLER warrants the PRO-VideoWallv2 4K 2x2 Video Wall Processor free from defects in the material and workmanship for 1 year from the date of purchase from the SELLER or an authorized dealer. Should this product fail to be in good working order within 1 year warranty period, The SELLER, at its option, repair or replace the unit, provided that the unit has not been subjec- ted to accident, disaster, abuse or any unauthorized modifications including...
