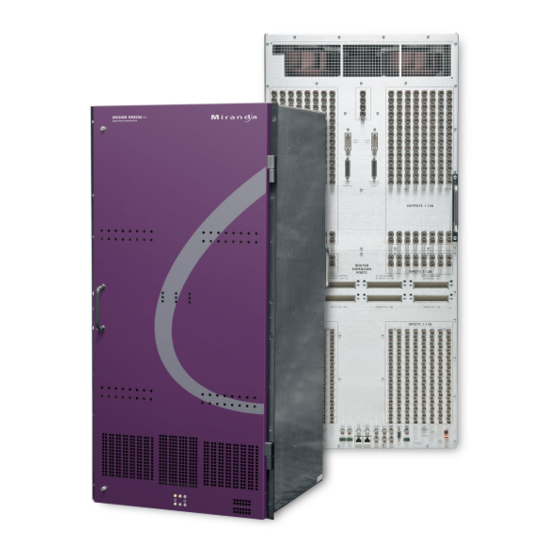

Miranda NV8256-Plus User Manual

Digital video router
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
NV8256-Plus
Digital Video Router
User's Guide
Miranda Technologies Inc.
3499 Douglas B. Floreani
Montreal, Quebec
Canada H4S 2C6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NV8256-Plus and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Miranda NV8256-Plus

Summary of Contents for Miranda NV8256-Plus

  • Page 1 NV8256-Plus Digital Video Router User’s Guide Miranda Technologies Inc. 3499 Douglas B. Floreani Montreal, Quebec Canada H4S 2C6...
  • Page 2 The information and intellectual property contained herein is confidential between Miranda and the client and remains the exclusive property of Miranda. If you find any problems in the documentation, please report them to us in writing. Miranda does not warrant that this document is error-free.
  • Page 3 Contact Miranda for details on the software license agreement and product warranty. Technical Support Contact Information Miranda has made every effort to ensure that the equipment you receive is in perfect working order and that the equipment fits your needs. In the event that problems arise that you cannot resolve, or...
  • Page 4 DEM/D.Cox Restriction on Hazardous Substances (RoHS) Miranda is in compliance with EU Directive RoHS 2002/95/EC governing the restricted use of cer- tain hazardous substances and materials in products and in our manufacturing processes. Miranda has a substantial program in place for RoHS compliance that includes significant invest- ment in our manufacturing process, and a migration of Miranda product electronic components and structural materials to RoHS compliance.
  • Page 5 The fuse symbol indicates that the fuse referenced in the text must be replaced with one having the ratings indicated. The presence of this symbol in or on Miranda equipment means that it has been designed, tested and certified as complying with applicable Underwriter’s Laboratory (USA) regulations and rec- ommendations.
  • Page 6 General Warnings A warning indicates a possible hazard to personnel which may cause injury or death. Observe the following general warnings when using or working on this equipment: • Heed all warnings on the unit and in the operating instructions. •...

  • Page 7: Table Of Contents

    Frame Expansion ............. . 22 NV8256-Plus Digital Video Router • User’s Guide...
  • Page 8 Table of Contents Chapter 3 Installation ............. . . 23 Summary .
  • Page 9 ................73 NV8256-Plus Digital Video Router • User’s Guide...
  • Page 10 Table of Contents Rev 1.3 • 29 Mar 09...

  • Page 11: Preface

    1. Preface Chapter 1 provides an overview of the NV8256-Plus User’s Guide. The following topics are dis- cussed: • Chapter Structure • The PDF Document • Terms, Conventions and Abbreviations Chapter Structure The following chapters provide detailed instructions for all aspects of NV8256-Plus operation: •...

  • Page 12: Terms, Conventions And Abbreviations

    1. Preface Terms, Conventions and Abbreviations • Use Acrobat’s ‘Go to Previous View’ and ‘Go to Next View’ buttons to retrace your complete navigational path. • Use the ‘First Page’, ‘Previous Page’, and ‘Next Page’, and ‘Last Page’ buttons to go to the first, previous, next, or last page within a PDF file.

  • Page 13: Introduction

    Support for SD, HD, and 3.0 Gb/s is called “3Gig.” The NV8256-Plus is a robust system capable of supporting signal rate of 10 Mb/s up to 3.0 Gb/s. This enables you to invest in a single router to meet current routing needs and potential future growth as industry standards evolve.

  • Page 14: Cooling

    Converted to: PAL or NTSC analog composite video Switching Configurations The NV8256-Plus is designed to be highly flexible, enabling the creation of a variety of configura- tions for managing incoming and outgoing signals. A single router can manage a maximum of 256 inputs and 256 outputs.

  • Page 15: Crosspoint Card Slots And Managed Signals

    Examples of Switching Configurations The following table lists possible switching configurations when two routers are connected together. For each configuration, the table lists in which slot crosspoint cards are installed, on NV8256-Plus Digital Video Router • User’s Guide...

  • Page 16: Power Supply

    Router 2 Power Supply The power supply for the NV8256-Plus is an external, separate frame, the NV6257. The NV6257 uses the PS6000 series power supply module. The NV8256-Plus router requires four PS6000 power supply modules. For redundancy, an additional four PS6000 modules can be installed. The NV6257 can house a total of four primary and four redundant PS6000 power supply modules.

  • Page 17: Fuses

    Front Slots Figure 2-2 on page 8 shows the front of the NV8256-Plus with the door removed. From this view, in the slots that do not have an active card installed (right-hand side), the backside of the backplate and the motherboard connections are visible.
  • Page 18 Card Slot (1) Output Card Slots (8) Output Cards (8) Crosspoint Cards (3) 1 - 128 Input Input Card Cards (8) Slots (8) Router Control Cards (2) Figure 2-2. NV8256-Plus Router with Door Removed (Front View) Rev 1.3 • 29 Mar 09...

  • Page 19: Slots And Corresponding Signal Numbers

    Figure 2-3. Inputs and Outputs, Numbers Assigned (Front View) If the NV8256-Plus router is used as a standalone router, up to 256 incoming signals can be received and up to 256 outgoing signals distributed. The crosspoint card installed in the left cross- point card slot manages inputs 1–256.

  • Page 20: Rear Connections

    Module Slots and Rear Connections Rear Connections The rear of the NV8256-Plus (Figure 2-4 on page 10) features a backplate containing BNC connec- tions: 256 for receiving signals and 256 for distributing signals. These connections are passive and pass the signals through to active, receiving connections on the input cards and output cards.

  • Page 21: Router Control System Connections

    Serial Control Connections The NV8256-Plus has four serial ports, as shown in Figure 2-6 on page 11. The ports are divided into two sets, one primary (‘PRIMARY CONTROL’) and one secondary (‘SECONDARY CON- TROL’). Primary control is the connection to the primary control card. Secondary control is the connection to the secondary (optional for redundancy) control card.

  • Page 22: Diagnostic

    Some third-party router control systems require a GSC Node Bus connection. The GSC Node Bus connection is located on the rear of the router, as shown in Figure 2-8. The NV8256-Plus has one GSC Node Bus connection, labeled ‘NVISION AUX BUS’. The connection is shared by both the primary and secondary control card.

  • Page 23: Router Control System Expansion Connections

    Figure 2-9. Permanent Diagnostic Connections (Rear View) Router Control System Expansion Connections In order to manage two connected NV8256-Plus routers, router control system expansion connec- tions need to be connected between the routers. Router control expansion system connections are located on the rear of the router, as shown in Figure 2-10.

  • Page 24: Alarm

    See Alarm Indicator Equipment on page 46. In addition to an alarm connection, the NV8256-Plus can be connected to a router control system that receives status information from the router’s control card(s). See Making Router Control Sys- tem Connections on page 35.

  • Page 25: Active Cards

    Active Cards Active Cards The NV8256-Plus features several active cards that manage incoming signals, process commands from the control system, perform signal switching, and distribute outgoing signals. Each card slides into a card guide and has a lever that holds the card in place and aids card ejection.

  • Page 26: Standard Input Cards

    2. Introduction Active Cards SWB, 3Gig or analog. For your convenience, the part number for each card has been included. For a detailed description of a card’s function, see Input Card Functions on page 16. Input Card Standard Category Signal Type (SMPTE) Rates Part Number...

  • Page 27: Filler Input Cards

    Figure 2-14. Filler Input Card Block Diagram Analog-to-SD Input Cards An analog-to-SD input card (EM0451) converts incoming analog PAL or NTSC composite video signals to SMPTE 259M-C digital component signals (4:2:2, 270 Mb/s). NV8256-Plus Digital Video Router • User’s Guide...

  • Page 28: Crosspoint Cards

    2. Introduction Active Cards The input card receives 16 signals from the local coaxial connectors. Each input is forwarded to an analog-to-digital converter that converts the signals to digital. Each digital input is forwarded to one of 16 distribution amplifiers, which distributes three copies of the signal. One copy is sent to a buffer and then the motherboard, which forwards the signal to the crosspoint card in the left slot (inputs 1–256).

  • Page 29: Middle Slot Functions

    The following is a list of the different output cards available. Each card is listed by the function it performs — standard or SD-to-analog — and the type of signal it manages — SD, SWB, 3Gig or NV8256-Plus Digital Video Router • User’s Guide...

  • Page 30: Standard Output Cards

    2. Introduction Active Cards analog. For your convenience, the part number for each card has been included. For a detailed description of a card’s function, see Output Card Functions on page 20. Output Signal Standard Card Supported (SMPTE) Re-Clock At Pass Through Part Number Mb/s...

  • Page 31: Monitor Card

    There are two monitor connections. Using UniConfig, each connection can correspond to a unique signal level, enabling the control system to monitor two signal rates at the same time. For more information on levels, see the UniConfig User’s Guide. NV8256-Plus Digital Video Router • User’s Guide...

  • Page 32: Frame Expansion

    43. Frame Expansion Two NV8256-Plus router frames can be connected together to create a switching matrix of up to 512 inputs and 512 outputs. The two frames are linked by connecting expansion connections on one router to expansion connections on a second router.

  • Page 33: Installation

    Verification Summary When setting up the NV8256-Plus for the first time, or reconfiguring an existing router configura- tion, there are certain steps that must be performed. It is recommended that initial installation and later reconfiguration tasks be performed in a specific order to avoid possible complications.

  • Page 34: Package Contents

    User’s Guide. Package Contents When your NV8256-Plus products from Miranda arrive, immediately inspect the shipping con- tainer for any obvious damage. If the container is damaged, unpack and inspect the contents. If the contents are damaged, notify the carrier immediately.

  • Page 35: Rack Mount

    4 Lift the NV6257 frame into position and attach the NV6257 frame to the front of the rack with the appropriate screws. Be sure to leave room for the NV8256-Plus frame to be mounted in the rack. Place screws in all frame mounting screw holes.

  • Page 36: Making Power Connections

    • One, NV8256-Plus monitor cable (WC0046-00) The NV8256-Plus has a ground lug on the back of the router. Whether to ground or not is optional and failure to connect the ground does not affect normal operation. However, grounding helps pro- tect you and your equipment in case of a power anomaly such as a lightning strike.

  • Page 37: Power Cords And Branch Circuits

    Connecting Power to the NV6257 and the Router The NV8256-Plus uses both power connections on the NV6257. To make this connection, Miranda provides two power cables (WC0085-00). Make power connections between the router and NV6257 before connecting the Caution NV6257 to an AC power source.
  • Page 38 3. Installation Making Power Connections Output Power 1 Power Supply Output Power 2 Power Connector (Power Connector) Power supply connections PS1 through PS8 Output Output Power 1 Power 2 Power Supply Alarms Monitors Power Supply Alarms Monitors (DB25 Connector) (DB25 Connector) Figure 3-1.
  • Page 39 ‘Power Supply Monitors’ DB25 connection, as shown in Figure 3-1 on page 28. 8 Facing the rear of the router, connect the other end of the monitor cable to ‘Power Supply Monitor’, as shown in Figure 3-2. NV8256-Plus Digital Video Router • User’s Guide...

  • Page 40: Installing Active Cards

    AWG. The ground lug is located in the lower, right-hand corner of the frame. Installing Active Cards The NV8256-Plus router features several active cards that manage incoming signals, forwarding of control system commands, signal switching, and distribution of outgoing signals. Cards slide into a card guide such that the connectors on the rear of the card interface with the motherboard.
  • Page 41 For information about crosspoint cards, crosspoint card slots and outputs managed, see Crosspoint Cards on page 18. • (Optional) Monitor card — insert in the vertical, upper-middle slot. Levers are located at the top and bottom of each card. NV8256-Plus Digital Video Router • User’s Guide...
  • Page 42 3. Installation Installing Active Cards Control Card—Secondary Control Card—Primary Figure 3-4. Card Locations in Router Frame (Front View) 3 On each card, press both levers inward, making sure each card is fully seated in the card guide and slot. 4 Reinstall and close the frame front door after all cards have been installed. The door must be closed for the router cooling system to work properly.

  • Page 43: Making Signal Connections

    Making Signal Connections Making Signal Connections In order for the NV8256-Plus to properly manage incoming and outgoing signals, the I/O connec- tions on the rear of the router must be connected to cables that receive and distribute the signals. The NV8256-Plus contains up to 256 input connections and up to 256 output connections.

  • Page 44: Signal Expansion Connections

    Connections, following.) Signal Expansion Connections As a standalone router, the NV8256-Plus can manage up to 256 inputs and 256 outputs. Using the NV8256-Plus signal expansion connections two routers can be connected, increasing the number of signals managed up to 512 inputs and 512 outputs. Connected routers must be situated physically next to each other, either top to bottom or side to side.

  • Page 45: Making Router Control System Connections

    257–320 1–64 Making Router Control System Connections To manage signal switching in the NV8256-Plus, connections need to be created between the router control system and the router. Connections are as follows: • Serial Control — use to connect to a third-party router control system requiring serial control connections.

  • Page 46: Serial Control Connections

    3. Installation Making Router Control System Connections In order for the router control system to communicate with the router, Comm port and Baud rate information must be entered in each control card using UniConfig. This information is entered using a temporary diagnostic connection between the router and UniConfig. (See Temporarily Con- necting to UniConfig on page 41.) After the information is entered, the router control system con-...

  • Page 47: Ethernet Control Connections

    6 If two NV8256-Plus routers are being connected together, connect the control system expan- sion connections. (See Control System Expansion Connections on page 39.) If the NV8256-Plus is being used as a standalone router, install 50 Ω BNC terminators on the control system expansion connections. See Terminating Unused Control System Expansion Connections on page 40.

  • Page 48: Gsc Node Bus Control Connections

    5 If two NV8256-Plus routers are being connected together, connect the control system expan- sion connections. (See Control System Expansion Connections on page 39.) If the NV8256-Plus is being used as a standalone router, install 50 Ω BNC terminators on the control system expansion connections. See Terminating Unused Control System Expansion Connections on page 40.

  • Page 49: Control System Expansion Connections

    5 If you are connecting two NV8256-Plus routers together, you need to connect the control sys- tem expansion connections. (See Control System Expansion Connections, following.) If the NV8256-Plus is being used as a standalone router, install 50 Ω BNC terminators on the control system expansion connections. See Terminating Unused Control System Expansion Connections on page 40.

  • Page 50: Terminating Unused Control System Expansion Connections

    Making Diagnostic Connections The diagnostic connections enable the NV8256-Plus to communicate with the UniConfig applica- tion. UniConfig is installed on a unit, separate from the router (e.g., PC), and is used to perform system setup tasks, and configure and monitor the router. For information about using UniConfig, see the UniConfig User’s Guide.

  • Page 51: Router Ip Address

    There are two diagnostic ports located on the rear of the router, labeled ‘DIAG’. The diagnostic ports default to 38,400 baud, RS-232, but can be set to RS-422 using UniConfig. For more informa- tion, see the UniConfig User’s Guide. NV8256-Plus Digital Video Router • User’s Guide...

  • Page 52: How To Make Permanent Diagnostic Connections

    3. Installation Making Diagnostic Connections How to Make Permanent Diagnostic Connections: 1 Locate the diagnostic connections on the rear of the router, as shown in Figure 3-12. The diag- nostic connections are labeled ‘DIAG’. NVISION VIDEO VIDEO TIME ALARMS CTRL CTRL CTRL 1 CTRL 2...

  • Page 53: Making Video Reference Connections

    5 Connect to the ‘VIDEO REF 2’ input connection, as described in Steps 2 through 4. Making Monitor Connections The monitor connections on the rear of the NV8256-Plus enable the monitoring of outgoing sig- nals. The monitor connections forward signals from the monitor card, which receives one signal...

  • Page 54: Local Monitor Connections

    If connecting two NV8256-Plus routers together, only one router is connected directly to the moni- toring equipment. This router acts as the primary router. Monitor expansion connections are then made between the primary router and the secondary, connected router.
  • Page 55 5 Connect the other end of the cable to the ‘IN 2’ monitor connection on the primary router using a 75 Ω BNC connector, as shown in Figure 3-15. NV8256-Plus Digital Video Router • User’s Guide...

  • Page 56: Making Alarm Connections

    Making Alarm Connections Making Alarm Connections The NV8256-Plus provides system alarms that notify you of a malfunction, such as when a fan or power supply is not functioning properly. Alarms can be connected to an external alarm indicator that displays visual cues when an alarm is activated. The NV6257 (power supply) and the NV8256- Plus each have alarm connections.

  • Page 57: Nv6257 Alarms

    Router Alarms The ‘ALARM’ connection on the rear of the NV8256-Plus uses a DE9 connector. An “alarm” or ON condition occurs when the connection between an alarm pin and Alarm_COM (common) opens. The alarm turns OFF when the connection between Alarm_COM and the alarm pin closes again.
  • Page 58 Missing power supply module. Alarm_4 Video Ref Missing Video Ref 1 or Video Ref 2. Alarm_5 AES3 ref Not used in NV8256-Plus. Alarm_6 Fans or temperature Indicates a fan failure or module over temperature. Alarm_7 Control module health Any control module not “healthy.”...

  • Page 59: Verification

    Check the AC fuse on the PS6000 power supply module. Check for +48 volts at each of the 5 front test points. • On the NV8256-Plus, check that the LEDs on the input cards, crosspoint cards, control cards, and output cards are lit and indicating a “healthy” system. See...
  • Page 60 3. Installation Verification Rev 1.3 • 29 Mar 09...

  • Page 61: Operation

    • Setting Redundant Crosspoint Card Switching Overview A router control system is required to use the NV8256-Plus router. The control system provides an interface for operations and maintenance personnel. Through the control system, signal switching can be actively configured, reference inputs selected, partitions for organizing signal switching cre- ated, and certain system functions monitored.

  • Page 62: Third-Party Control Systems

    Setting Redundant Crosspoint Card Switching The NV8256-Plus crosspoint card features four buttons located on the front of the card. When the card is installed in the middle crosspoint card slot —the slot for the optional, redundant crosspoint card—the buttons become active and can be used to change which signals the crosspoint card man- ages.
  • Page 63 — sets redundant card to act as a backup to the local crosspoint card should Standby Mode the card fail. • — take over active control of inputs 257–512 from the crosspoint Replace XPT (257–512) card installed in the right crosspoint card slot. NV8256-Plus Digital Video Router • User’s Guide...

  • Page 64: Using Remote Control

    4. Operation Setting Redundant Crosspoint Card Switching • — allows external remote control of the redundant crosspoint card. For Remote Control information on remote control, see Using Remote Control, following. For more information on which signals are controlled by which crosspoint card slot, see Cross- point Card Slots and Managed Signals on page 5.

  • Page 65: Configuration

    Chapter 5 is a place-holder, essentially a pointer to UniConfig. UniConfig Before being placed into service, the NV8256-Plus router needs to be configured for your particular facility and router control system. Configuration includes initializing ports so that the router and UniConfig can communicate, setting up partitions, switch point settings, and testing switching con- figurations.
  • Page 66 5. Configuration UniConfig Rev 1.3 • 29 Mar 09...

  • Page 67: Maintenance

    Obtaining Service General Maintenance The NV8256-Plus does not require any periodic electrical or physical maintenance. Other than cleaning the fan air intake filter, all that is required is periodic inspection of the system to make sure no failures have occurred.

  • Page 68: Indicator Leds

    The LEDs indicate the following: LED Indicator Indicator Function Red (alarm) Normally OFF. If lit, it indicates a problem. Replace the card or call Miranda Technical Support. For contact information, see Technical Support Contact Information on page iii.

  • Page 69: Air Flow

    Intake Filter Screen Cleaning The NV8256-Plus has three fan filters. Two intake filters are located on the front door assembly. To access the filters, open the router door by releasing the two thumbscrew locks and then slide the fil- ters up and to the right to remove.

  • Page 70: Troubleshooting

    In the event that a problem is caused by a bad circuit board, swapping the bad board with a replace- ment circuit board is the quickest solution. To order replacement boards or other components, con- tact Miranda. For contact information, see Technical Support Contact Information on page iii.

  • Page 71: Obtaining Service

    Miranda at your company’s expense. 4 When repair or replacement of in-warranty equipment is complete, Miranda return ships the items at our expense. For out-of-warranty equipment Miranda charges a shipping and handling fee.
  • Page 72 6. Maintenance Obtaining Service Rev 1.3 • 29 Mar 09...

  • Page 73: Glossary

    Society of Motion Picture and Television Engineers. www.smpte.org. An international professional association, based in the United States of America, of engineers working in the motion imaging industries. Super wide band. The combination of SD and HD signal rates up to 1.5 Gb/s. NV8256-Plus Digital Video Router • User’s Guide...
  • Page 74 7. Glossary Glossary Underwriters Laboratory Incorporated. Develops standards and test procedures for materials, com- ponents, assemblies, tools, equipment and procedures, chiefly dealing with product safety and util- ity. UniConfig Software used to configure the router control system. Volts. Volts, alternating current. Volts, direct current.

  • Page 75: Technical Details

    8. Technical Details Chapter 8 provides technical specifications for the NV8256-Plus router and the NV6257 power supply. • Power Specifications (NV6257, PS6000) • Physical Specifications • Environmental Specifications • Audio Specifications • Video Specifications • Time Code Specifications Power Specifications (NV6257, PS6000) Power is supplied through a separate frame, the NV6257 Power Supply.

  • Page 76: Physical Specifications

    Operating temperature: 0 to 40°C. Relative humidity: 0 to 90%, non-condensing. Regulatory compliance UL listed and CE compliant. Physical Specifications The following table provides physical specifications for the NV8256-Plus. Specification Detail Dimensions 22RU (38.47 inches, 997.1 mm) high. 19.0 inches (482.6 mm) wide.

  • Page 77: Environmental Specifications

    Connectors: 2, BNC, loop-through. Impedance: 50 Ω. Redundant crosspoint control Connectors: DB25. Power supply monitor Connectors: DB25. Environmental Specifications The following table provides environmental specifications for the NV8256-Plus. Specification Detail Operating temperature 0–40°C. Relative humidity 0 to 90%, non-condensing. Audio Specifications The following table provides audio specifications for the NV8256-Plus.

  • Page 78: Video Specifications

    8. Technical Details Video Specifications Video Specifications The following table provides video specifications for the NV8256-Plus. Specification Detail Video reference input Type: analog video reference. Standard: PAL, NTSC, or tri-level sync. Connectors: loop-through, BNC. Impedance: 75 Ω or Hi-Z (> 20 kΩ), not selectable.
  • Page 79 Differential gain: < 0.3%. Differential phase: < 0.3 degrees. Pedestal (input): > 75 dB unweighted. Pedestal (output): > 75 dB unweighted. Ramp (input): > 50 dB unweighted. Ramp (output): > 62.5 dB unweighted. NV8256-Plus Digital Video Router • User’s Guide...

  • Page 80: Time Code Specifications

    8. Technical Details Time Code Specifications Time Code Specifications The following table provides time code specifications for the NV8256-Plus. Specification Detail Time-code reference input Type: 1 BNC, 1 Phoenix. Standard: SMPTE 12M. Connectors: BNC (terminating), Phoenix. Data rates: 1/30 to 80 times normal.

  • Page 81: Part Numbers

    9. Part Numbers Chapter 9 provides a list of parts used in the NV8256-Plus router and NV6257 power supply: • Power Supply • Frame Expansion • Cards Cards EM0374 Control card. EM0437 Input card — standard for SWB signals. EM0437-50 Input card —...
  • Page 82 9. Part Numbers Frame Expansion Rev 1.3 • 29 Mar 09...

  • Page 83: Index
