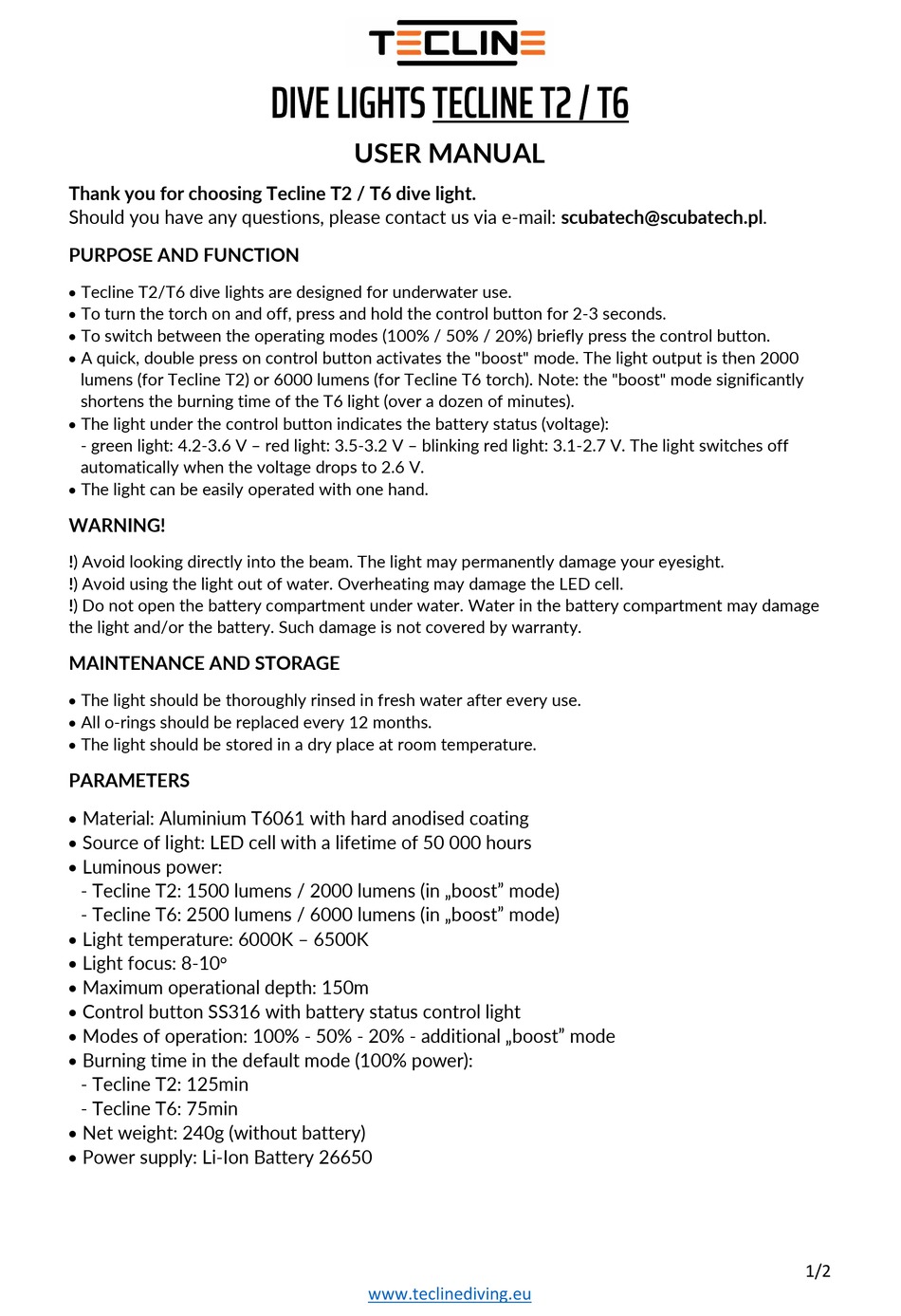

TecLINE T2 User Manual

Thank you for choosing Tecline T2 / T6 dive light.
Should you have any questions, please contact us via e-mail: scubatech@scubatech.pl.

PURPOSE AND FUNCTION

 Tecline T2/T6 dive lights are designed for underwater use.
 To turn the torch on and off, press and hold the control button for 2-3 seconds.
 To switch between the operating modes (100% / 50% / 20%) briefly press the control button.
 A quick, double press on control button activates the "boost" mode. The light output is then 2000
lumens (for Tecline T2) or 6000 lumens (for Tecline T6 torch). Note: the "boost" mode significantly
shortens the burning time of the T6 light (over a dozen of minutes).
 The light under the control button indicates the battery status (voltage):
- green light: 4.2-3.6 V – red light: 3.5-3.2 V – blinking red light: 3.1-2.7 V. The light switches off
automatically when the voltage drops to 2.6 V.
 The light can be easily operated with one hand.

WARNING!

!) Avoid looking directly into the beam. The light may permanently damage your eyesight.
!) Avoid using the light out of water. Overheating may damage the LED cell.
!) Do not open the battery compartment under water. Water in the battery compartment may damage
the light and/or the battery. Such damage is not covered by warranty.

MAINTENANCE AND STORAGE

 The light should be thoroughly rinsed in fresh water after every use.
 All o-rings should be replaced every 12 months.
 The light should be stored in a dry place at room temperature.

PARAMETERS

 Material: Aluminium T6061 with hard anodised coating
 Source of light: LED cell with a lifetime of 50 000 hours
 Luminous power:
- Tecline T2: 1500 lumens / 2000 lumens (in „boost" mode)
- Tecline T6: 2500 lumens / 6000 lumens (in „boost" mode)
 Light temperature: 6000K – 6500K
 Light focus: 8-10 o
 Maximum operational depth: 150m
 Control button SS316 with battery status control light
 Modes of operation: 100% - 50% - 20% - additional „boost" mode
 Burning time in the default mode (100% power):
- Tecline T2: 125min
- Tecline T6: 75min
 Net weight: 240g (without battery)
 Power supply: Li-Ion Battery 26650
DIVE LIGHTS TECLINE T2 / T6
USER MANUAL
www.teclinediving.eu
1/2
