WPS -78P Install Instructions

WPS -78P Install Instructions

Ppc weather protection system for 7/8” din male to antenna or device

Advertisement

Quick Links

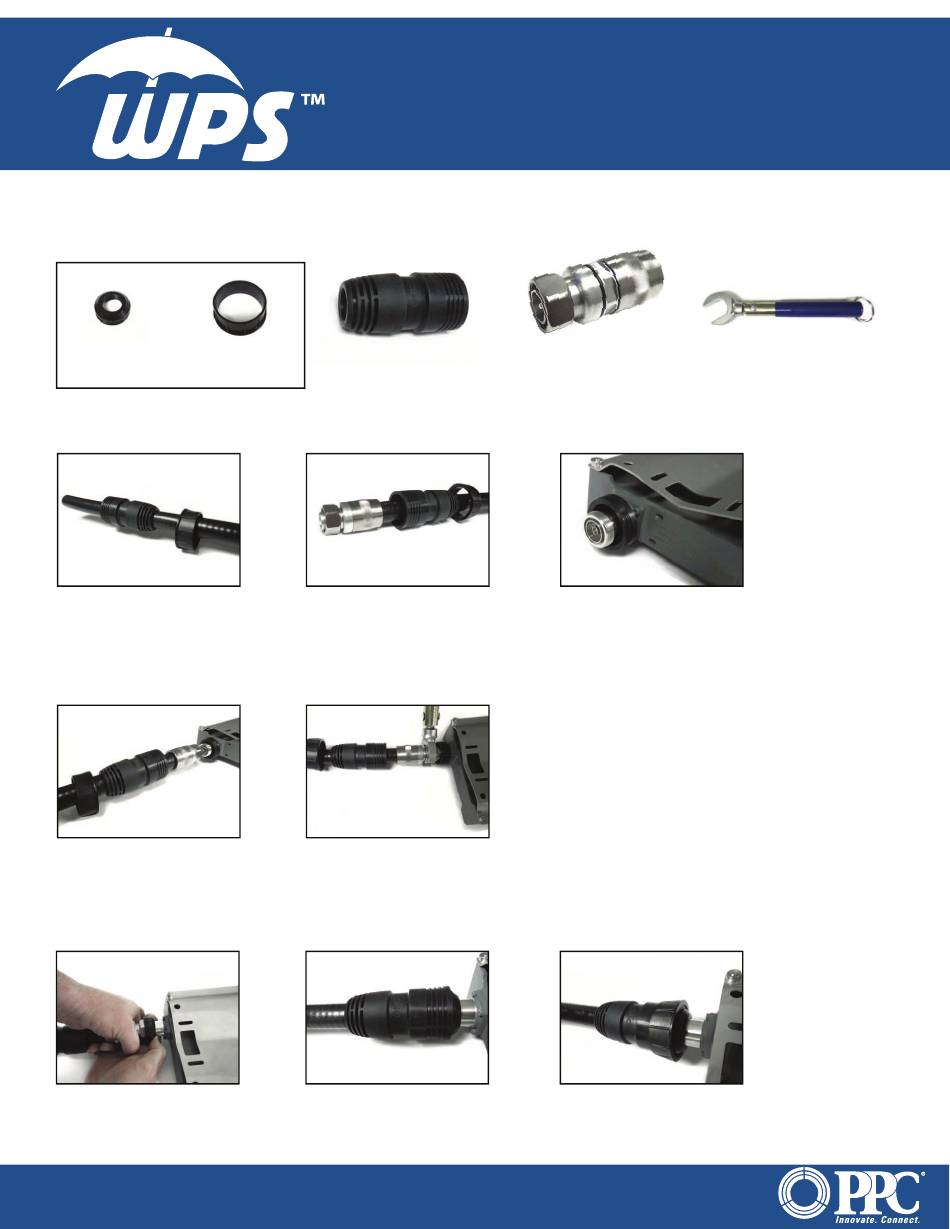

Materials
WPS-78P (KIT)
Dedicated 7/8"
Port Seal
Step #1: Install WPS-5 and WPS-78P
Slide the 7/8" seal ring onto the 7/8" cable,
then the WPS-5 8–12" from the end prior
to cable preparation.
Step #2: Connect and Torque Interface
Connect the UXP-DM-78 to the antenna
port or device and hand tighten.
Step #3: Install PPC WPS to Seal Interface
Pull the dedicated 7/8" port seal over
coupling nut. Seal should cover nut.
6176 East Molloy Road | East Syracuse, NY 13057-0278 | Tel: 315-431-7200 | Email: ppc@ppc-online.com | www.ppc-online.com
7/8" Seal Ring
WPS-5
Prep and install the 7/8" cable to install
the UXP-DM-78 connector. Refer to the
UXP-78 installation instructions.
Torque the connector to 18 ft. lbs. using
the TQ-114-F18 torque wrench.
Slide the WPS-5 over the UXP-DM-78,
making sure to overlap the dedicated
7/8" port seal. WPS-5 should overlap to
cover grooves.
Install Instructions
PPC Weather Protection System™
For 7/8" DIN MALE to Antenna or Device
UXP-DM-78
Slide the dedicated 7/8" port seal onto
the port base by stretching seal over the
threads.
Slide the 7/8" seal ring over the WPS-5 to
align with the leading edge of the WPS-5.
TQ-114-F18
Torque wrench
2-4-2012 rev. A
