Euro Style PENNY Assembly Instructions

Assembly Instructions

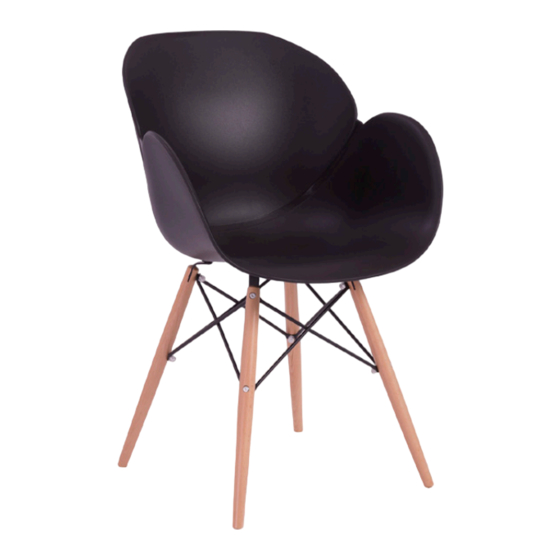

PENNY Arm Chair
A (1pc) B (4 pcs)
D (4 pcs) E (4 pcs)
M6 x 12mm
G (8 pcs) H (8 pcs)
M6 x 35mm
10.26.15 ar
1
Attach Part D to Part B as shown
in the diagram, then screw Part
G to Part B.
Attach Part G
to Part B from
the side with the
countersunk holes.
C (1pc)
3
Parts D are marked with either "e" or "i."
Make sure Parts D marked with "e" are
paralell and Parts D marked with "i" are
paralell, as shown in the diagram.
D,e
F (8 pcs)
D,i
I (1 pc)
PLEASE NOTE: Check that you have received all
components and hardware before assembling.
If you are missing any parts fax Euro Style at
415.455.8033 or email: claims@gotoeurostyle.com
2
D
G
B
4
Attach nuts to the screws.
D,e
D,i
C
B
During assembly, hand tighten screws only. When
the screws are in place, tighten completely.
Repeat Step 1 and assemble all four legs.
D
B
F
F
