Summary of Contents for Synectic Electronics SY045

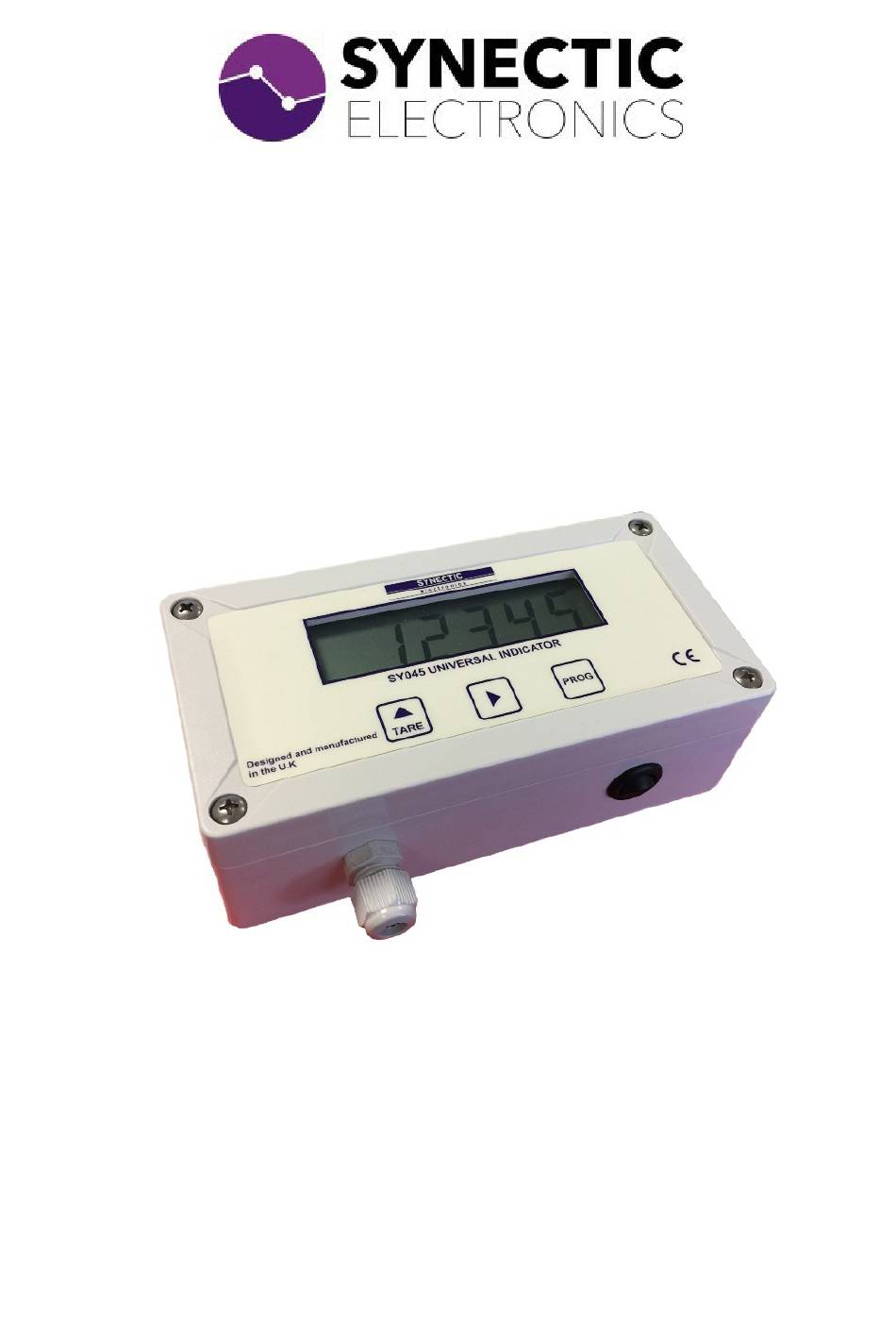

- Page 1 SY045 Weight Indicator Battery Powered version User manual version 1 May 2016...

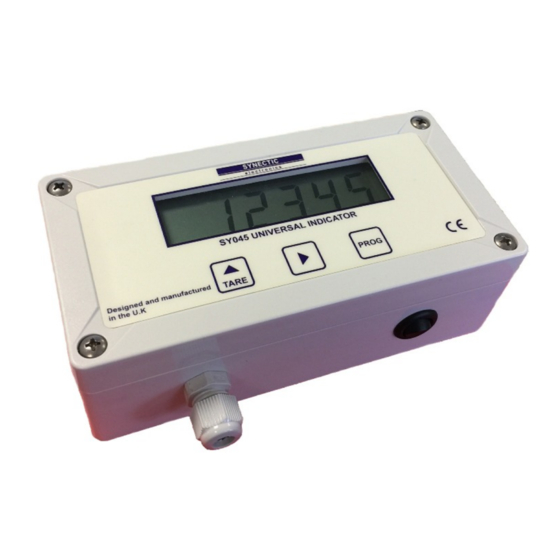

- Page 2 INTRODUCTION SY045 Battery operated version; The SY045 is a high precision 6 digit display weight indicator which requires typically only 3V to operate. This version is Battery powered. It requires 4 x1.5V AA batteries Most of the parameters needed for the display are pre-programmed and any other adjustments to suit application(s) can be made using the presetting buttons on the indicator prior to usage.
- Page 3 H2 connects to intelligent junction box A B C D Switches Fig 1: SY045 input/output layout Physical dimensions ; PCB = 114.6 X 76.2 mm. Unit is wall mountable in ABS IP65 case. 162 x 82 x 40mm (separate wall mounting kit can be provided) Unit configuration;...
- Page 4 Calibration/ unit setup The unit when purchased has default settings therefore the instrument needs to be set/ calibrated to suit user requirements. The unit up arrow is used to scroll through setting parameters as well as the tare button. The PROG button is used store any changes made to parameters in the unit as well as skip through setup parameters to display actual unit reading.
- Page 5 To setup the unit; Press the PROG button and the display will show for the filter value. The unit can be set to different filter values 0-3 which determine the speed of the unit. Press the button and the display will show the default filter value. This can be reset to right value between 0-3 by pressing the up arrow button and once the correct value is entered the PROG button can be pressed to store the new filter value and move to next parameter...
- Page 6 An external mounting set is supplied on request. Inquiries and trouble shooting For any inquiries and problems with SY045 or other available products checkout our website or send email using the appropriate link below. Website www.synectic.co.uk...
