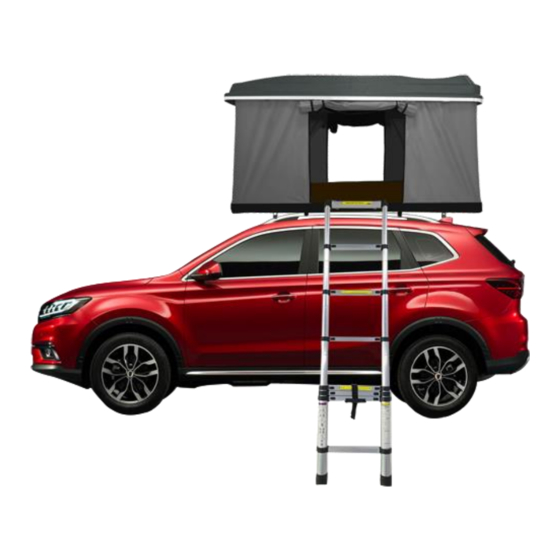

- Page 1 Roof Top Tent User Manual Please read this user manual before using Q02V5...
- Page 2 2 / 8...
- Page 3 Warning Please ensure that the tent is firmly installed before you start your car. Please don’t load over weight item and sharp slam is not permitted. Be sure no barriers around the tent before opening to avoid the damage.
- Page 4 Overview Product Rooftop Tent Small Size: 50”x80” / 127x205cm (W*L) Product Size Medium Size: 55”x85” / 140x215cm (W*L) Sleeps 1-3 Persons Roof ABS (Black / White) Textile Ripstop with coating, Waterproof Frame Aluminium Alloy Open/Close Gas Strut Lifting 42-47Kgs including mattress, excluding ladders and Product Weight tools Components...
- Page 5 Installation Installation of Car Roof Racks To use the roof top tent, the vehicle must have cross racks. ► If the vehicle has cross racks, please be sure that: ● They can load weight of the tent and persons inside (200kgs/pair at least) ●...
- Page 6 5. Re-check the installation bolts and nuts after installation. *Be sure that they are tight before driving. 6. Check the mounting bolts regularly during the trip. Lifting and Using Rising Unlock the Latches/ buckles. Push or pull the shell to upside from front and back side. Take out the ladder and hang it on the hooks of tent frame.
- Page 7 Installation of Tent Roof Racks (optional) 1.Take out roof racks and all brackets (brackets are inside of ladder bag) 2. Install all the parts as follows 3. Put the racks with all parts to the top of tent 4. Remove the screws on side of roof and then install the brackets there by these screws.
- Page 8 What’s in the carton? Item Remark Rooftop Tent 1unit Mattress 1unit Telescopic Ladder (230cm) 1unit In Bag Prop Rods (φ6*110cm) 4pcs In Bag Shoes Bag For 2 pairs of shoes Solar LED light In Color Box Mount (Details as follows): 4x Splints 1set 8x Bolts...
