Use with products heavier than the rated weights indicated may result in instability causing possible injury.
Please closely follow the assembly instructions. Improper installation may result in damage or serious personal injury.
Safety gear and proper tools must be used. This product should only be installed by professionals.
Make sure that the supporting surface will safely support the combined weight of the equipment and all attached hardware and components.
Use the mounting screws provided and DO NOT OVER TIGHTEN mounting screws.
This product contains small items that could be a choking hazard if swallowed. Keep these items away from children.
This product is intended for indoor use only. Using this product outdoors could lead to product failure and personal injury.
Ensure that you have received all parts according to the component checklist prior to installation. If any parts are missing or faulty, contact your place of
purchase for a replacement.
Check that the product is secure and safe to use at regular intervals (at least every three months).
75x75 100x100 100x150
100x200 150x100 150x150
TVARM-DMS01
200x100 200x200 300x200
300x300 400x200 400x300
400x400 600x400 800x400

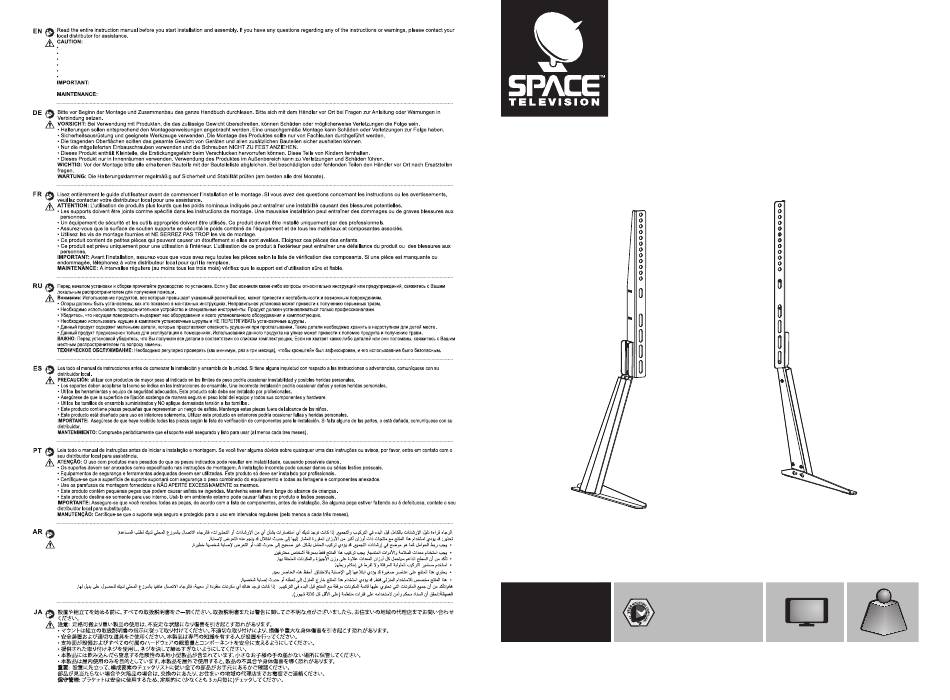

TV TABLETOP
STAND
Instruction Manual
70"
50kg
MAX
(110lbs)
RATED
Advertisement
Table of Contents
Summary of Contents for Space Television TVARM-DMS01
- Page 1 Check that the product is secure and safe to use at regular intervals (at least every three months). Instruction Manual 75x75 100x100 100x150 70" 100x200 150x100 150x150 TVARM-DMS01 50kg 200x100 200x200 300x200 (110lbs) 300x300 400x200 400x300 RATED...
- Page 2 M-A (x4) M-B (x4) M-C (x4) M5x14 M6x14 M6x25 A (x1) B (x1) C (x1) D (x1) M-D (x4) M-E (x4) M8x25 M8x45 E (x1) (x1) (x4) (x8) I (x1) M-F (x4) M-G (x4) M-H (x4) Ø15xØ8x5 Ø15xØ8x15 To assemble the left TV bracket (A), follow step 1-3. To assemble the right TV bracket (B), repeat step 1-3.
