Unilamp Luzense RADIM RF Instruction Manual

EN: Instruction manual
NO: Monteringsveiledning
RADIM RF SWITCH

INTRODUCTION

IMPORTANT: Read all the instructions prior to installation
AC 100-240V Power input
1 CH AC 100-240V output

PRODUCT DATA

Input Voltage 100-240VAC
Output Voltage 1x(100-240)VAC
Output Current 1x1.2A
Output Power 1 x (120-288)W
Measurements 170 x 59 x 29 mm
• Radio Frequency: 868/869.5/916.5/434mhz
• Protection class: IP20
• Great compatibility with a variety of remote controls
• To switch on/off single colour LED lamps, traditional
incandescent and halogen lights

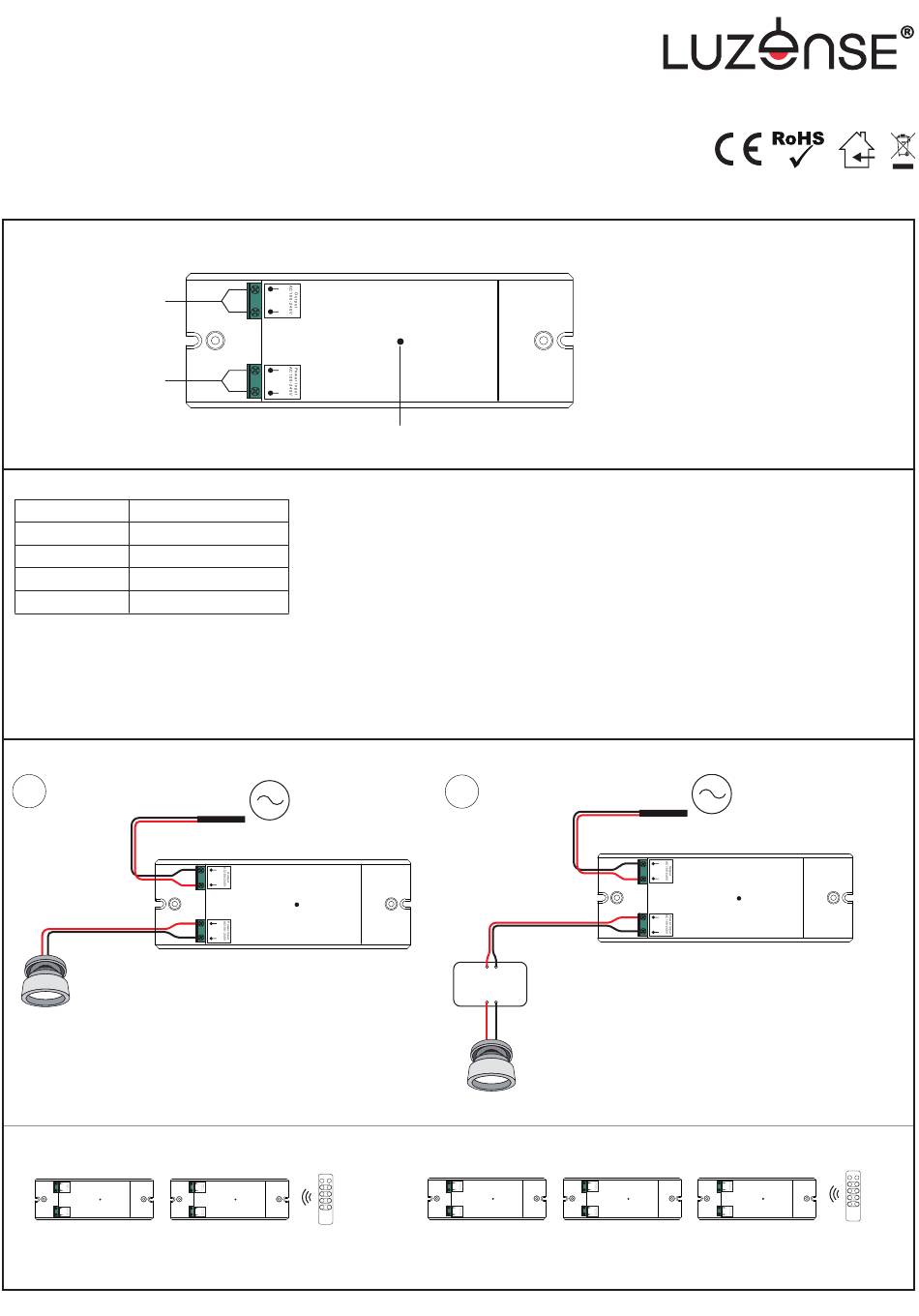

WIRING DIAGRAM

1
WITH DIMMABLE LED LIGHT
Dimmable LED Light
If you use multiple receivers, you have two choices:
Option 1: Have all the receivers in the same zone, like zone 1
L
N AC TRIAC RF Switch
Learning key
N
L
L1 N1
Zone 1
L
N AC TRIAC RF Switch
Learning key
Unilamp Norden AS - Industriveien 11. 1481 Hagan - Norway
N
L
L
AC TRIAC RF Switch
N
N
L
Learning Key:
Paring with RF remote

INSTALLATION

Do wiring according to the connection diagram.

Pair RF Receiver with RF remote:

1. Connect and wire up the RF receiver correctly.
2. Turn on the power and remote.
3. Click the "Learning" key button on receiver.
4a. Immediately click zone number.
4b. Touch the colour wheel on remote.
The connected LED light on the receiver will flicker
twice, indicating a successful pairing.
Note: One receiver can be paired with max. 8 remote
controls.
AC POWER
50/60Hz
L
N AC TRIAC RF Switch
Learning key
N
L
L
N AC TRIAC RF Switch
Learning key
N
L
N AC TRIAC RF Switch
L
Learning key
N
L
RF REMOTE
L L
N AC TRIAC RF Switch N AC TRIAC RF Switch
Learning key Learning key
N N
L L
220-240VAC 50/60Hz 1x(120-288)W IP20
Learning key
2
WITH DIMMABLE LED DRIVER
L1 N1
Dimmable
LED driver
L
LED Light
N AC TRIAC RF Switch
Learning key
N
L
Option 2: Have each receiver in a different zone, like zone 1, 2 or 3
L
N AC TRIAC RF Switch
Learning key
N
L
Zone 1

SAFETY AND WARNINGS

• DO NOT install with power applied to device.
• DO NOT expose the device to moisture.

Delete the pairing:

1. Wire up the RF receiver correctly, and turn power
on.
2. Hold down the "Learning" key button on the
receiver for 4 seconds until the connected LED light on
the receiver flickers twice, indicating it is deleted.
L
N AC TRIAC RF Switch
Learning key
N
L
AC POWER
50/60Hz
L
AC TRIAC RF Switch
N
Learning key
N
L
L
N AC TRIAC RF Switch
Learning key
N
L
L L
N AC TRIAC RF Switch N AC TRIAC RF Switch
Learning key
N N
L L
Zone 2 Zone 3
Learning key
RF REMOTE
