Southern Dia 1386 20T Assembly Instructions

RC447 00 SR Dia1386 20T Mineral Wagon
Assembly Instructions
This kit is designed to make a model of the Southern Dia 1386 20T
Mineral Wagon. Full details of these wagons can be found in ìAn
Illustrated History of Southern Wagonsî, volume 4.
With this kit we offer the guarantee that we will replace any defective
part and we extend this to parts broken or damaged in construction.
We have included a coupler mounting block for Bachman 36027 Mark
2 Couplings NEM shaft (cranked) with pocket.

Helpful Tools/Supplies

Hobby knife with sharp blades
type)
Superglue
Tweezers
.45mm drill

Helpful Hints

Take care removing the parts from the sprues, especially fine parts.
Use good quality styrene cement. You will find both the liquid and
thicker tube type useful in different locations. If you are using the liquid
version take care handling the parts because the plank lines draw the
cement away from the joint very quickly.

Contents of Kit

2 Sides
Floor
Door Bang Sprue
Coupler Mount Sprue
Etched Coupling Hooks
Small Sprues for This Kit
Potystyrene Cement (Tube/Liquid
Small needle nosed pliers
Pin vice
Small file
2 Ends
2 Underframe Sprues
Lift Link Brake Lever Sprue
Whitemetal RCH Buffers
Short length of wire

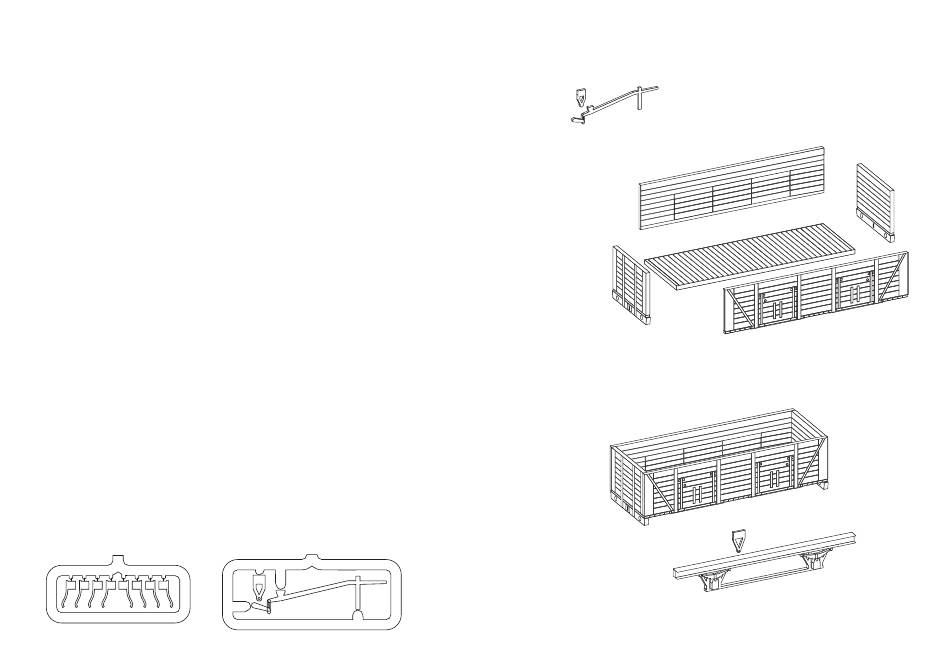

Start by gluing flanged wagon bearings into the axle holes using
superglue.
Then glue the small V hanger on the lift link sprue to the rear of the
lift link brake lever and set aside to set.
Fit the sides and ends onto the floor.
Attach the solebars to the Floor Making sure that they stay upright as
they set. You can either trap the wheels in place or leave them to fit
later. Fit the V hangers from the underframe sprue to the rear of centre
of the solebars.
