Super-thin double scissor lift

Advertisement

YingKou NHT Heavy Machinery Co., Ltd

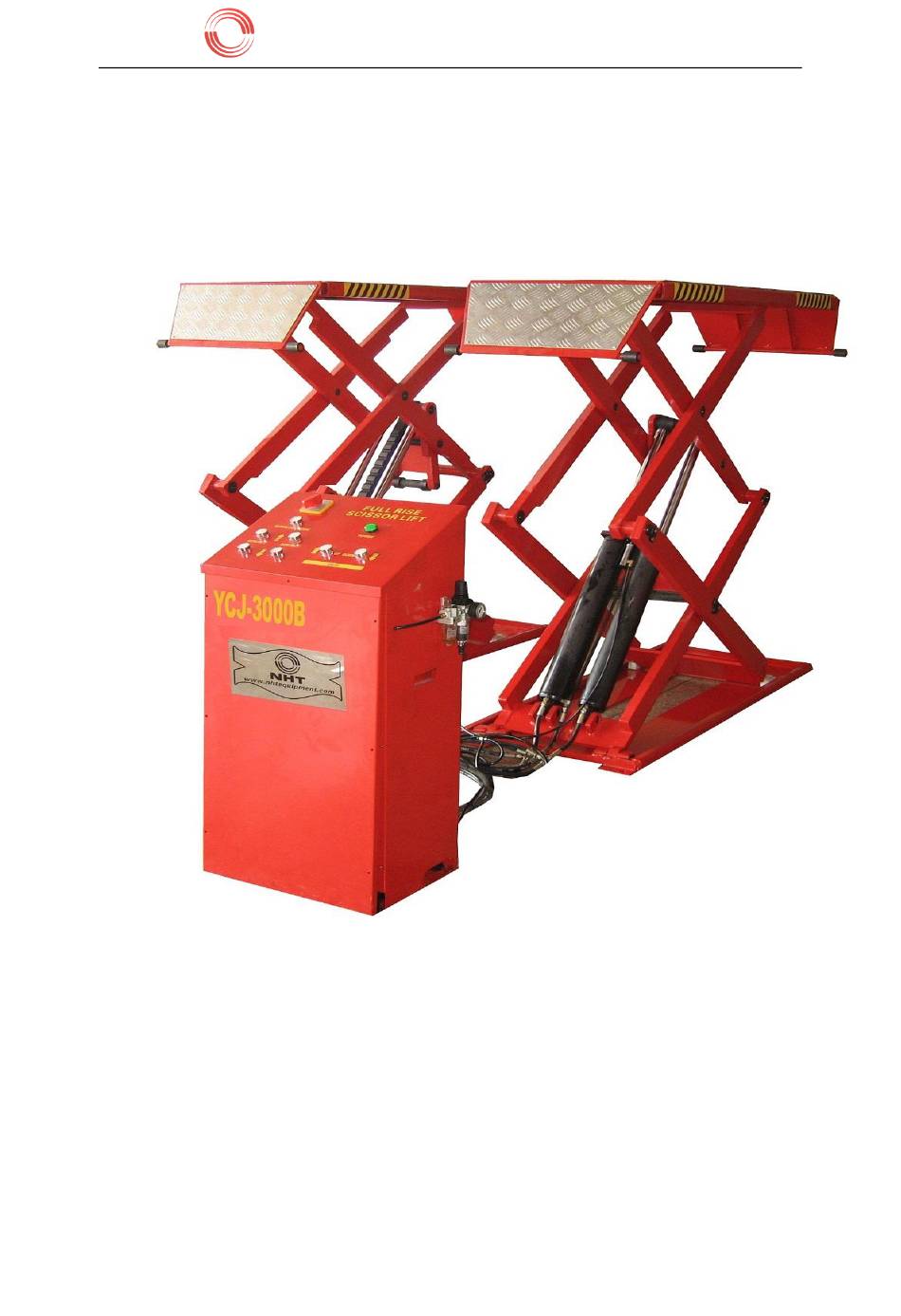

Super-Thin Double Scissor Lift
YCJ-3000B
User Manual
MANUFACTURER:
YINGKOU NHT DEVELOPMENT CO., LTD
31Jinquan Street, Advanced and Fresh Indu
stry Technique District, Yingkou City, Liaoning Province,
P.R.China
PC: 115004
Telephone: +86-411-39202018
Fax: 86-411-39202040
Website: www.nhtequipment.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the YCJ-3000B and is the answer not in the manual?

Questions and answers

Summary of Contents for NHT YCJ-3000B

  • Page 1 YingKou NHT Heavy Machinery Co., Ltd Super-Thin Double Scissor Lift YCJ-3000B User Manual MANUFACTURER: YINGKOU NHT DEVELOPMENT CO., LTD 31Jinquan Street, Advanced and Fresh Indu stry Technique District, Yingkou City, Liaoning Province, P.R.China PC: 115004 Telephone: +86-411-39202018 Fax: 86-411-39202040 Website: www.nhtequipment.com...
  • Page 2 YingKou NHT Heavy Machinery Co., Ltd VERY IMPORTANT INSTRUCTION BEFORE USE THE MACHINE ......2 HYDRAULIC SYSTEM ......................4 PNEUMATIC SYSTEM ......................6...
  • Page 3 YingKou NHT Heavy Machinery Co., Ltd Very Important Instruction before use the machine Once we assembled the lift and fill out the oil tank with hydraulic oil then we must adjust the lift to make sure that all the cylinders have oil and without air inside. Please follow my below steps: 1.
  • Page 4 YingKou NHT Heavy Machinery Co., Ltd 2. Operation without the car: (1) Press “up” to make the lift goes up to middle height around 1200mm. (2) Press “A”+“1” together to make left platform goes up around 5cm. (3) Press “A”+“2” together to make the right platform go up to same level as left platform.
  • Page 5 YingKou NHT Heavy Machinery Co., Ltd 1. HYDRAULIC SYSTEM The hydraulic system is installed in the control box, the pump (see fig.5) presents immediately when opening the front cover of control box. See fig.6-1 connection diagram of motor, integrate block, valve and cylinder, fig. 6-2 hydraulic system principle diagram, adjust “throttle”...
  • Page 6 YingKou NHT Heavy Machinery Co., Ltd 1620mm High pressure rubber pipe Solenoid discharge valve 1620mm High pressure rubber pipe Unilateral valve 1620mm High pressure rubber pipe Motor 215mm High pressure rubber pipe Slipping valve 215mm High pressure rubber pipe Throttle valve...
  • Page 7 YingKou NHT Heavy Machinery Co., Ltd platforms more or less, then cover the gears with iron plate. Third, open the front cover of control box and unscrew (anticlockwise) the golden bolt of the solenoid discharge valve, at the same impulse terminal center thimble, then the platforms will be lifted.
