Meeteasy MVOICE 1010-B Manual

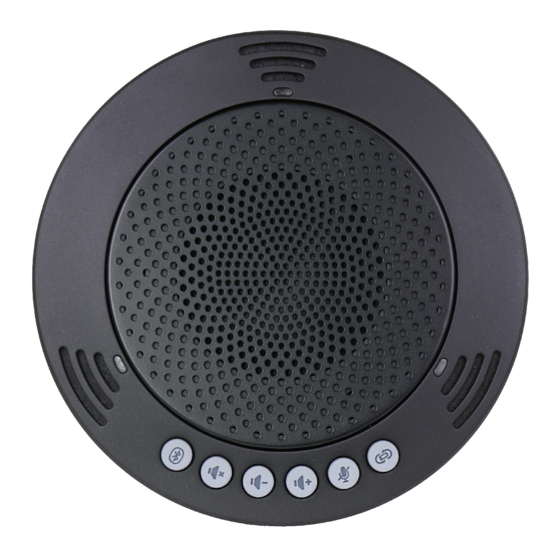

MVOICE 1010-B
USB/Bluetooth Conference Speakerphone
Welcome!
MVOICE series speakerphone is specially designed to fulfill the customers' increasing demand for
web-conferencing calls, hands-free calls and teleconferencing.
MVOICE 1010-B USB/Bluetooth speakerphone can connect to computer with USB cable for audio
and video conference based on internet application, or connect to mobile phone or tablet via
Bluetooth to realize wireless hands-free teleconference.

Highlights and features

Connect to PC via USB.
●
Connect to mobile device via Bluetooth.
●
Connect to external loudspeaker.
●
Three built-in 360° coverage microphone.
●
DSP noise and echo cancellation.
●
Low power consumption.
●
① ②
③ ④
⑤ ⑥

Connecting to PC or laptop

Plug and play, simply connect the MVOICE 1010-B to the USB port on your PC with USB cable.
Support Windows XP, Windows7/8/10,Android and MacOS etc.
Attention: MVOICE 1010-B works excellently in web-conferencing via Skype or other VoIP software.
The PC can automatically recognize the MOVICE device, but you may need to choose M3 USB
AUDIO in application software. For example, you would need to choose M3 USB AUDIO in Skype
audio setting section.

Connect to mobile device

Press and hold (2secs) the Bluetooth button
your mobile device, and select " M3 Bluetooth" from the list of available Bluetooth devices.The
light turns solid blue when the connection is established.
Turn off the Bluetooth function
Press and hold (2secs) the Bluetooth button
⑧
⑦
1. Bluetooh
2. Mute speaker
3. Volume down
4. Volume up
until the light flashes blue. Enable Bluetooth on
and then the Bluetooth function will be closed.
5. Mute microphone
6. Battery level / Choose microphone
7. Speaker
8. Microphones
