EDRO DYNATROL HMI Manual

Touch screen control

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

PROGRAMMING – OPERATION

PARTS REFERENCE MANUAL

HMI

YNATROL

OUCH

CREEN

ONTROL

For DynaWash Washer-Extractors

Includes DynOzone Programming and Operation

HMI Code 1.00

Technical specifications are based on the latest information available

at the time of printing and are subject to change without notice.

The EDRO Corporation

P.O. Box 308

East Berlin, CT 06023 U.S.A.

July, 2009

www.edrodynawash.com

Table of Contents

Need help?

Do you have a question about the DYNATROL HMI and is the answer not in the manual?

Questions and answers

Summary of Contents for EDRO DYNATROL HMI

Page 1 Includes DynOzone Programming and Operation HMI Code 1.00 Technical specifications are based on the latest information available at the time of printing and are subject to change without notice. The EDRO Corporation P.O. Box 308 East Berlin, CT 06023 U.S.A. July, 2009...
Page 2: Table Of Contents
DynaTrol HMI Touch Screen Control TABLE OF CONTENTS Page Machine Configuration Motor Setup Water Level Setup Ozone/Signal Setup Timers Setup Miscellaneous Configurable Parameters Language Setup Programming Wash/Rinse Step Drain Step Extract Step Pause Step Link Program End Program Operation Load and Start a Program...
Page 3: Machine Configuration

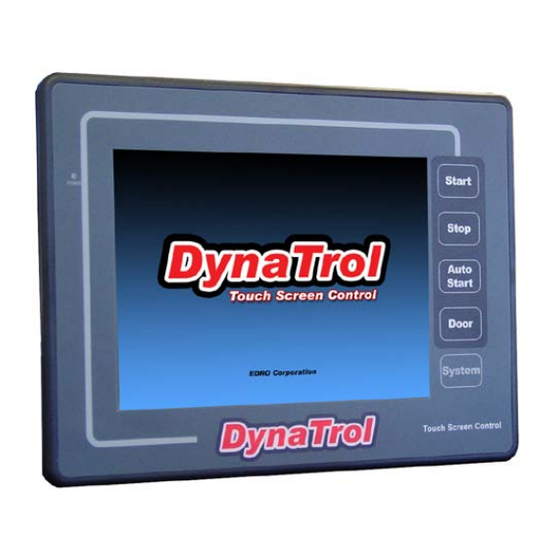

DynaTrol HMI Touch Screen Control The DynaTrol touch screen control features the latest HMI (Human Machine Interface) control technology. It is based on a Programmable Logic Controller using ladder logic code. Use of DynaTrol can be broken down into the following categories: •...
Page 4 DynaTrol HMI Touch Screen Control Select a model: Page 3...
Page 5: Motor Setup
DynaTrol HMI Touch Screen Control The next screens contain information on specific machine parameters which provide unique model characteristics. They are broken down into the following sub sections: • Motor Setup • Water Level Setup • Ozone / Signal Setup •...
Page 6: Ozone/Signal Setup
DynaTrol HMI Touch Screen Control OZONE/SIGNAL SETUP Configures DynOzone system and signals working parameters: TIMERS SETUP Configures values which are affected by timers. Page 5...
Page 7: Miscellaneous Configurable Parameters
DynaTrol HMI Touch Screen Control MISCELLANEOUS CONFIGURABLE PARAMETERS Configures miscellaneous parameters. LANGUAGE SETUP To choose Language, press the Configuration button from the Home screen. Then select the Language button. A level 4 password is required to enter. Select an available language. This will change all screens except technical information screens to the selected language.
Page 8: Programming
DynaTrol HMI Touch Screen Control PROGRAMMING The DynaTrol touch screen allows for the entry of up to 50 wash programs with 25 steps per program, as well as the ability to link programs. Wash programs may contain any of the following: •...
Page 9: Wash/Rinse Step
DynaTrol HMI Touch Screen Control The main wash programming screen contains six operations: • • Wash / Rinse Pause • • Extract Link Program • • Drain End Program Press the blue box button next to the operation you wish to perform. A blue operation box indicates the current step function.
Page 10 DynaTrol HMI Touch Screen Control TEMPERATURE CONTROL Programming a temperature and the Heat button will activate the heating device. This setting will be maintained for the duration of the step. ROTATION CONTROL The step programmable wash cadence is set to a default standard wash rotation. By pressing the Rotation button a screen with six options will appear.
Page 11: Drain Step
DynaTrol HMI Touch Screen Control DRAIN Step A Drain step may contain the following operations: Sewer Drain; Reuse Drain (option); Rotation control. A time may be entered for a drain step. DRAIN CONTROL Select either sewer drain or reuse Drain (option).
Page 12: Pause Step
DynaTrol HMI Touch Screen Control PAUSE Step A Pause step may contain the following operations: Pause; Door Open; Sewer Drain; Reuse Drain (option). If door open is selected, a drain must be selected; LINK PROGRAM Pressing the Link Program button create a program link to any program in memory.
Page 13: Operation
DynaTrol HMI Touch Screen Control OPERATION To begin wash operation, select the Wash Programs button from the home screen. This will load the available wash program screen. An available wash program is one that has already been programmed. Corresponding numbers and program names will appear in the text box when selected.
Page 14: Autostart
DynaTrol HMI Touch Screen Control AUTOSTART The header includes current loaded program and program name. The body contains present system time and settings for AutoStart time. Select a day, hour and minute (AM/PM) and press ENABLE to activate. Press Return to go back to Start screen.
Page 15: Override Mode
DynaTrol HMI Touch Screen Control The Override button allows changes to the following functions: • • water level rotation • • temperature step time • • DynOzone step up or down • • heating end program Access to these functions requires a Level 1 password. The machine is in a pause mode during override function and requires the return button and start key to continue or end program or stop button to abort.
Page 16: Extract Screen
DynaTrol HMI Touch Screen Control EXTRACT SCREEN The header indicates the program number, program name, step number and step status. The body contains bar graphs indicating current water level and current temperature, and indicator for drain type. A display indicates basket speed. The footer indicates step time and program time.
Page 17: Alarms And Warnings
DynaTrol HMI Touch Screen Control ALARMS AND WARNINGS During operation safety alarms will appear if a malfunction occurs. Alarms are fatal and will abort program. Warnings can be reset, by-passed or aborted. Follow screen instructions for appropriate action required. Sample Alarm: E-Stop engaged. Machine sent to safe mode. Reset component.
Page 18: Reports
DynaTrol HMI Touch Screen Control REPORTS The following reports categories are available for viewing the machine's history of operation: • Alarms • Counters • Program History To view Reports, press the Configuration button from the Home screen, then select the Reports.
Page 19: Alarms
DynaTrol HMI Touch Screen Control ALARMS There are three alarm reports: • Current Alarms are active machine alarms. • Alarm History contains the last 100 alarms. • Alarm Frequency details the number of times a particular alarm occurred. Page 18...
Page 20: Counters
DynaTrol HMI Touch Screen Control COUNTERS There are three counters. These cannot be reset. Total Machine Run Time counts hours of machine operation Total Programs Run counts total programs Power Cycles count On/Off. Service Timers count the hours of operation from the last reset. These timers are tied into the service maintenance pop up screens and are re-settable with password security.
Page 21: Program History
DynaTrol HMI Touch Screen Control PROGRAM HISTORY View the last 50 programs run with a time stamp, and the total number of times for each. Program Run Counters may be reset to zero by pressing the program count number and entering a Level 2 password.
Page 22: Technical Information
DynaTrol provides several means for technical assistance and troubleshooting. First, each machine is configured with the Model Number and Serial Number on the Home screen. Use this information whenever contacting EDRO technical support for assistance. To enter DynaTrol’s technical information section, press the Configuration button from the Home screen.
Page 23: Debug Screens
DynaTrol HMI Touch Screen Control DEBUG SCREENS The Debug Screens are for advanced troubleshooting. A level 4 password is required to continue. These screens allow the service technician to view and activate most inputs and outputs for test purposees. Proceed with caution as interlocking safety features are disabled.
Page 24 DynaTrol HMI Touch Screen Control Motor Outputs. Use the electronic toggle switches to activate/deactivate outputs. DynOzone system. Use the electronic toggle switch to activate/deactivate system. Hardware outputs. Use the electronic toggle switches to activate/deactivate outputs. Page 23...
Page 25: Settings
DynaTrol HMI Touch Screen Control SETTINGS There are two setup features for DynaTrol: DynaTrol code and HMI code. To enter DynaTrol code settings, press the Configuration button from the Home screen. Then select the Settings button. A password is not required to continue.
Page 26: Copy Program
DynaTrol HMI Touch Screen Control COPY PROGRAM To speed programming of similar wash programs, select the copy program function. A level 2 password is required. RESET FACTORY PROGRAMS Resets wash programs to factory defaults. A level 2 password is required. This action cannot be undone.
Page 27: Transfer Programs
DynaTrol HMI Touch Screen Control TRANSFER PROGRAMS Transfers wash programs from one HMI control to another. Connect controls with cable prior to selecting Transfer Programs from Settings home screen. Requires separate cable hardware (p/n 6537-16). One control must be set to send and one control must be set to receive.
Page 28: Hmi System
DynaTrol HMI Touch Screen Control HMI SYSTEM Press and hold the SYSTEM function key for five seconds to enter HMI setup settings. SET SYSTEM TIME Sets the current system time for HMI and PLC. CALIBRATE SCREEN Performs a test which aligns the touch screen.
Page 29: Parts Reference
DynaTrol HMI Touch Screen Control PARTS REFERENCE DynaTrol HMI touch screen is available in a 6 inch version and a 10 inch version. 6537-TS6 DISPLAY, DYNATROL (6") 6537-TS10 DISPLAY, DYNATROL (10") 6537-1 POWER SUPPLY, DYNATROL 6537-2 PLC, DYNATROL 6537-3 DIGITAL I/O MODULE, ELC, DYNATROL...
