Summary of Contents for Princess auto LMTDF-46L
- Page 1 LMTDF-46L User Manual...
-
Page 2: Table Of Contents
Table of Content / Inneh llsf rteckning / Innholdsfortegnelse English Safety Instructions Overview Operation 10-14 Troubleshooting Specifications Other... -
Page 3: Safety Instructions
Safety instructions Warning: Read the manual and safety instructions Æ To reduce the risk of electric shock, do not carefully before you start riding the product. Æ remove cover. No user serviceable parts inside. Check for damage and loose parts before use. Æ... - Page 4 Safety instructions Weight and height limit: The longest distance depends on: Max. load: 120 kg Terrain: Riding on a smooth, flat ground Æ Æ increases the total range. Weight: The weight of the driver affects the Æ Battery and charging: distance.
- Page 5 Safety instructions Driving: Ensure you keep a good view of the ´ Do not under any circumstances use the the surroundings. ´ product if you are likely to lose control, collide, Suggest se sports clothes when riding the ´ fall or cause any other harm. Ensure that the product, it helps you handle steering and falling product is in good condition before you use it.
- Page 6 Safety instructions engage in any other activities. Don’t drive in rain or on wet Do not push the driver to gain extra speed. Æ surfaces. Do not drive the product in dim light or dark Æ Don’t drive on gravel road or in a places to avoid an accident.
-
Page 7: Overview

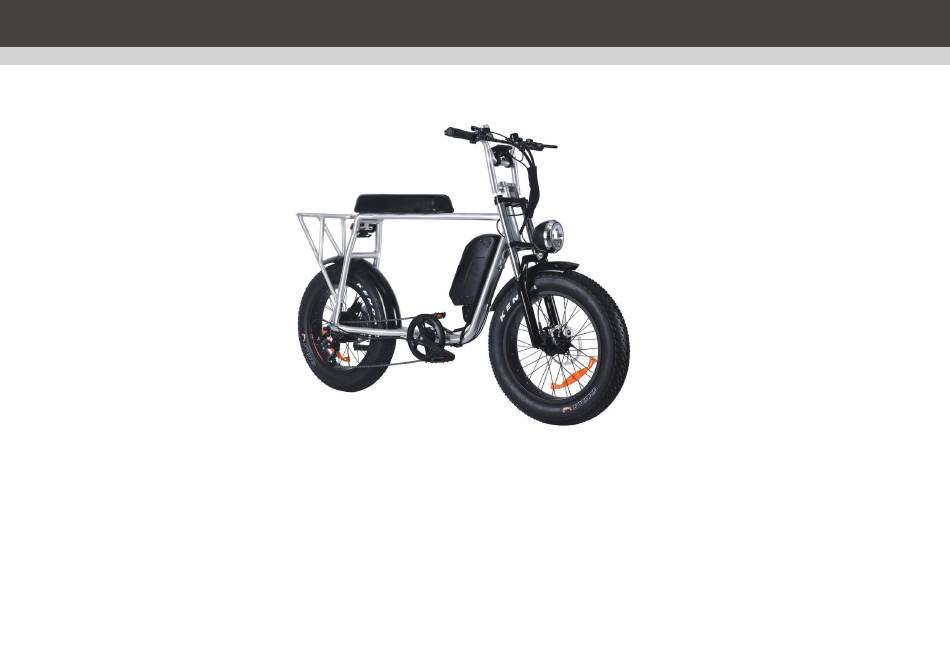

Overview Bike: 1. Throttle 2. Throttle lock 3. Dash board 4. Bell 5. Power/Mode button 6. Up button 7. Down button 8. Brake 9. Head light 10. Front wheel 11. Back wheel 12. Seat 13. Back light 14. Kick stand 15. - Page 8 Overview English...
-
Page 9: Operation
Operation Assemble the Bike 2. Install front wheel 1. Install the handle bar. ´ Use the Axle to fixed the front wheel ´ Insert front fender and make sure it is in place. ´ Tighten the handle bar. ´ Tighten the screw on one side of the axle. ´... - Page 10 Operation Install front fender Install Front light ´ Before assemble, prepare below parts: Install pedals ´ Install the pedals in place by securely tightening with a 15mm ´ Loosen the screws on the front light. wrench. ´ Put the lamp shade C and holder A into the front light and fixed Note: “L”...
- Page 11 Operation ´ Put the light with holder A on the front suspension bar, and Battery installation and remove fixed with holder B. . ´ The battery has been installed at begining. Note: Put the holder A outside and holder B inside. ´...
- Page 12 Operation 5. Pedal assistant Steer the bike: This vehicle has pedal assistant. When you ride the pedal, 1. Press the power button on the battery to turn on the the motor will start work automatically to bring you faster battery power. speed while pedaling.
- Page 13 Operation Battery indicator: Maintenance: ´ The Battery has 4 lights to indicate different battery level: 1. Wipe the exterior with a damp sponge. Note: Do not use any abrasive cleaning or scouring Indicate 4 lights The battery level is good. products.
-
Page 14: Troubleshooting
Troubleshooting Problem Cause Solution The bike is smelling The battery is damaged or overheated. Do not touch the battery. Bring the bike to a burned or is very hot. service centre. The battery is leaking. The battery is damaged or overheated. Do not touch the battery or the leakage. -
Page 15: Specifications
Specifications Product name EVB 700 Power of motor 500 W Battery type Lithium battery Battery voltage 48 V Battery capacity 10 Ah Battery charging time 5 hours Maximum distance Up to 45 km Maximum speed Up to 25 km/h Maximum climb angle 19°... -
Page 16: Other
Other Copyright: Statement: This manual is the copyright of CI no 556520-4137. No part This manual does not provide any warranty or related of this manual may be revised, copied or transmitted in any declarations. All information in this manual including the way without written permission from CI no 556520-4137.
