XIM NEXUS
USER GUIDE
http://xim.tech

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NEXUS and is the answer not in the manual?

Questions and answers

Summary of Contents for Ximo NEXUS

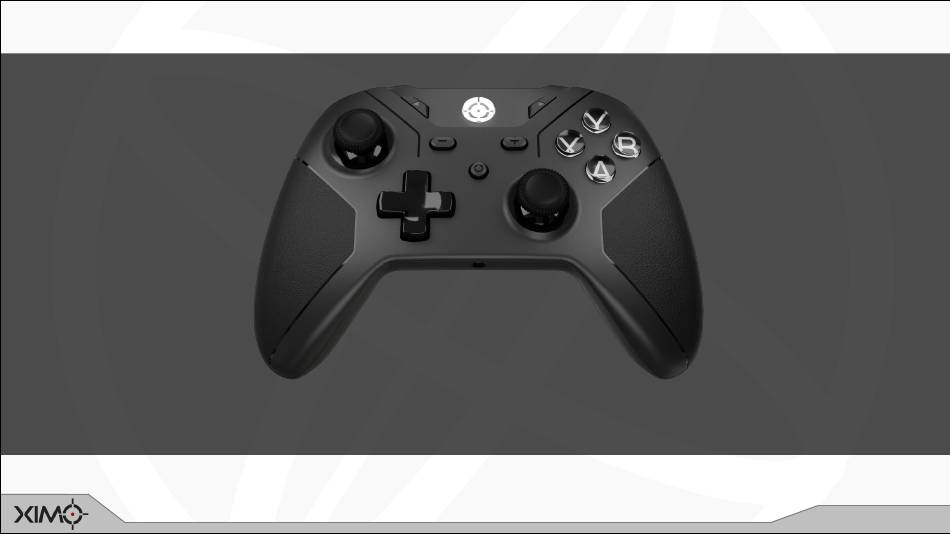

  • Page 1 XIM NEXUS USER GUIDE http://xim.tech...
  • Page 2 Xbox Series X | S, Xbox One, PlayStation 4, and PC! Thank you for your purchase of XIM NEXUS! Through proprietary aim translation technology, XIM NEXUS is able to provide a level of motion aim precision unachievable by any other gaming controller available.
  • Page 3 Press Guide settings Xbox steps shown. Additional steps for and PC. For more in-depth information about everything related to XIM NEXUS, please refer to this User Guide and also visit our Community Support Forum. http://xim.tech...
  • Page 4 XIM NEXUS Topics Quick Links to Topics Unboxing Editing your Config Advanced Triggers: ADS Sync Inputs and Ports Editing Experience True Stick Curves Charging your Controller Hip vs. Aim Down Sight ADS Activation Delay Turning On and Off Editing Pages Overview...
  • Page 5 XIM NEXUS Unboxing Your XIM NEXUS comes with several parts XIM NEXUS Controller XIM NEXUS Wireless Adapter Cables Referred to as Controller throughout Referred to as Adapter throughout Four (4) cables are included: this manual. this manual. The Adapter is required to...
  • Page 6 XIM NEXUS Inputs and Ports Your XIM NEXUS buttons, sticks, triggers, and ports Get to know all the inputs ports of your Controller. PREVIOUS NEXT GUIDE PLUS MINUS LEFT ABXY STICK RIGHT LEFT RIGHT ENGAGE STICK TRIGGER TRIGGER USB C...
  • Page 7 XIM NEXUS Charging Charging your Controller Using the included cable, connect your XIM NEXUS to a 5V wall adapter or computer. While charging, light will slowly When charged, light will slowly pulse YELLOW. blink GREEN. The battery will take around 3 hours to fully charge.

  • Page 8: Turning On/Off

    XIM NEXUS Turning On/Off Turning your Controller On and Off Press and hold GUIDE until the Controller turns ON (around 2 seconds). It will pulse WHITE when on. Press and hold GUIDE until the Controller turns OFF (around 5 seconds). The light will turn off or display charging status plugged in.

  • Page 9: Upgrade Firmware

    Controller will display BLUE when in FLASH MODE. Occasionally your XIM NEXUS Adapter may have also have a firmware upgrade available. The process to upgrade is very similar to Controller except to enter FLASH mode, PRESS and HOLD Adapter’s button while plugging into your computer’s USB port.
  • Page 10 XIM NEXUS Xbox Connection Connecting to your Xbox Series X | S or Xbox One Use on an Xbox REQUIRES a genuine Microsoft Xbox Series X | S or One controller be connected to Adapter at all times. STEP 1 Ensure Controller and Console are powered ON...
  • Page 11 XIM NEXUS PS4 Connection Connecting to your PlayStation 4 Use on a PlayStation 4 REQUIRES a genuine Sony PlayStation 4 controller be connected to Adapter at all times. STEP 1 Ensure Controller and Console are powered ON STEP 2 Connect your PlayStation 4 controller to Adapter using the supplied USB cable...

  • Page 12: Connecting To Your Pc

    (about 3s) STEP 3 Scan for Bluetooth devices on your PC STEP 4 Select XIM NEXUS when it shows on the list If your PC doesn’t have Bluetooth, or, if your PC’s has poor Bluetooth performance, you can use Adapter on your PC. Adapter doesn’t require a console controller be connected to it.

  • Page 13: Classic Mode

    XIM NEXUS Classic Mode Controller Classic Mode When Controller is turned on (or if it has no Configs on it), it will automatically be in Classic Mode. You will know you are in this mode if your Controller is pulsing WHITE.
  • Page 14 XIM NEXUS Connect To Manager Connecting to Manager XIM NEXUS Manager is used to fully configure the Controller. Download “XIM NEXUS Manager” for Android from their app stores. For the version, download from xim.tech. Make sure your device’s Bluetooth radio is ON. Do NOT pair using your device’s system pairing interface.
  • Page 15 Your Config will be added to your Controller (around 20s). XIM NEXUS’ input translation technology requires that your game’s sensitivity is set to MAXIMUM, HIGH, “INSANE”, etc. Your game may also need additional settings. If not set, you aim will not be optimal.

  • Page 16: Heads Up Display

    XIM NEXUS Heads Up Display The Heads Up Display (HUD) shows the current status of your Controller. Use it to edit, add, and delete your Configs. CONNECTION BATTERY WIRELESS STATUS LEVEL PERFORMANCE EDIT ADDITIONAL CURRENT OPTIONS CONFIG (NEW, DELETE, etc.)

  • Page 17: Edit Config

    XIM NEXUS Edit Config Editing your Config All Configs start with default values, but everyone’s preferences are different. You will want to edit your Config. STEP 1 Load the game you want to play. Make sure game’s: aim sensitivity is MAXIMUM, and...
  • Page 18 Standard vs. Expert Editing Experience Editing Experience XIM NEXUS Manager offers two different types of Config editing modes: Standard and Expert Standard Editing: The default editing experience. Only the most common settings are available. This mode is intended to be used by beginners.
  • Page 19 XIM NEXUS Hip VS. ADS Hip vs. Aim Down Sight (ADS) Most shooters have the ability to Aim Down Sight (ADS) (also called “Zoom” or “Scoped”). When not in ADS, it’s called Hip Aim. Typically, ADS is activated using the LEFT TRIGGER on most games.
  • Page 20 XIM NEXUS Edit Overview Edit Config Page Overview Config editing is divided into sections. Changes to settings occur on Controller in real-time. These sections include Hip and Aim Down Sight (ADS) settings and button mappings (bindings). You will only see an ADS section if your game has an ADS mode that has different aiming behavior than Hip.
  • Page 21 XIM NEXUS Stick Aim Adjusting Stick Aim Sensitivity The first thing to do when editing your Config is to get your stick aim sensitivity to feel correct. Your in-game stick sensitivity should already be set to MAXIMUM. You reduce that speed here.
  • Page 22 XIM NEXUS Motion Aim Adjusting Motion Aim Sensitivity Motion aim provides the gamer with the ability to constantly and rapidly correct their stick aim with motion. It can be used for micro adjustments to your stick aim, or your primary precision aim where the stick is used for coarse aim. Motion aim is combined with stick aim (it is additive).

  • Page 23: Motion Smoothing

    XIM NEXUS Motion Smoothing Tuning Motion Aim Smoothing XIM NEXUS includes a sophisticated Motion Engine to enable the gamer to tune motion aim response to their preference. Several presets are included as well as the ability to customize behavior. ADJUST SMOOTHING:...
  • Page 24 XIM NEXUS Custom Smoothing Custom Motion Aim Smoothing Custom smoothing enables you to further adjust motion aim beyond the supplied presets. CHOOSE MOTION SMOOTHING SETTINGS: There are four settings for customizing motion smoothing. Start with all settings at 0 and then adjust one at a time...
  • Page 25 XIM NEXUS Motion Activation Motion Aim Activation Motion aim can be activated in different selectable ways. As a gamer becomes more proficient with motion, they may choose to keep it activated at all times while in game. CHOOSE MOTION ACTIVATION METHOD: There are four options for activating motion based on your personal preference.

  • Page 26: Button Mapping

    XIM NEXUS Button Mapping Changing Button Mappings Button mappings allow you to remap almost every button to a different action (such a pressing a console button). They are also used to declare which buttons are used for certain actions in game (the role such as Aim Down Sight).
  • Page 27 In this example, a partial (light) press of the trigger can be used to enable motion before firing occurs. In this case, 50% XIM NEXUS trigger pull maps to 0% console controller trigger (use the slider to set to 0).
  • Page 28 XIM NEXUS Advanced Triggers: Quick Pull Quick Pull In addition to the flexibility provided by Trigger Mapping, you can also increase your trigger speed using Quick Pull. Quick Pull makes it so that you don’t have to fully release your trigger in order to start and complete the next pull. Combine this with hair triggers to greatly increase your firing speed.
  • Page 29 This will typically be mapped to 100% trigger pull of the console controller. However, most games switch to ADS before 100% so there will be a small period of time through your trigger pull where your game is in ADS before your XIM NEXUS. Generally, most users won’t notice this, but here is how you would better synchronize your ADS trigger with the game.
  • Page 30 Stick Curves True Stick Curves XIM NEXUS has the ability to provide true customizable stick aiming curves through its proprietary aim translation technology. Meaning, it’s not applying aim curves on top of the game’s existing curves (producing incorrect and unintuitive aim behavior like other controllers).
  • Page 31 XIM NEXUS ADS Delay ADS Activation Delay Some games that support aiming down sight will switch to that mode after time delay (such as until a zoom-in animation completes). These settings allow you synchronize your XIM’s ADS transition exactly to that of game’s current aiming state.

  • Page 32: Options Menu

    XIM NEXUS Options Menu Additional Options Menu Access the additional options menu for Loading Configs, Deleting Configs and Global Settings (includes Calibration). http://xim.tech...

  • Page 33: Auto Calibration

    Auto Calibration The XIM NEXUS Controller, like all game controllers, contains analog devices and sensors that require calibration. Your controller comes pre-calibrated so you should rarely to never have to calibrate. But, you are given access to all aspects of calibration so that, if you choose, you can further customize and refine your experience.

  • Page 34: Manual Calibration

    XIM NEXUS Manual Calibration Manual Calibration After Auto Calibration, you can make additional changes such as modification of auto calibrated values and adjustment of stick and trigger deadzones to your preference. The Manual Calibration interface is to the right of Auto Calibration in Manager.
  • Page 35 Customizing Classic Mode Classic Mode makes your XIM NEXUS act like a regular console controller to make it easier to do tasks outside of the game you are playing (such as navigating menus). Classic Mode can also be used in games where you prefer standard controller behavior as well. Manager offers...
  • Page 36 XIM NEXUS Adapter Pairing Controller Pairing to Adapter If Controller is ever paired directly to a PC, you can re-pair it to your Adapter with these steps. NOTE: Initiating pairing removes Controller’s existing pairing. STEP 1 Start with both Controller and Adapter OFF and then turn both ON...
  • Page 37 If you are running Manager on a PC, Manager features a real-time controller broadcast visualization overlay you can use in streaming tools like OBS and XSplit. The overlay is used to show your viewers how you are gaming with your XIM NEXUS Controller.

  • Page 38: Wireless Performance

    XIM NEXUS Wireless Wireless Performance Like all wireless devices, XIM NEXUS is susceptible to poor wireless conditions and environments. Use these tips to ensure you have optimal wireless performance. TIP 1 Plug Adapter in the front of your console directed towards Controller...
