U-Line BOOT-BOY Quick Start Manual

H-9408

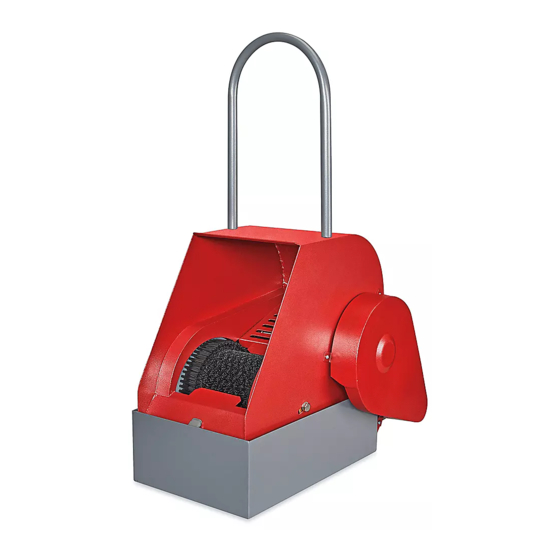

BOOT-BOY AUTOMATIC
®
BOOT CLEANER
IMPORTANT! Warning label is located on top
of machine. Keep children from playing with
machine and keep long laces and other loose
items away from brush.

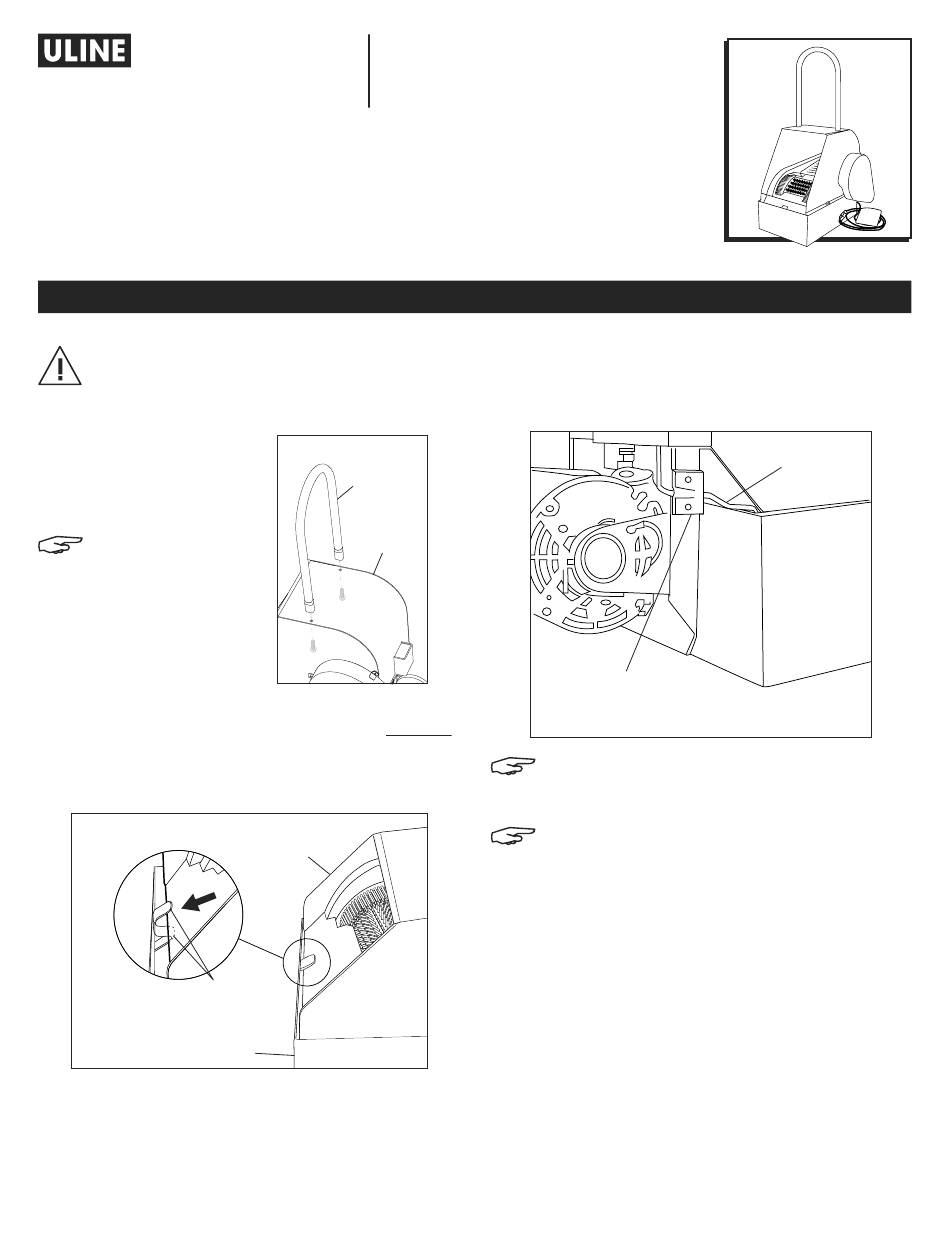

1. Assemble handle onto
main frame. (See Figure 1)
2. Place water pan in area
where unit will be used.
NOTE: Unit can be
used wet or dry. If
operating wet, fill pan
with water or other
cleaning solutions to
water line marked on
inside of pan. If using
dry, leave pan empty.
3. Pick up main frame. While placing into water pan,
ensure front edge of main frame is placed between
the two stop lugs on front of pan. (See Figure 2) Rest
back of frame with pivot notches onto pivot bar of
pan, ensuring unit will rock back and forth properly.
Figure 2
Stop Lugs
Water Pan
PAGE 1 OF 6
1-800-295-5510
uline.com

ASSEMBLY

Figure 1
Handle
Main
Frame
Main Frame
4. Plug machine into grounded power outlet.
5. Ensure switch arm is contacting top back edge of
pan. (See Figure 3)
Switch Arm
Holding Bracket
NOTE: Switch arm activates microswitch to turn
on motor when handle is pulled forward.
It shuts off motor when handle is released.
NOTE: If switch arm becomes bent from
shipping or usage, minor adjusting may be
needed for it to work properly. Use pliers and
bend switch arm up or down until proper
function position is achieved.
Para Español, vea páginas 3-4.
Pour le français, consulter les pages 5-6.
Switch Arm
Figure 3
0221 IH-9408
