The Universe
User Guide
Awaits.
eVscope 2

Advertisement

loading
Need help?

Need help?

Do you have a question about the eVscope 2 and is the answer not in the manual?

Questions and answers

Related Manuals for Unistellar eVscope 2

Summary of Contents for Unistellar eVscope 2

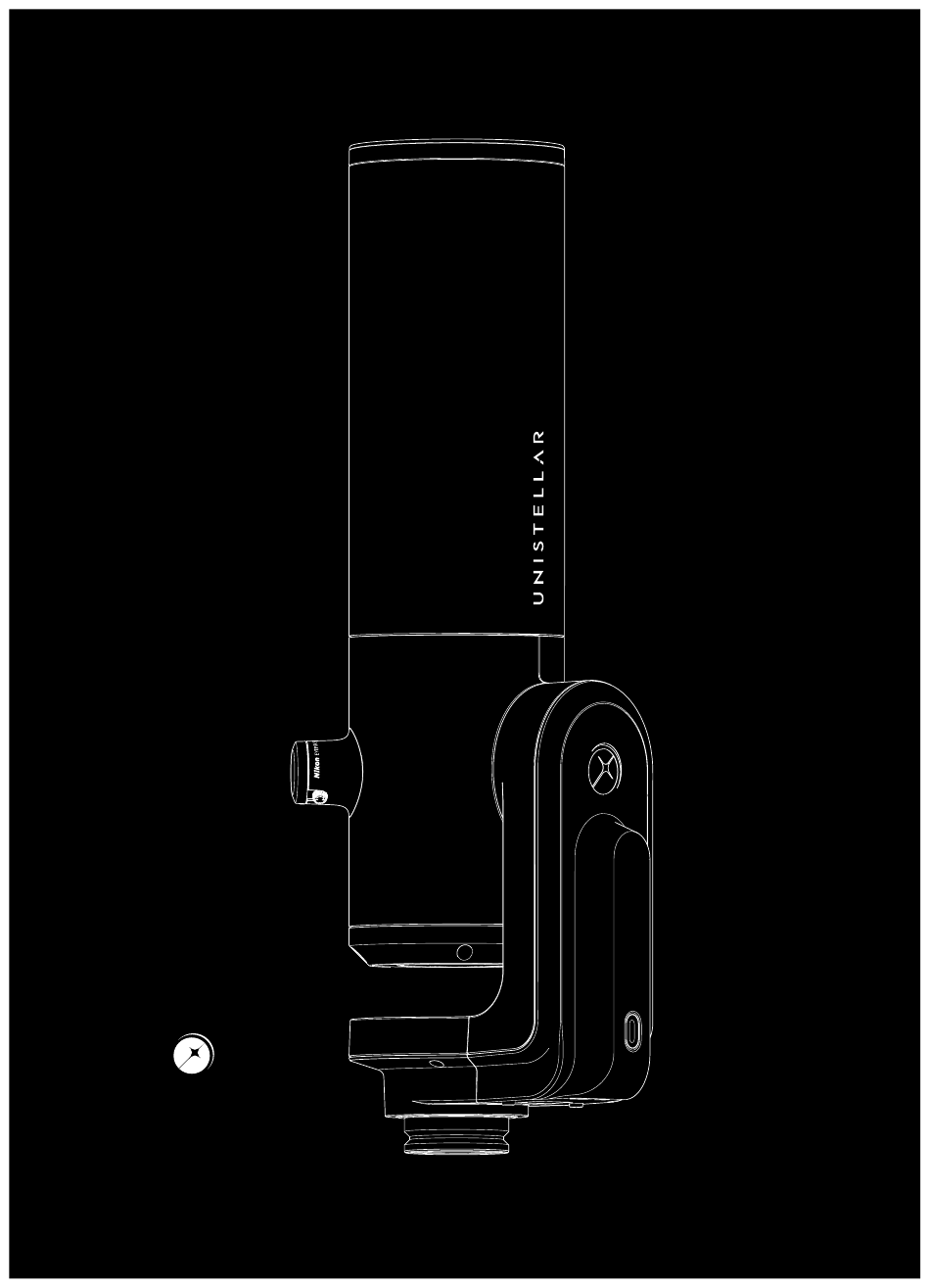

  • Page 1 The Universe User Guide Awaits. eVscope 2...
  • Page 2 This guide will ensure you properly set up your telescope and ob- serve in good conditions, to get the most out of your eVscope 2, including beautiful images. Is it organized ? In this user guide, we will walk...
  • Page 3 Summary User Guide...
  • Page 4 Introduction : Unistellar’s Mission Before you start : Everything you need to know about the eVscope 2 Download and install the Unistellar App..................Your fi rst deep-space exploration..................... 1. Set up and level the tripod 2. Install the eVscope 2 and power it on 3.
  • Page 6 Introduction Unistellar’s Mission Unistellar was founded in 2017 by two former PhD students of the 2018 Physics Nobel Prize winner, a visionary industrial engineer, and a world- famous Californian astronomer. All of them share one common desire: to make astronomy more accessible and exciting for everyone - and ultimately to bring the Universe closer.
  • Page 7 WARNING...
  • Page 8 FORBIDDEN ! Never use an eVscope 2 to look at the Sun without an adapted fi lter ! Looking at or near the Sun will cause irreversible damage to your product. Do not point the telescope at or near the Sun.
  • Page 9 BOX CONTENT eVscope 2 Bahtinov mask (located in the cap cover) Tripod + cylindrical black foam to keep in case of return Power supply with adaptable plugs (EU, USA, UK, JP) Quick start guide User guide Accessories box with tools Tripod Tool 1 (Socket wrench 8mm) / Tripod Tool 2 (Allen Key M5.5) Tripod Tool 3 (Allen Key M4) /...

  • Page 10: Before You Start

    The Enhanced Vision (patented technology) and the Autonomous Field Detection. Learn more about these features in section 4 - Get the most out of your eVscope 2. When you receive your package and open it up, you will see a cylindrical black foam with a red tape placed in between the mirror mount of your Unistellar telescope and the onboard computer.
  • Page 11 How to charge the battery ? Use the enclosed USB-C charging cable and power plug adapters to plug your eVscope 2 into a power outlet. A power bank can be used to charge your eVscope 2 as well (we recommend a USB 5V).
  • Page 12 The LED above 40°C (104°F) to enhance the battery life. Where is the LED located on the eVscope 2 ? The LED is on the Power / ON button. What does each color mean? Purple: eVscope 2 software ON or OFF (for a few...
  • Page 13 The backpack What is the eVscope 2 Backpack ? The eVscope 2 backpack is constructed with tough, reinforced fabric and padded with high-density foam to protect your eVscope 2. Warning : The backpack is not waterproof. Backpack’s characteristics : • Made out of robust materials as similar to leading camera or computer bags •...
  • Page 14 Download & install the Unistellar App The App is your portal to the Unistellar experience and the community of users. You will be able to: - Discover recommended objects for you to explore with your eVscope 2 - Share your observations with other members of the community, and discover theirs - Stay informed of all the latest space-related news and scientifi...
  • Page 15 Scan this QR code to be redirected to a video on how to set up your eVscope 2 Set up and level the tripod Warning : The tripod’s legs screws could have loosened during shipment or regular use.
  • Page 16 Install the eVscope 2 and D - Start the eVscope 2 by pressing the ON button for 2 seconds. The LED is fi rst purple power it on then red. A - Pick up your eVscope 2, and cradle the tube and base in your arms and hands.
  • Page 17 Connect your eVscope 2 to the Unistellar App, using WiFi Launch the Unistellar App, and authorize the App to access your WiFi settings (or acti- vate your WiFi on your device). The App will automatically detect your nearby eVscope Select your eVscope 2 from the list of network...
  • Page 18 Press the Autonomous Field Detection (AFD) button and the eVscope 2 will instantly recognize objects in its fi eld of view. Choose the fi rst recommended object in the catalog of the App and hit the Go to button, it will take you directly to the object.
  • Page 19 If there is a diff erence in temperature between the outside and the room your eVscope 2 is stored in, turn on your eVscope 2 and put it outside about 15-30 minutes prior to your observation, depending on the temperature diff erence.
  • Page 20 Go to the fi rst recommended star in the catalog as it will be the brightest available to you. Separate the Bahtinov mask from the cap cover. Place it on top of the eVscope 2 tube, and turn gently as needed to fi t it onto the tube.
  • Page 21 How to take a dark frame ? To take a dark frame, keep the cap cover on the eVscope 2 and make sure you are in dark surroundings. Don’t expose the eVscope 2 to direct streetlight.
  • Page 22 Collimation If you are having diffi culty achieving focus as outlined in previous sections, or if you are struggling to achieve a high-precision focus using your Bahtinov mask, your eVscope 2 may require collimation. What does collimation mean? Collimation refers to the process of aligning the optical axis of the mirror (located at the bottom of the tube) and the sensor (located at the top of the tube).
  • Page 23 Move toward a target and enjoy the view. Be careful with the screws. If you are a novice, take your time and go step by step. Scan this QR code to be redirected to our video on how to collimate your eVscope 2...
  • Page 24 What is AFD ? Autonomous Field Detection (AFD) is an algorithm that uses an internal map with tens of millions of star coordinates to accurately identify any object in the eVscope 2 fi eld of view. What does the AFD do ? The AFD points at objects in the night sky automatically, making it easier to fi...
  • Page 25 Enhanced Vision while using. Software The eVscope 2 software uses its on-board computer to stack and process frames (dark and background removal, shift adding and stacking). It produces an improved image and projects it in real time with a derivation algorithm that compensates for the earth movement / rotation.
  • Page 26 They can’t be seen better than with a classical telescope, except for Neptune and Uranus which are very far and fainter. Use the Go to button to point the eVscope 2 at the celestial object. Gain (dB) and exposure time (ms) will be automatically adjusted in order to view the Moon or planets.
  • Page 27 5 - 20 GPS and Localization You can use the eVscope 2 on a balcony or in a garden, in the city or in the country. We recommend at least 45 degrees of open sky. Diff erent factors come into play based on your location which can aff ect the quality of observations, for example: quality of the night sky, position in the Bortle scale, light pollution, atmospheric interference, altitude, and position compared to the equator.
  • Page 28 The data collected by the eVscope 2 at each observation is stored in its memory and includes raw data (frames) of the objects observed in Enhanced Vision or during Science Missions, as well as metadata (geolocations, timestamps).
  • Page 29 Click on ” Submit ” and the eVscope 2 LED will turn from red to a blinking bright yellow ( the eVscope 2 is trying to connect to the selected network ). Your device will no longer be connected to the eVscope 2 and information like the name or storage usage won’t be accessible in the app.
  • Page 30 Detecting an asteroid’s occultation entails observing an asteroid passing between a bright star and your position on Earth. The blinking of the star recorded by the eVscope 2 provides valuable data so astronomers can learn more about the trajectory, size, shape and composition of an asteroid.
  • Page 31 Operator in the user tab of the App. Remotely sharing your observations Your smartphone needs to be connected to your eVscope 2 via WiFi ; you can use your cellular connection (3G/4G/5G) to stream on the Internet at the same time. You can also plug your smartphone to your computer to share your smartphone’s screen on it and to...

  • Page 32: Storage And Maintenance

    Travelling with the eVscope 2 If you need to travel on a plane, do not put your eVscope 2 in the backpack as a checked luggage ; it might be damaged and it won’t be covered by the warranty. Use a rigid case to make sure your Expert users recom- eVscope 2 stays perfectly safe.

  • Page 33: Troubleshooting

    - Your OS that has WiFi preferences - A communication error between the eVscope & the phone There is no way to boost the WiFi signal of the eVscope 2. Try using an extender with the same SSID as the eVscope 2 to extend the range.
  • Page 34 If you experience connectivity issues, turn off the "auto-connect" options on the other known networks. Issue with the focus : If you do not see the diff raction pattern (the star symbol), manually adjust the exposure time and gain using the Bahtinov mask. Can’t take a dark frame : Try again in darker surroundings and make sure your telescope was left outside for 15 minutes.
  • Page 35 Let's keep in touch Need help ? Website : unistellar.com (scan this QR code) Contact support : support@unistellaroptics.com FAQ : help.unistellar.com @unistellar @unistellar @unistellarscope @unistellarscope...

  • Page 36: Need Help

    Need help ? Glossary Altazimuth mount : Two-axis mount for supporting and rotating an instrument about a vertical and a horizontal axis. Asteroid : A small body made of rocks and metals with a size varying between cm and km. Asteroids are the result of fragments of rocks that do not have to be agglomerated for an ancient planet due to Jupiter’s infl...
  • Page 37 Newtonian telescope : Optical device with 2 mirrors with a "refl ective" lens (refl ects light). Occultations : Phenomenon by which a star (planet, moon, star, asteroid) is totally or partially masked by another star which passes between it and the observer. Solar-system : The planetary system to which the Earth belongs.

  • Page 38: Safety Instructions

    Furthermore, do not expose your eVscope 2 at temperatures above 40°C or below 10°C,the performances can be compromised by extreme temperatures. Your eVscope 2 is fragile, do not let it drop or fall. In case of shocks, it can be perma- nently damaged.
  • Page 39 Declarations Hereby, Unistellar SAS declares that the radio equipment type eVscope 2 is in compliance with Directive 2014/53/EU, the FCC 47 CFR Part 15 and the ICES-003 / NMB-003 standards. The full text of the declarations of conformity is available at the following internet address: unistellar.com.
