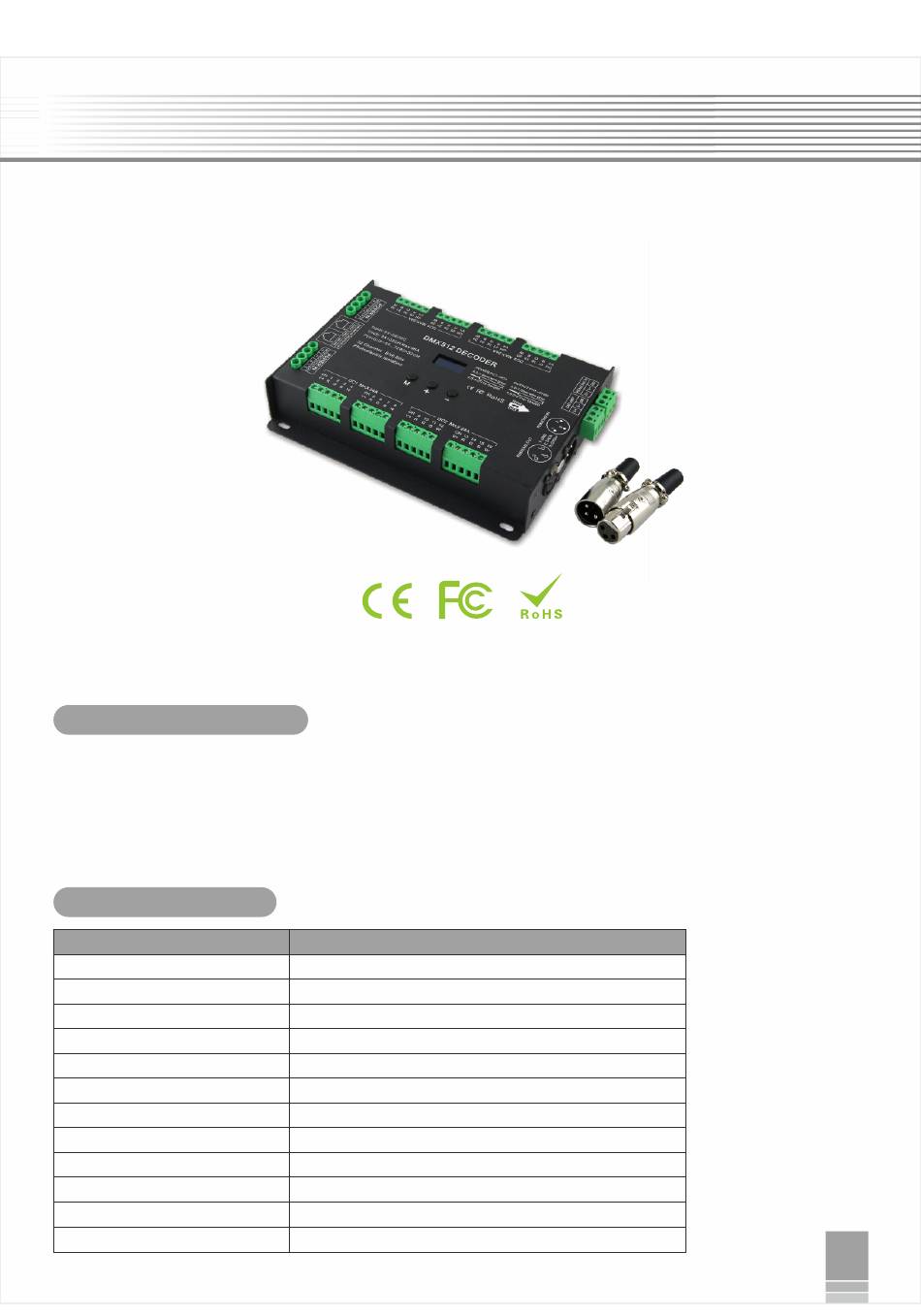

32CH DMX512 Constant Voltage Decoder
32CH DMX512 Constant Voltage Decoder
(Please read through this manual carefully before use)
1、Brief Introduction
Welcome to use the DMX512 Constant Voltage Decoder, designed for Hi-power multiple channels
application, which is developed only for constant voltage LED lamps. It adopts advanced micro-
computer control technology to transfer DMX512/1990 signal to PWM signal. 32 channels output,
Max. 3A each channel, up to 2304W output power, 65536 gray scales, workable for single color, color
temperature, RGB and RGBW led lamp.
2、Specifications
Model
Input voltage
Max load current
Max output power
Output scale level
Input signal
Output DMX channel
Output frequency
Decode channel
DMX512 socket
Control mode
Dimension
Weight (G.W)
User  Manual
Update Time: 2019.4.10
32CH DMX512 Decoder
DC5V-24V
，Max 96A
3A×32CH
480W(5V)/1152W(12V)/2304W(24V)
256 levels(8bit)/65536 levels(16bit)
DMX512/RDM
Constant Voltage PWM×32CH
1K 、 2 K、4K、8K selectable
32CH
XLR-3R/ RJ45/ Terminal block
DIM /CT /RGB /RGBW 4 modes switch
L195 X W145 X H38(mm)
810g
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the DMX512 and is the answer not in the manual?

Questions and answers

Summary of Contents for showtech DMX512

  • Page 1 Update Time: 2019.4.10 1、Brief Introduction Welcome to use the DMX512 Constant Voltage Decoder, designed for Hi-power multiple channels application, which is developed only for constant voltage LED lamps. It adopts advanced micro- computer control technology to transfer DMX512/1990 signal to PWM signal. 32 channels output, Max.

  • Page 2: Basic Features

    32CH DMX512 Constant Voltage Decoder 3、Basic Features 1. Easy operation with OLED screen and touch buttons. 100% 2. 8bit (256 levels)/16bit (65536 levels) grey level optional. Gamma 3. Support 3 kinds of DMX ports with signal isolation function: value 3-pin XLR, RJ45 and green terminal (with signal amplifier function).
  • Page 3 32CH DMX512 Constant Voltage Decoder 6、Conjunction Diagram 1. Connect to DMX system: DMX IN PowerSupply DMX OUT PowerSupply DMX IN PowerSupply DMX OUT PowerSupply 2. Work with RDM controller: PowerSupply PowerSupply DMX IN DMX OUT PowerSupply PowerSupply DMX IN DMX OUT PowerSupply Note: RDM controller can only be used normally with 3-pin XLR terminals.
  • Page 4 32CH DMX512 Constant Voltage Decoder 7、Operating instructions OLED screen interface: 1. Lock screen interface： No operation after 10 seconds Press "M" key, switch entries. A:001B:8F:1.0 into the lock screen interface, Press "+" or “-" key, parameter adjustment. M:RGBWC:1.8 * display only has set up a good Exit: back to previous page.
  • Page 5 32CH DMX512 Constant Voltage Decoder Address setting table RGBW RGBW Mode Mode Address Address Quantity Quantity 8bit 8bit 8bit 8bit 16bit 16bit 16bit 16bit Resolution Resolution Channel Channel...

  • Page 6: After-Sales

    32CH DMX512 Constant Voltage Decoder 8、After-Sales From the day you purchase our products within 3 years, if being used properly in accordance with the instruction, and quality problems occur, we provide free repair or replacement services except the following cases: 1.Any defects caused by wrong operations.
