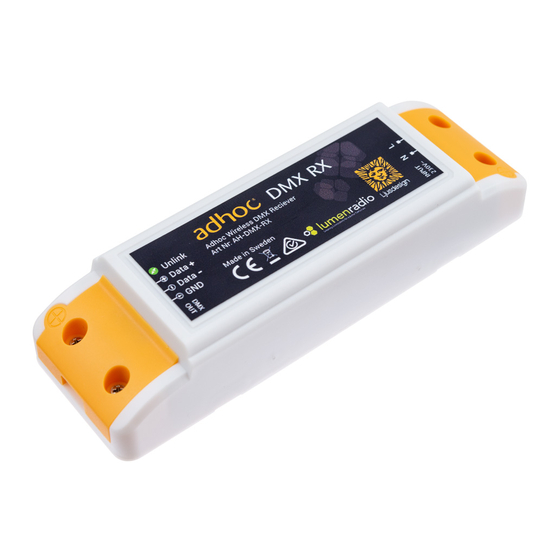

AdHoc DMX RX Quick Manual

DMX RX
Art Nr: AH-DMX-RX
Adhoc Wireless DMX Receiver
Thanks for choosing Adhoc DMX RX!
Please read these instructions carefully and retain it for future reference.

Features

• 2.4Ghz Lumenradio CRMX receiver
• 1 DMX universe up to 512 channels
• Link range up to 1000 meters

Installing

Unlink
Adhoc Wireless DMX Reciever
Data +
Art Nr: AH-DMX-RX
Data -
Made in Sweden
GND
DMX Output
Wired serial communication.
DMX+, DMX- and GND signal
will be connected to the
3-position screw terminal block.
DMX RX
Main Input
200–265V AC.
L and N signal will be
connected to the 2-position
screw terminal block.

Technical

Operating voltage 200–265V AC
Ambient temperature 10–35 °C
(operating)
Range 0–1000m line-of-sight
Latency Fixed 5 ms end-to-end
Antenna type Chip antenna
Operating frequency 2402–2480 MHz
Receiver sensitivity 0.1% BER: Typ. -93dBm
DMX frame size 0–512
DMX frame rate 0.8–830 fps
Dimension (LxWxH) 139.8 x 44.9 x 26 mm
Protection class IP20
How to

Link

1. Power on the Transmitter and the Adhoc DMX RX.
2. On the Transmitter, press and release the
The transmitter will now search for any unlinked Receivers and Link them.
If successful, Link LED on the Adhoc DMX RX will turn Yellow.

Unlink One

On the Adhoc DMX RX, press and hold the UNLINK button for
3 seconds to unlink it from a Transmitter.
If successful, Link LED on the Adhoc DMX RX will turn Blue.

Unlink All

On the Transmitter, press and hold the
for more than 3 seconds to unlink all of its receivers.
button.
button
Turn
