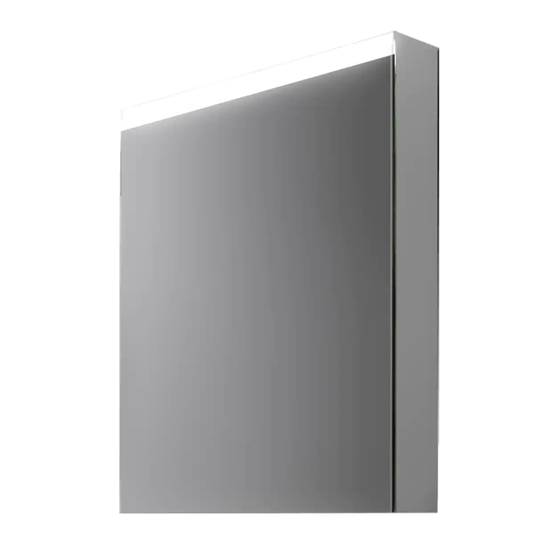

Summary of Contents for ExBrite JS-MC-1526
- Page 1 Lighted Mirrored Cabinet Light Bar Installation and Operating Manual W e b s i t e : H t t p : / / w w w. e x b r i t e u s a . c o m E m a i l : i n f o @ e x b r i t e u s a .
-
Page 2: Installation Instructions
Lighted Mirrored Cabinet Light Bar INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN Please read these instructions carefully to familiarize yourself with the required tools, materials, and installation sequences. Follow the sections that pertain to your particular installation. This will help you avoid costly mistakes. In addition to proper installation, read all operating and safety instructions. -
Page 3: Tools Required
Lighted Mirrored Cabinet Light Bar TOOLS REQUIRED PARTS SUPPLIED (1) Position-paper (2) Anchors x 3PCS x 1PCE x 3PCE (3) Screws for wall (4) Mounting Bar x 1PCE (5) Support Angle x 1PCE (6) Glass panel x 2PCS 8PCS i l c 8PCS W e b s i t e : H t t p : / / w w w. - Page 4 JS-MC-1526 JS-MC-2026...

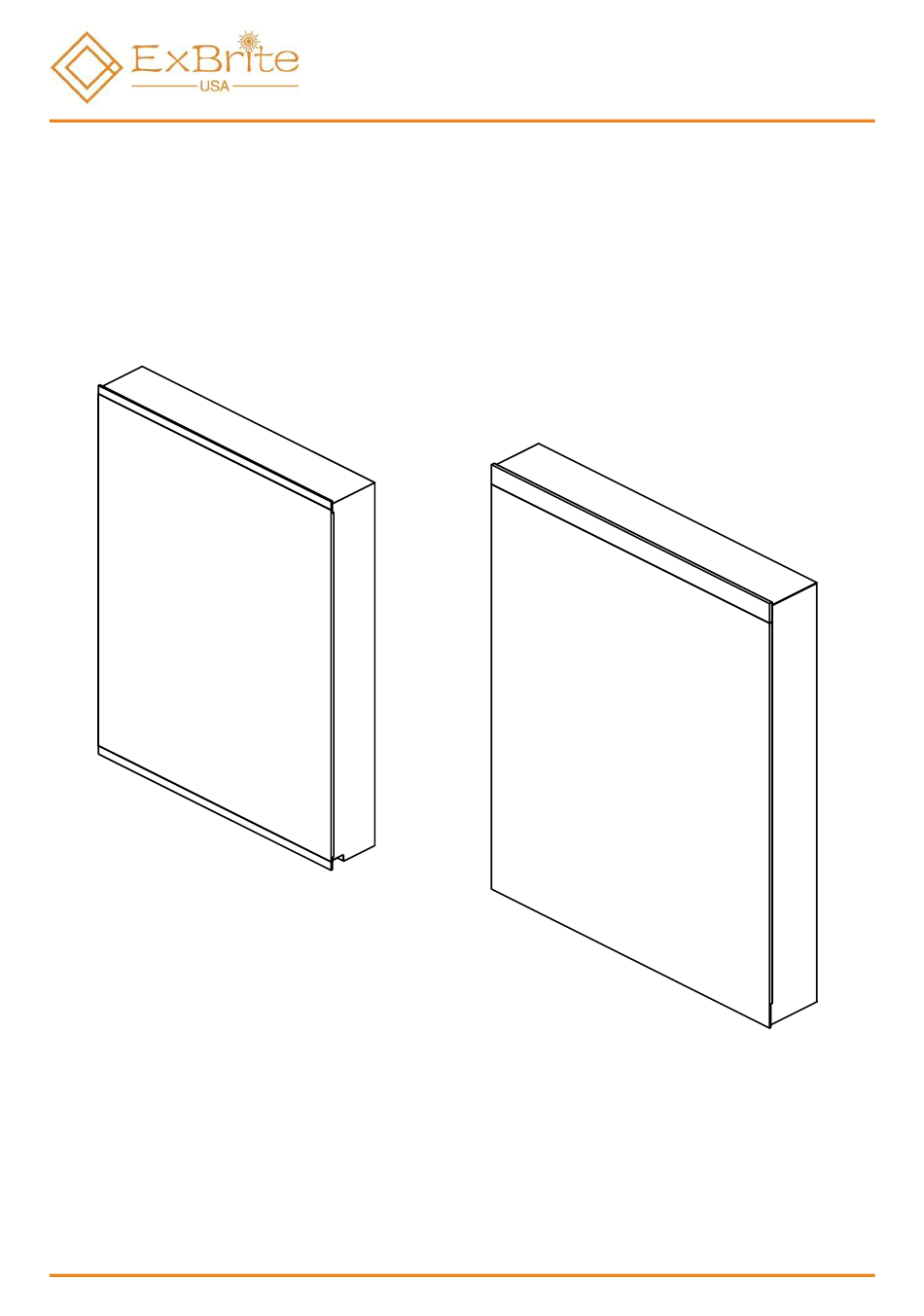

- Page 5 JS-BAR-30-001 120.0(4 ") 120.0(4 ") 20.0( ") 20.0( ") ExBrite reserves the rights to change marked dimension without prior notice. INSTALLATION for JS-MC-1526 and JS-MC-2026 Verify minimum clearances. Paste the position-paper on wall and make sure it is horizontal by level.
- Page 6 Lighted Mirrored Cabinet Light Bar Drill holes. Insert anchors where needed. We provide plug along with cabinet. Secure the mounting bar with screws. Optional to cut the plug directly and connect to electrical wiring if using a wall switch. STEP 3 STEP 4 Lift the cabinet onto the mounting bar.
- Page 7 Lighted Mirrored Cabinet Light Bar If the door is left open, it can be changed to Install the clips. Insert the shelves between right open by releasing the hinge and rotate the clips. the door, and vice versa. Rotate the door Secure hinges by screws Loose screws to release hinges...
- Page 8 Lighted Mirrored Cabinet Light Bar INSTALLATION for JS-MC-2030 and JS-MC-2430 We separate left-open door and right-open Verify minimum clearances. door for these models, they are not interchangeable. Luminous area is on top of the cabinet. Make sure you are installing correct one. 3"...
- Page 9 Lighted Mirrored Cabinet Light Bar We provide plug along with cabinet. Lift the cabinet onto the mounting bar. Optional to cut the plug directly and connect Ensure the hooks engage the bar. to electrical wiring if using a wall switch. STEP 5 STEP 6 Place the support angle on the bottom of...
- Page 10 Lighted Mirrored Cabinet Light Bar INSTALLATION for JS-BAR-26 and JS-BAR-30 Light Bar (optional for purchase) Turn on/off the light by waving your hand Paste light bar by double faced adhesive tape. underneath the cabinet or control by wall Plug in the socket on top of the cabinet. There is 2 sockets on top swatch.
- Page 11 Lighted Mirrored Cabinet Light Bar INSTRUCITON for combination Make sure your door open direction is Measure total length of cabinets, correct including the LED bar in the middle. Make sure you have one LED light bar Adjust to your target location. between each cabinet C abinet C abinet...
