Zigbee network RFID reader
1.
XTDE-ZX1 Feature and Specification .................................. 1
2.
The Diagram of the System Connection ................................ 2
3.
Zigbee Channel list ............................................... 3
4.
XTDE-ZX1 Configuration ........................................... 4
5.
Receive tag's data from XT200-ZX1 ................................... 9

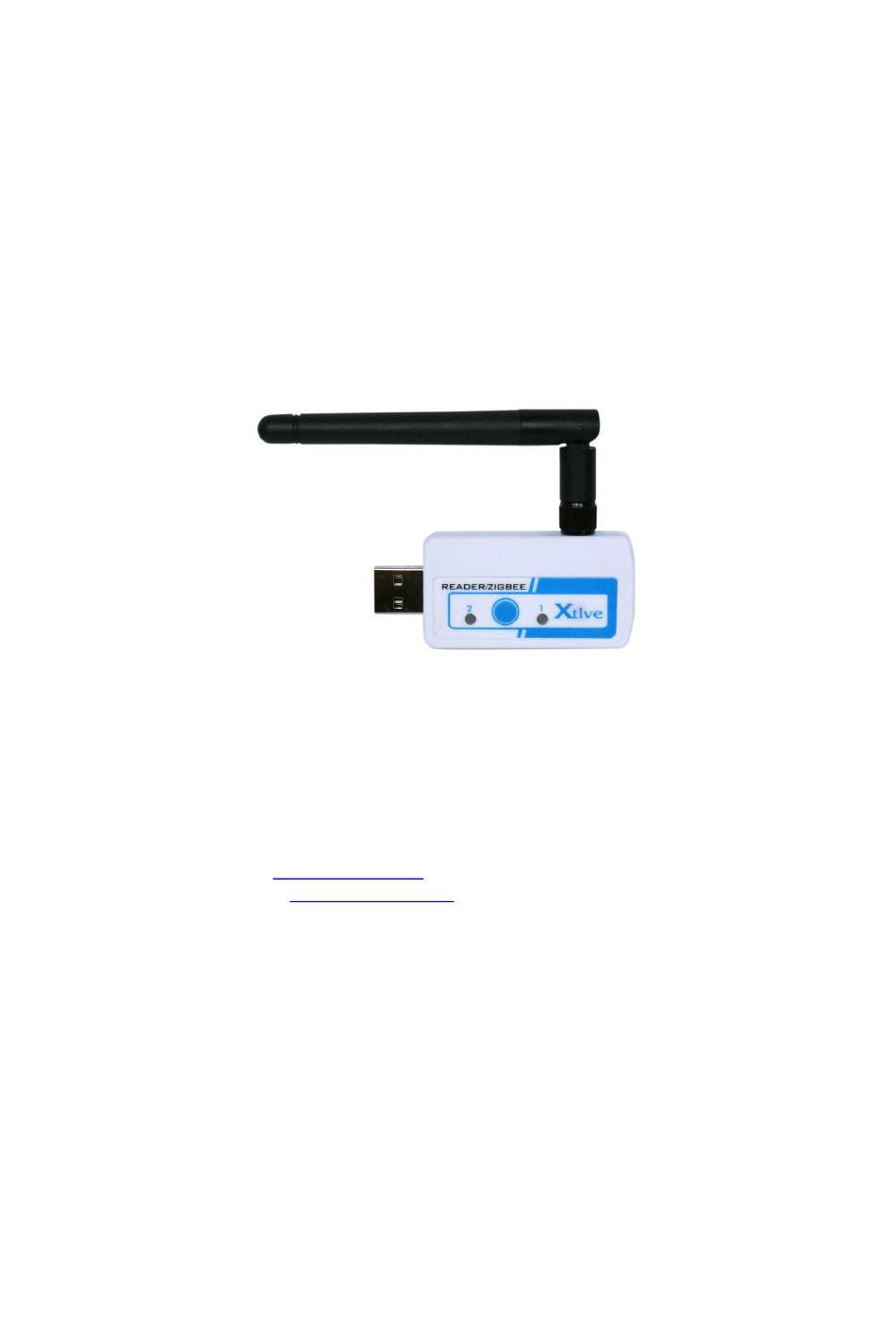

XTDE-ZX1
Installation Manual
SYRIS Technology Corporation
12F, NO.16 Sec. 2, Taiwan Blvd., Taichung city, Taiwan(403)
TEL: 04-2207-8888
FAX: 04-2207-9999
Email：service@syris.com
Website :
http://www.syris.com
Contents
V0100
Advertisement
Table of Contents
Related Manuals for Syris Zigbee XTDE-ZX1
Summary of Contents for Syris Zigbee XTDE-ZX1
-
Page 1: Table Of Contents
XTDE-ZX1 Zigbee network RFID reader Installation Manual V0100 SYRIS Technology Corporation 12F, NO.16 Sec. 2, Taiwan Blvd., Taichung city, Taiwan(403) TEL: 04-2207-8888 FAX: 04-2207-9999 Email：service@syris.com Website : http://www.syris.com Contents XTDE-ZX1 Feature and Specification ........1 The Diagram of the System Connection ........ 2 Zigbee Channel list .......... -
Page 2: Xtde-Zx1 Feature And Specification
XTDE-ZX1 Install Guide 1. XTDE-ZX1 Feature and Specification Features Support Zigbee mesh network、16 devices in 1 group. Anti-collision mechanism, multi-tag capability. Support 2.45 GHz Xtive RFID. Standard USB power supply，easy installation. Compact low cost design. Specification Specification XTDE-ZX1 Communication 2.45 GHz Support read and write Xtive Frequency 2.40~2.48 GHz Xtive Channel... -
Page 3: The Diagram Of The System Connection
XTDE-ZX1 Install Guide The Diagram of the System Connection - 2 -... -
Page 4: Zigbee Channel List
XTDE-ZX1 Install Guide 3. Zigbee Channel list Default Channel is CH 11. Zigbee Channel List Channel Number /hex Frequency /MHz CH26 0x1A 2480 CH25 0x19 2475 CH24 0x18 2470 CH23 0x17 2465 CH22 0x16 2460 CH21 0x15 2455 CH20 0x14 2450 CH19 0x13... -
Page 5: Xtde-Zx1 Configuration
XTDE-ZX1 Install Guide 4. XTDE-ZX1 Configuration Step 1. Connect XTDE-ZX1 to USB port, No.2 LED of XTDE-ZX1 will blink green LED. Step 2. Press button for 4 seconds，LED No.2 will turn to blue(or cyan-blue when Zigbee network was connected). Step 3. system will automatically pop-up the "Found New Hardware Wizard" window for install the driver. - Page 6 XTDE-ZX1 Install Guide Step 6. Click Set Reader Step 7. Select correct COM port and click Reader Information to communicate with XTDE-ZX1. - 5 -...
- Page 7 XTDE-ZX1 Install Guide Step 8. Get current XTDE-ZX1 information as below picture. Step 9. Check Model is show “XTDE-Z1”, means you can configure Zigbee parameters in “Zigbee Set” page. Click Get Zigbee Group ID to get current Zigbee Group ID, and then modify the same Group ID to pair with XT200-ZX1.In put correct ID and Click Set Zigbee Group ID to setup Zigbee Group ID.
- Page 8 XTDE-ZX1 Install Guide Step 10. When you finished Zigbee setting, click switch button change to RFID setting mode with red LED. (or yellow when Zigbee network was connected) Step 11. Re-execute Xtive_XT200_V7.exe and click Reader Information Get current XTDE-ZX1 information as below picture Check Model is show “XTDE-X1”, means you can configure Xtive RFID parameters in “GUEST”...
- Page 9 XTDE-ZX1 Install Guide When you finished configuration, please re-plug XTDE-ZX1 to exit setting mode. (XTDE-ZX1 will exit setting mode automatically after 3 minutes.) If your configuration is correct, XTDE-ZX1 and XT200-ZX1 will auto organize success. You can check LED status of XTDE-ZX1. When LED No.1 is blinking means this reader is reading RFID tag.
-
Page 10: Receive Tag's Data From Xt200-Zx1
XTDE-ZX1 Install Guide 5. Receive tag’s data from XT200-ZX1 Starting read TAG will receive Tag information from reader. You can check “ID” field to understand this tag signal was received from which reader. (ID means Reader’s ID) - 9 -...
