Below is the required hookup and configuration for service.
RF Hookup
Port 1: Galaxy 15 Horizontal (Odd)
Port 2: Galaxy 15 Vertical (Even)
Port 3: Galaxy 17 Horizontal (Odd)
Port 4: Galaxy 17 Vertical (Even)
CALL 1-800-334-1744 FOR
AUTHORIZATION

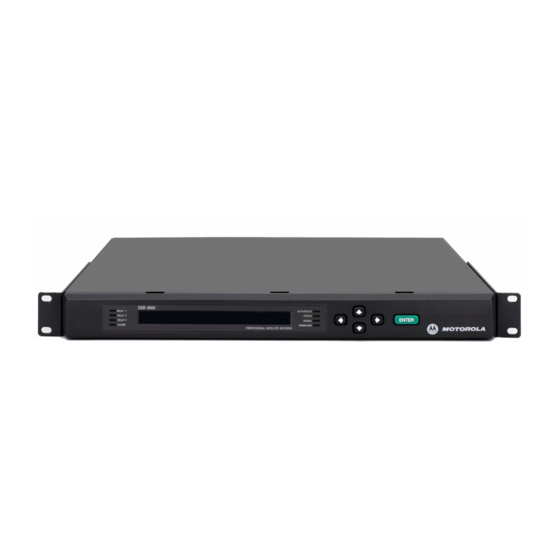

DSR-6000
G17 V
G15 H
G15 V
G17 H
(Even)
(Odd)
(Even)
(Odd)
ASI Out 1
7680: Video
4128: AC-3 Stereo (ENG)
4129: AC-3 Stereo (SAP)
4288: DPI
Stereo L Stereo R
HD Hookup
ASI Out 1
PID's
SAP Relay 1 Ad Insertion
DTMF Ad Insertion
SD Hookup
Video
Video Out
Audio
Audio 1 L,R: Stereo
Audio 2 L: SAP
(Selected Programming)
Ad Insertion
Relay #1
DTMF for select Networks
Advertisement
Summary of Contents for Fox DSR-6000
- Page 1 DSR-6000 Below is the required hookup and configuration for service. G17 V G15 H G15 V G17 H Stereo L Stereo R SAP Relay 1 Ad Insertion (Even) (Odd) (Even) (Odd) DTMF Ad Insertion ASI Out 1 RF Hookup HD Hookup...
- Page 2 From DSR6000 Main Menu use the ◄► to select Diag. Press ENTER, then use ▼ button to view the Unit Address. – – Contact Fox Network Center for authorization at 1-800-334-1744. *Go to http://foxcable.com and click on the DSR6000 install technical information...
