Packing List
Charging bin*1
Bluetooth headsets left and right (* 2)
Type-C*1
Type-C charging cable *1
Silicone earcaps * 4
User manual *1
Product parameters
Product name
Bluetooth version
Communication distance
Water proof level
Frequency response
Sensitivity
Impedance
Supported protocols
Battery capacity
Horn
Audio coding
Listening duration (with charging bin)
Noise reduction depth
Charging port
Rated input
Product size
Product weight

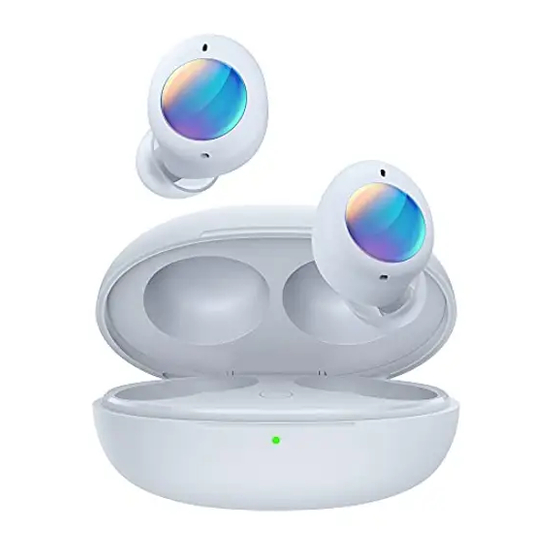

Aura ANCbuds
User Manual
Active noise cancellation bluetooth headset
5.0
10m
IPX4
20Hz-20KHz
117dB± 3dB
28Ω
HFP/HSP/A2DP/AVRCP
400mAh/30mAh
12mm moving coil unit
SBC/AAC
30Hrs
25dB
Type-C
DC 5V
67.2*49*28.8mm
50g
Advertisement
Table of Contents
Summary of Contents for Aura ANCbuds
- Page 1 Aura ANCbuds User Manual Packing List Charging bin*1 Bluetooth headsets left and right (* 2) Type-C*1 Type-C charging cable *1 Silicone earcaps * 4 User manual *1 Product parameters Product name Active noise cancellation bluetooth headset Bluetooth version Communication distance...
- Page 2 Product Introduction Indicator light of charging bin Reset key Type-C charging port Press area...
- Page 3 Function introduction Charging bin Status of function of Operation Status of indicator light of charging bin charging bin Orange light is constantly on for 13 Power less than 20% Open charging bin seconds Green light is constantly on for 13 seconds Power more than 20% Close charging bin Orange light is constantly on for 3 seconds Power less than 20% (or click the key)
- Page 4 Operating steps Turn on: open the charging bin, and the headset automatically turns on. Pair: open device "Bluetooth" and open charging bin, and then click Aura ANCbuds to connect. It spends about 3 to 5 seconds from turning on the headset to pair at the first use.
- Page 5 Non-warranty regulations A. Beyond the warranty period; B. Any failure to use, maintain or repair the product in accordance with the requirements of the user manual, resulting in damage and dirty appearance; C. Any damage caused by the disassembly by non-Vifa authorized repairers; D Any water inlet, scratches, accidental drop or other accidents not caused by Vifa.
- Page 6 Names and contents of hazardous substances in the product Parts Hazardous substances name Lead Mercury Cadmium Hexavalent Polybrominated Polybrominated chromium biphenyls diphenyl ethers Headset Charging This table is prepared according to SJ/T 11364. It means that the content of the toxic and hazardous substance in all the homogeneous materials of the component is below the limit requirements specified in GB/T 26572.
- Page 7 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
