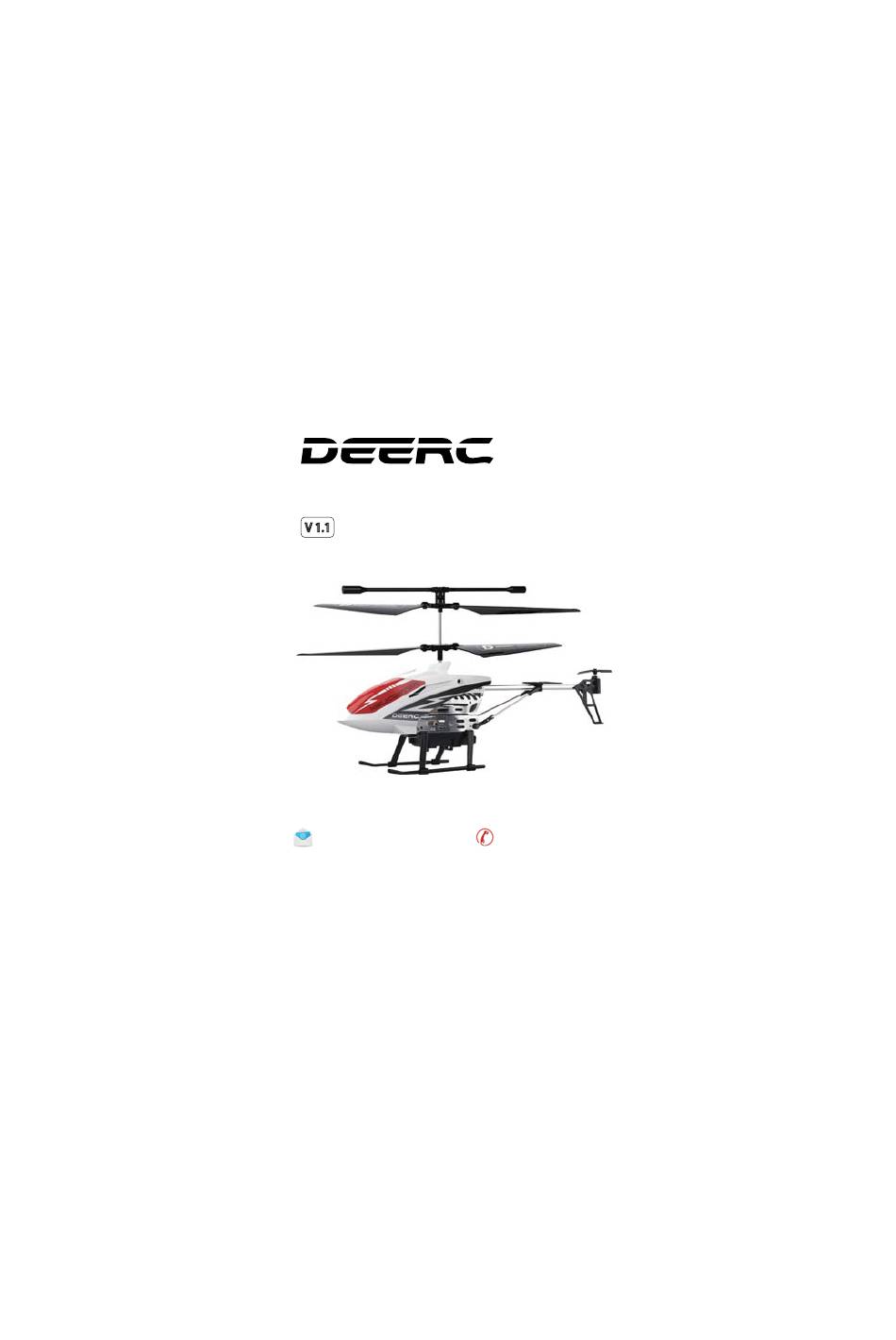

- Page 1 PRODUCT MANUAL V 1.1 usa@deerc.com (USA) +1(855) 777-8866 eu@deerc.com (EU) jp@deerc.com (JP) www.deerc.com...
- Page 2 (including disclaimers, safety instructions, warning instructions, etc.) included with this product. 4. In case you are having challenges on any aspect of the product, may it be operation or maintenance, please contact your local sales agent or contact customer support at DEERC.

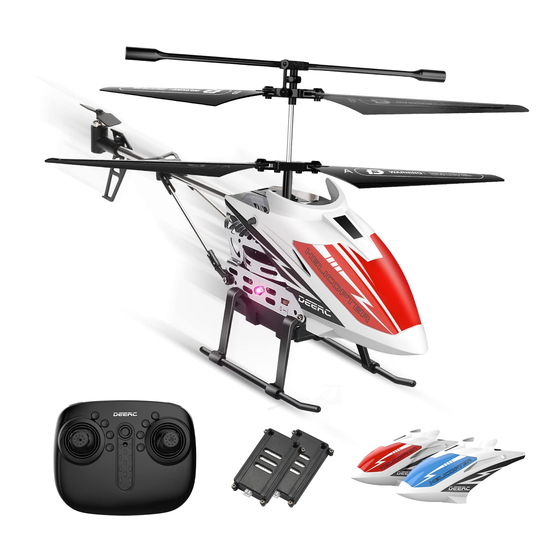

- Page 3 < PACKAGE CONTENTS > USB Charging RC Helicopter Remote Control Cable Top B propeller Tail propeller Lower A propeller RC Helicopter Product Manual Battery < REMOTE CONTROL FUNCTIONS > Power switch Landing(press once) Left trim Emergency stop(press and hold) Right trim Take Off Ascend and Forward/Reverse...
- Page 4 < HELICOPTER’S DETAILS > ① Balancing rod ⑤ No function ② Top B propeller ⑥ Landing gear ③ Lower A propeller ⑦ Power switch (”I” means on, “0” means off) ④ Tail propeller ⑧ RC helicopter battery...
- Page 5 < CHARGING > When the helicopter runs out of power, the helicopter's power indicator will flash. Please stop flying, power down and remove the battery. USB Adapter (5V @ 0.5-2.0A) Power Bank Computer USB Port 1. Plug the USB charging cable into the USB charging port of the computer, power bank or USB adapter (5V@ 0.5~2.0A).
- Page 6 < BATTERY INSTALLATION > 1. Remote’s Battery 3 x 1.5V AAA (Not included) ① Unscrew and open the battery cover. ② Insert 3 AAA batteries in the correct direction. ③ Close the battery cover and lock it. ① If the remote will not be used for a long time, make sure to turn it off and remove the batteries.
- Page 7 < OPERATION > 1. Pairing Once batteries are inserted to the helicopter and the remote ① Turn on the power switch of the helicopter, the power indicator of the helicopter will flash quickly. Then Keep the helicopter on level. DO NOT hold it in your hands. ②...
- Page 8 < OPERATION > 3. Ascend, Descend, Forward, Reverse, Left Rotate and Right Rotate Push the left joystick forward, the helicopter will ascend. Push the left joystick reverse, the helicopter will descend. Push the right joystick forward, the helicopter goes forward. Push the right joystick reverse, the helicopter goes reverse.
- Page 9 < OPERATION > 4. Lights Switch and Speed Switch Lights on/off Speed switch Press the lights switch button once to turn on or off the power indicator of the helicopter. Press the speed switch button once to switch the speed of the helicopter.
- Page 10 < FAQ > QUESTIONS CAUSE SOLUTIONS Batteries installed Insert batteries in the The remote improperly correct direction doesn't work Battery's dead Replace the batteries Failure to pair between Both rebooting. Turn helicopter and remote on the plane and then The helicopter's the remote out of control Lost Control in the wind...
- Page 11 < INTRODUCTION OF PARTS > Helicopter Shell A and B Propeller Balancing Rod Lower Propeller Frame Assembly holder Main Motor Drive shaft Drive Tube Landing Gear Tail Motor Assembly Receiving Circuit Board Battery Remote Control USB Charging Cable...
- Page 12 < WARNINGS > Flying in Within your Fly Below the open sight 32 feet (10 m) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Avoid flying over or near obstacles, crowds, high voltage power lines, trees, airport or bodies of water.
- Page 13 < WARNINGS > 1. According to the instructions provided on the manual. Some part needs to be assembled and adjusted by adults. 2. Please use under the guidance of an adult. 3. Please promptly put away the packing materials so as not to cause harm to children.
- Page 14 19. Non-rechargeable batteries cannot be charged. 20. When charging a rechargeable battery, adult supervision is required. 21. The rechargeable battery should be removed from the toy before charging. 22. Do not mix old and new or different types of batteries. 23.
- Page 15 < GENERAL INFORMATION > FCC Notice: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
- Page 16 RF Exposure (This Statement is for the aircraft section only) The equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This device should be installed and operated with minimum distance 20cm between the radiator & your body. IC Notice: This device complies with Canada Industry licence-exempt RSS standard(s).
- Page 17 6. Never charge on a flammable surface, near flammable products or inside a vehicle (perferably place the battery in a non-flammable and nonconductive container). 7. Never leave the battery unattended during the charging process. Never disassemble or modify the housing’s wiring, or puncture the cells.
- Page 18 Xiamen Huoshiquan Import & Export CO., LTD Room 703,No. 813-2 Xiahe Road, Siming District, XIAMEN, China Please do not hesitate to contact us if you need further support. usa@deerc.com (America) +1(855) 777-8866 eu@deerc.com (Europe) jp@deerc.com (Japan) Scan this QR code to activate your...
