Summary of Contents for Schletter PROLINE ROOF HOOK

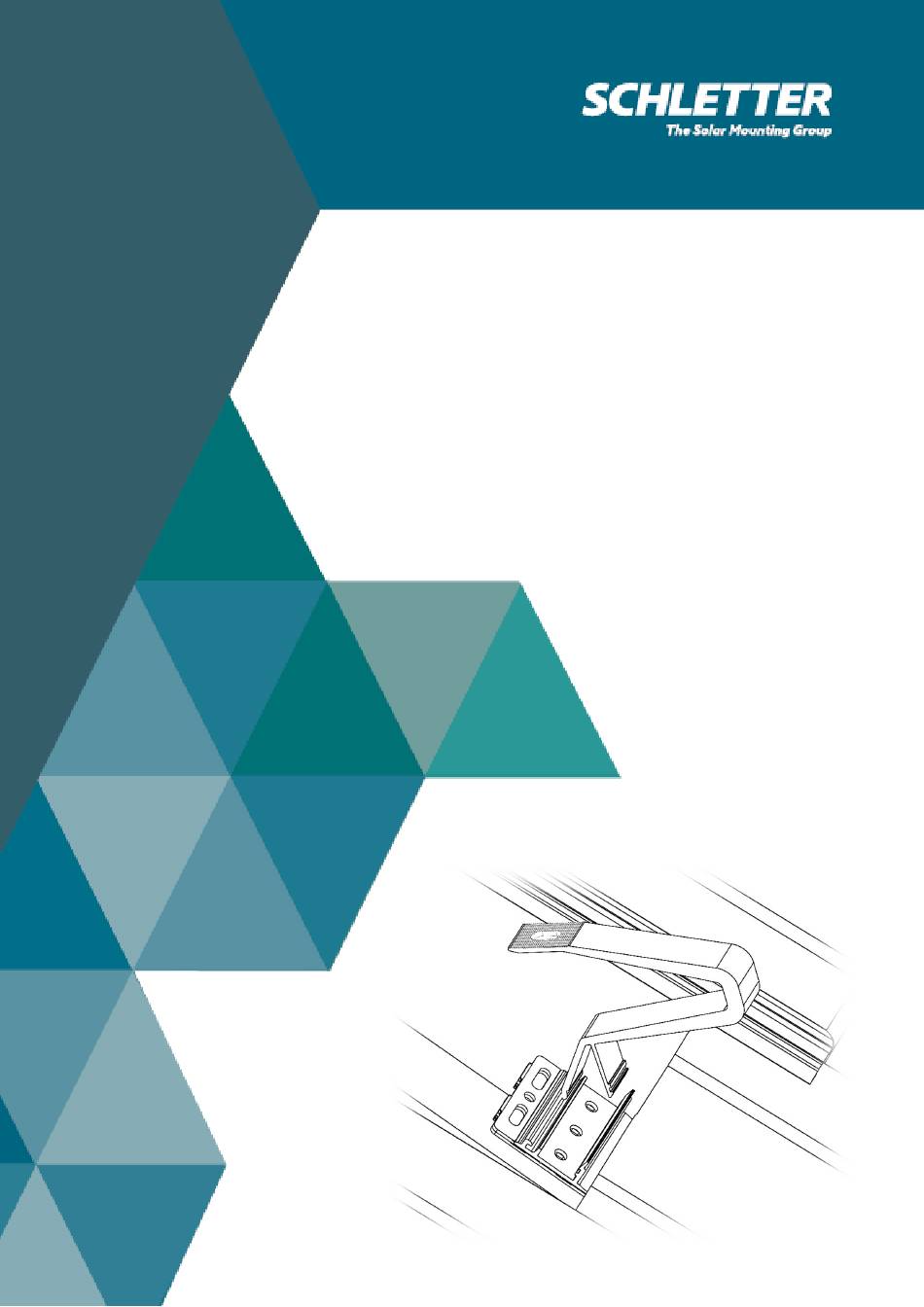

- Page 1 PROLINE ROOF HOOKS INSTALLATION GUIDE...
-
Page 2: Table Of Contents
5. COVER TILES ........................... 8 6.MOUNTING THE ECOA PROFILE ....................8 7. MOUNTING THE RAPIDA PROFILE ................... 9 8. MOUNTING THE RAPIDA UNIVERSAL PROFILE ..............9 PROLINE ROOF HOOKS | V2 | INSTALLATION GUIDE | 202102 SCHLETTER SOLAR GMBH | SUBJECT TO CHANGES... -
Page 3: Proline Roof Hooks Installation Guide
PV mounting systems are not suitable for use as climbing aids or fall protection systems PROLINE ROOF HOOKS | V2 | INSTALLATION GUIDE | 202102 SCHLETTER SOLAR GMBH | SUBJECT TO CHANGES... -
Page 4: Installation
Improper machining of roof tiles can cause the roof to leak and result in significant damage. PROLINE ROOF HOOKS | V2 | INSTALLATION GUIDE | 202102 SCHLETTER SOLAR GMBH | SUBJECT TO CHANGES... -
Page 5: Flex Out The Lower Roof Tile
Screw on the base plate using an M8 wood screw. Use a shim if necessary. Fix the ProLine roof hook to the base plate. The length of the screws must be selected so that at least 80 mm of thread is screwed into the rafter. - Page 6 4x the screw diameter. The roof hooks can thus be mounted with a max. overhang of 43 mm. distance of the screw, minimum Maximum distance PROLINE ROOF HOOKS | V2 | INSTALLATION GUIDE | 202102 SCHLETTER SOLAR GMBH | SUBJECT TO CHANGES...
-
Page 7: Flex Out The Upper Roof Tile
Remove the bar so that there is at least 5 mm clearance around the roof hook in the next step! Only remove the bar! Do not grind any deeper! PROLINE ROOF HOOKS | V2 | INSTALLATION GUIDE | 202102 SCHLETTER SOLAR GMBH | SUBJECT TO CHANGES... -
Page 8: Cover Tiles
Insert the square head screw into the lower groove of the profile. Place the profile on the roof hook and fix it with M10 nuts. If necessary, align the profile before tightening the nut. PROLINE ROOF HOOKS | V2 | INSTALLATION GUIDE | 202102 SCHLETTER SOLAR GMBH | SUBJECT TO CHANGES... -
Page 9: Mounting The Rapida Profile
Tighten the pre-assembled screw on the roof hook. Further information regarding our systems is available on our website: www.schletter-group.com under Downloads in the solar section. PROLINE ROOF HOOKS | V2 | INSTALLATION GUIDE | 202102 SCHLETTER SOLAR GMBH | SUBJECT TO CHANGES... - Page 10 SCHLETTER SOLAR GMBH Alustraße 1 83527 Kirchdorf GERMANY www.schletter-group.com We reserve the right to changes, including technical modification.
