CONTENTS WARNING 1. To prevent short circuit, please keep the 1. Pack List device away from water or wet places. 2. Interface Introduction 2. If water or any other liquid soak into the 3. Software Introduction device, cut off the power immediately, and call our service engineer of inspection, in case of 4.
Page 4

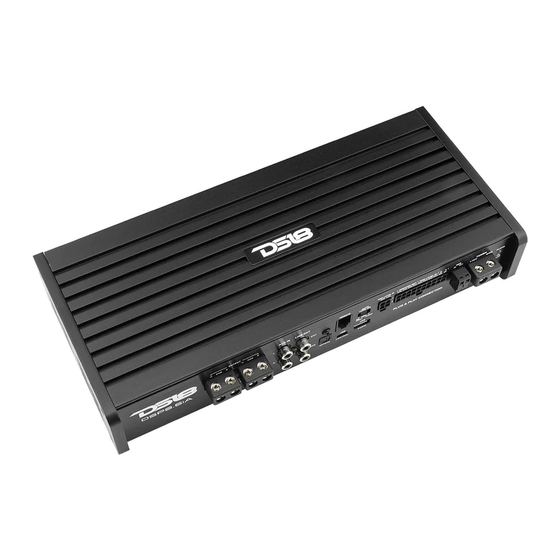

O PERATIONS & CONTROLS Output (speaker outuput) DSP8.6iA has a built-in high power 6ch class AB amplifier. CH 1,2,3,4 can output 80Wrms each channel @ min load 4 ohm CH 5, 6 can output 80Wrms each channel @ 4 ohm; or 120Wrms each channel @ min load 2 ohm: CH 5, 6 can also be bridged to output 240Wrms @ 4 ohm AUX Lower Signal Input Terminal - Support 2 channels RCA stereo input.
Page 5
Using the DSP8.6iA remote control, select BT source and adjust the desire volume. Now. start to stream or play any kind of audio from your device. On the DSP8.6iA Remote Control you can use the forward and backward buttons to control your music.
Page 6
INSTALLATION DIAGRAM Using Factory “OEM” Radio with High-level Speaker signal. BATTERY Use “Audio or DC O set” Ch7 & Ch8 Ampli er (Optional) Using aftermarket radio with RCA Low-Level audio signal. BATTERY Use “REM” Ch7 & Ch8 Ampli er (Optional)
Page 7
WIRED MULTI FUNCTION CONTROLLER With the remote controller connected to the DSP, you can enjoy the following operation to the DSP: 1. Main volume control, Slave volume control, Mute 2. Switch between the last song and next song from Bluetooth/USB Drive 3.
SOFTWARE INTRODUCTION 1. Software download and installation instructions Download tuning software from the website ds18.tools Follow the instructions to complete installation and double click the shortcut icon to start operations as shown below. 2. Important Instructitons for Software Installation Software Interface Introductions 1.
Page 9
SOFTWARE INTERFACE INTRODUCTIONS Input mix switch settings, Input level settings, synchronous source switching during mixing. The system will automatically identifies the model of the DSP products on which is connected and automatic shields redundant channel display. EQ curve display: including level, channel EQ curve, main EQ curve, and simulated actual output summation curve.
Page 10
TROUBLESHOOTING Check all the cables and ports all perfectly safe before you switch on the power. Common troubleshooting procedure: FILES SUPPORTED...
SPECIFICATIONS The contents of this manual and the specifications of this product are subjet to change without notice. DS18 Company reserves the right to make changes to the specifica- tions and materials contained therein without notice.
Page 12
FOR MORE INFORMATION PLEASE VISIT DS18.COM...
