Summary of Contents for Jegs 81245

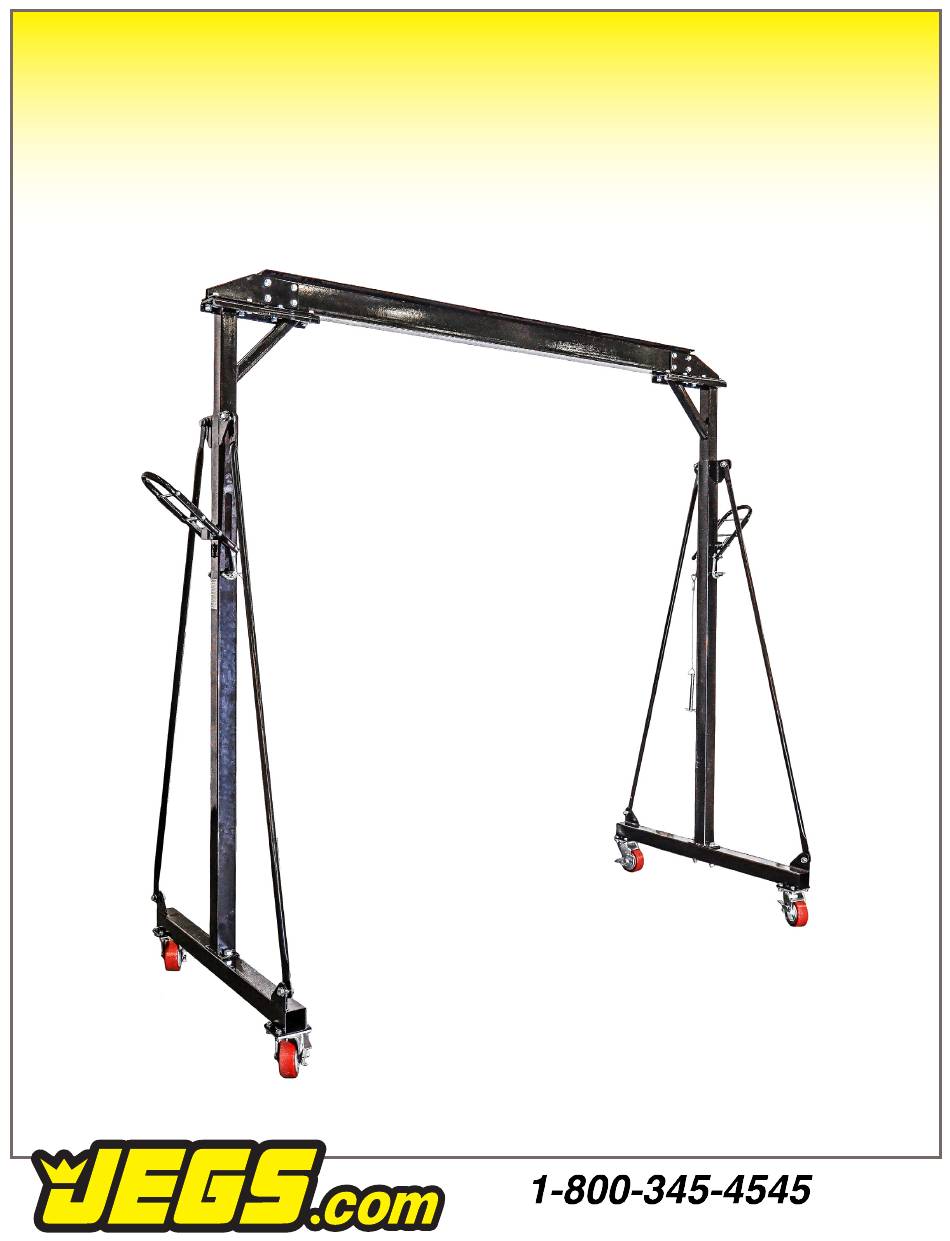

- Page 1 Assembly Guide for 81245 Gantry Crane 1-Ton Capacity...
- Page 2 Parts List (24) Bolt [M15 x 35mm] (28) Washer [M12] (28) Lock Washer [M12] (28) Nut [M12] (8) Bolt [M14 x 40mm] (8) Washer [M14] (8) Lock Washer [M14] (8) Nut [M14] (4) Bolt [M12] (2) Bolt [M10 x 180mm] (4) Nut [M10] (4) Bolt [M8 x 40mm] 13 (4) Nut [M8]...
- Page 3 Assembly Read Before Installation Thank you for your purchase of this JEGS 1-Ton Do not fully tighten hardware before final assembly. Gantry Crane. This allows everything fits properly. Before assembly, please be sure to verify that all of 1. Attach 2 plates (#20) to two sides on the one the kit components have been received.
- Page 4 Assembly Contd. of the Pins with Chain through the slot and Lowering the Crossbeam the Inner Vertical Post hole so that it goes all the way through, let the other pin. Attach the 1. Lowering the crossbeam requires 2 people. Handle (#24) to the bracket on the side of Outer Vertical Post, insert 1 Bolt (#10) from the inside, 2.
