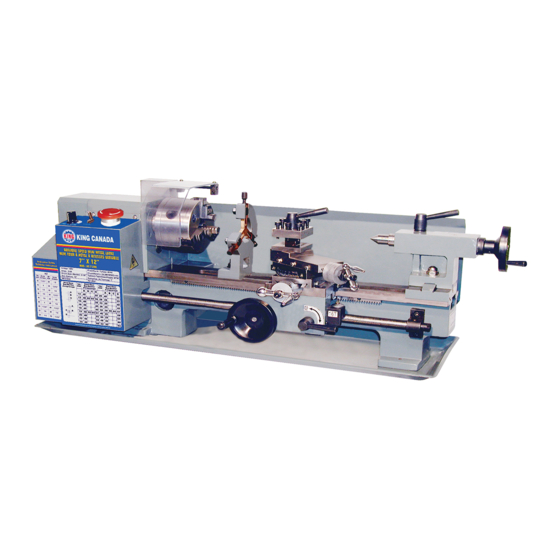

7” x 12” variable speed mini metal lathe

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

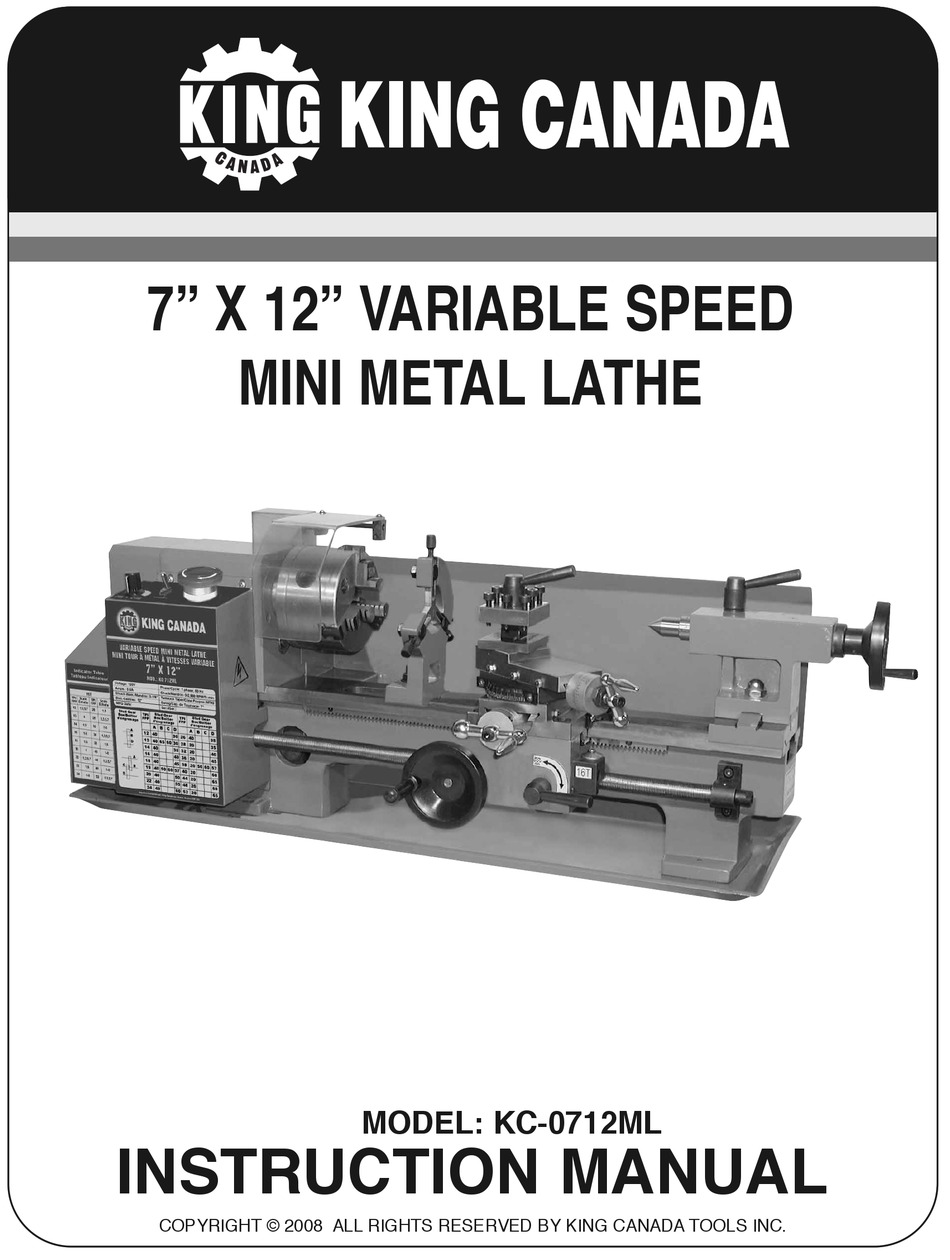

7" X 12" VARIABLE SPEED

MINI METAL LATHE

MODEL: KC-0712ML

INSTRUCTION MANUAL

Table of Contents

Need help?

Do you have a question about the KC-0712ML and is the answer not in the manual?

Questions and answers

Summary of Contents for KING KC-0712ML

Page 2 Please keep your dated proof of purchase for warranty and servicing purposes. REPLACEMENT PARTS Replacement parts for this product are available at our authorized King Canada service centers across Canada. Please use the 10 digit part numbers listed in this manual for all part orders where applicable.
Page 3 GENERAL & SPECIFIC SAFETY INSTRUCTIONS FOR METAL LATHE VOLTAGE WARNING: Before connecting the tool to a power source (receptacle, outlet, etc.) be sure the voltage supplied is the same as that specified on the nameplate of the tool. A power source with voltage greater than that for the specified tool can result in SERIOUS INJURY to the user - as well as damage to the tool.
Page 4 SPECIFICATIONS AND GETTING TO KNOW YOUR LATHE GETTING TO KNOW YOUR LATHE 1. Control box 2. Chuck 3. Top slide 4. 4-way tool post 5. Fixed center 6. Tailstock quill lock handle 7. Tailstock 8. Tailstock quill adjust handwheel 9. Tailstock locking nut 10.
Page 5 ELECTRICAL CONNECTIONS WARNING! ALL ELECTRICAL CONNECTIONS MUST BE DONE BY A QUALIFIED ELECTRICIAN. FAILURE TO COMPLY MAY RESULT IN SERIOUS INJURY! ALL ADJUSTMENTS OR REPAIRS MUST BE DONE WITH MACHINE DISCONNECTED FROM THE POWER SOURCE. FAILURE TO COMPLY MAY RESULT IN SERIOUS INJURY! POWER SUPPLY WARNING: YOUR METAL LATHE MUST BE CONNECTED TO A 110V, 15-AMP, PROPERLY GROUNDED OUTLET...
Page 6 OPERATION & REPLACEMENT REPLACEMENT OF CHUCK When replacing the chuck, place a cloth or a piece of wood on the bedway underneath the chuck. This is to avoid damage to the bed way caused by carelessly dropping the chuck. Loosen the three set screws and nuts (A) (only two are shown) as shown in Fig.
Page 7 After adjusting the angle of the top slide, you can do bevel cutting as shown in Fig. 12. FIGURE 10 FIGURE 11 PARTS DIAGRAM & PARTS LISTS Refer to the Parts section of the King Canada web site for the most updated parts diagram and parts list. FIGURE 12...
