Summary of Contents for Zip'r Traveler
- Page 2 Warnings / Uses. Intended Use: The intended use of Zip’r Mobility products is to provide mobility to persons limited to a seated position that have the capacity to operate a mobility scooter. Regarding Devices for Prescription Use: CAUTION! Federal law restricts the sale of this device by or on the order of a physician, or other certified personnel legally licensed by the State (US only) or region in which this personnel practices to use or order the use of the device.
-
Page 3: Table Of Contents
Table of Contents Safety Guidelines ........................3 General ........................... 3 Your Mobility Scooter ......................4 Assembly & Disassembly ......................7 Batteries And Charging ......................10 Operating Your Mobility Scooter ................... 11 Comfort Adjustments ......................13 Care And Maintenance ......................14 Troubleshooting ........................ -
Page 4: Safety Guidelines
Safety Guidelines WARNING! An authorized Provider or qualified technician must perform the initial setup for this mobility scooter following all the procedures detailed in this manual. The symbols below are used throughout the owner’s manual and on the scooter to identify warnings and important information. -
Page 5: Your Mobility Scooter

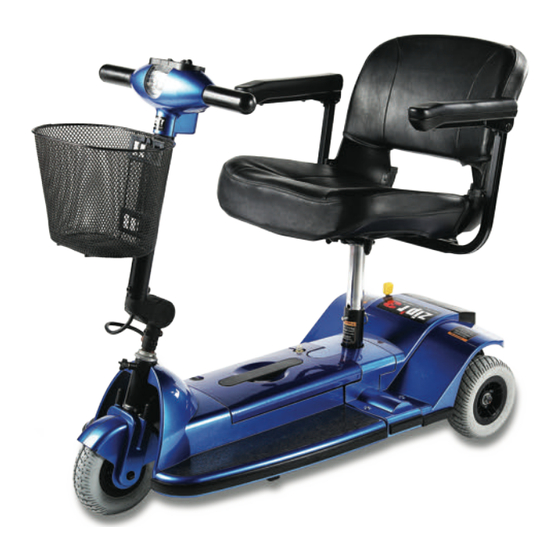

Charge your mobility scooter for 6-8 hours prior to using it for the first time. If you discover a problem, contact your authorized provider for assistance. Please refer to the Contact Information. Your Mobility Scooter The Zip’r Traveler series mobility scooter consists of the following major components listed in the diagram below. - Page 6 Tiller Console: The tiller console houses all controls needed to drive your mobility scooter, including the key switch, throttle control lever, horn button, speed adjustment dial, headlight switch, battery level indicator and troubleshooting LED indicator. PROHIBITED! Do not expose the tiller console to moisture. In the event that the tiller console does become exposed to moisture, do not attempt to operate your mobility scooter until the tiller console has dried thoroughly.
- Page 7 Throttle Control Lever This lever allows you to control the forward and reverse speeds of your scooter up to the maximum speed you preset using the speed adjustment dial. • To move Forward, use your right thumb to push the right side of the throttle control lever.
-
Page 8: Assembly & Disassembly
• After you have finished pushing your mobility scooter, always return it to the drive mode to lock the brakes. To Engage or Disengage the Drive System 1. Locate the lever on the rear section of the scooter (see the diagram above). 2. - Page 9 Figure 2. To begin assembly, tilt the rear frame back so it is freely standing on the rear bumper. Lift the front frame up and set it down onto the rear frame by connecting the front frame curved locking brackets (one on each side) onto the rear frame bracket pegs (one on each side).
- Page 10 NOTE: To use the swivel seat function pull on the lever (located at the right of the seat). Figure 10. The fully assembled Zip’r Traveler mobility scooter. Disassembly of your scooter can be accomplished by following the above steps in reverse order.
-
Page 11: Batteries And Charging
Batteries And Charging Your mobility scooter requires two 12-volt, batteries. The batteries are recharged by the off- board charger that is included with every Zip’r Traveler and Xtra mobility scooter. • Charge your mobility scooter batteries for at least 6 to 8 hours prior to using it for the first time. -
Page 12: Operating Your Mobility Scooter
WARNING! Do not mix old and new batteries. Always replace both batteries at the same time. WARNING! Contact your provider if you have any questions regarding the batteries in your mobility scooter. WARNING! Do not replace the batteries while the mobility scooter is in-use or occupied. - Page 13 • Is the seat at the desired height? • Is the seat fully secured? • Is the tiller in a comfortable setting and fully secured? • Is the key fully inserted into the key switch and turned clockwise to the “on” position? •...
-
Page 14: Comfort Adjustments
Comfort Adjustments Tiller Angle Adjustment WARNING! Remove the key from the key switch before adjusting the tiller or the seat. Never attempt to adjust the tiller or the seat while the mobility scooter is in motion. WARNING! Prior to operating the scooter, push and pull on the tiller to ensure that the angle adjustment mechanism is secure. -
Page 15: Care And Maintenance
Care And Maintenance Your Zip’r Traveler requires a minimal amount of maintenance. The following are the maintenance items that should be followed to ensure that your scooter is both safe and operational. Daily • Charge your battery daily if your scooter is used for more than twenty minutes. - Page 16 • The battery is fully charged. • The key is in the ignition and turned on. If the mobility scooter is charged but does not move, please check to ensure the following: • The scooter may be in free wheel mode (brake release lever in forward position). If this is the case then remove your key from the ignition, push the free-wheel lever to the drive position (rear position), and reinsert your key into the ignition turning the scooter on.
-
Page 17: Warranty
Zip’r will provide warranty items directly to customer(s) or customers’ Repair/Service Technicians. If you would like a list of Repair/Service Technicians, which have been provided to Zip'r by several customers, please email us at service@zipr.com. - Page 18 (located under battery box) for warranty claims and/or product reference. Warranty is only valid for products purchased, registered within 30 days of purchase, and shipped within the continental USA. Zip'r Mobility contact information: Web site: www.zipr.com For customer support please fill out the contact us.
