GE Profile PGB910SEMSS Dimensions And Installation Information

47-3/16
"

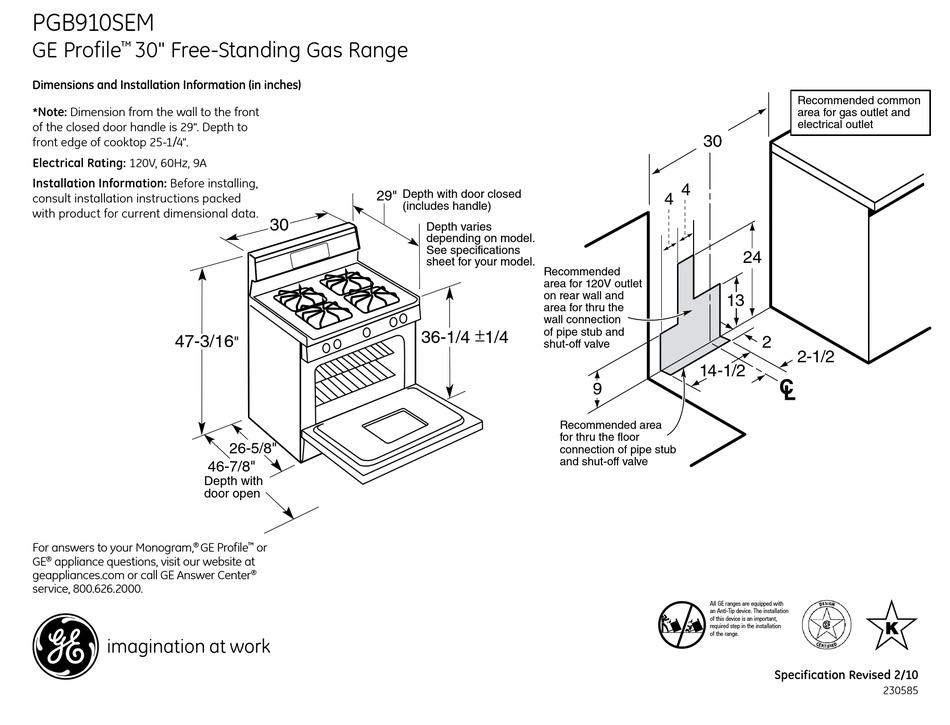

PGB910SEM
GE Profile 30" Free-Standing Gas Range
™
Dimensions and Installation Information (in inches)
*Note: Dimension from the wall to the front
of the closed door handle is 29". Depth to
26-5/8"
front edge of cooktop 25-1/4".
46-7/8"
Electrical Rating: 120V, 60Hz, 9A
Depth with
Installation Information: Before installing,
door open
consult installation instructions packed
with product for current dimensional data.
47-3/16
46-7/8"
Depth with
door open
For answers to your Monogram, GE Profile
®
GE ® appliance questions, visit our website at
geappliances.com or call GE Answer Center
service, 800.626.2000.
36-1/4 ± 1/4
29" Depth with door closed
(includes handle)
30
"
26-5/8"
or
™
®
Depth varies
depending on model.
See specifications
sheet for your model.
Recommended
area for 120V outlet
on rear wall and
area for thru the
wall connection
36-1/4 ± 1/4
of pipe stub and
shut-off valve
9
Recommended area
for thru the floor
connection of pipe stub
and shut-off valve
Recommended
area for 120V outlet
on rear wall and
area for thru the
wall connection
of pipe stub and
shut-off valve
9
Recommended area
for thru the floor
connection of pipe stub
and shut-off valve
Recommended common
area for gas outlet and
electrical outlet
30
4
4
24
13
2
2-1/2
14-1/2
Recommended common
area for gas outlet and
electrical outlet
30
4
4
24
13
All GE ranges are equipped with
an Anti-Tip device. The installation
2
of this device is an important,
2-1/2
required step in the installation
of the range.
14-1/2
Specification Revised 2/10
230585
