Summary of Contents for ADVANCED EV EV1

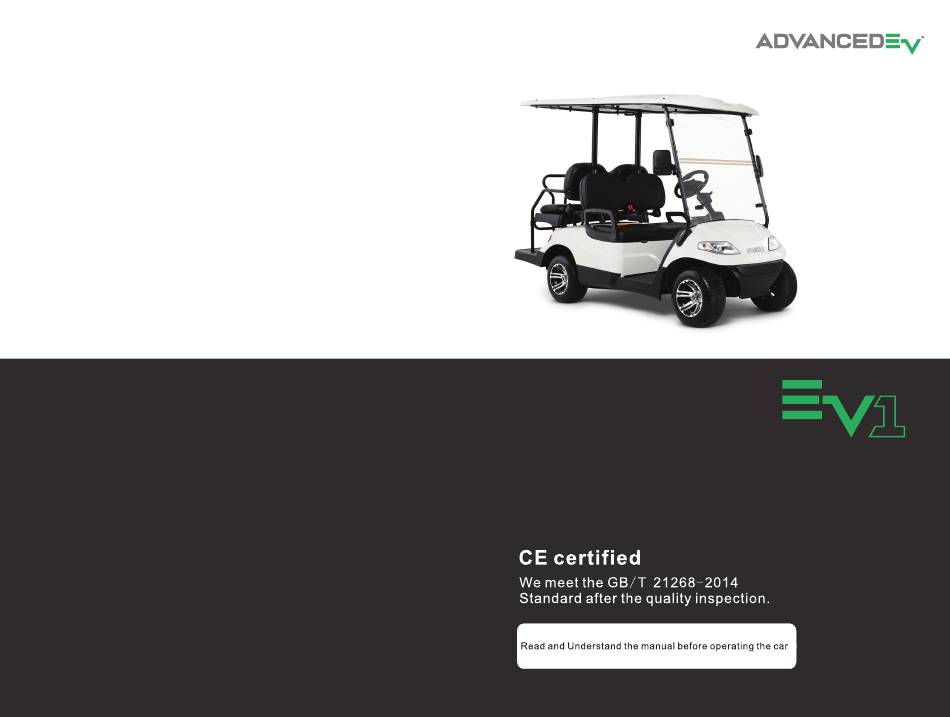

Page 1 909-938-7721 advancedev.com...
Page 2 Preface IMPORTANT MANUAL INFORMATION Dear Users, NOTE: Particularly important information Great thanks for purchasing our company's electric is distinguished by using the AdvancedEV continually seeks following symbols and notes : improvement in product quality. cars. While adopting advanced technology of Europe Even though this manual contains and the US and main imported components, the cars are...
Page 3: Table Of Contents
Content Important Labels Operational Safety 5-11 Structure and Specifications 12-13 Operation And Control 14-16 Preparation Before Operating 17-26 Maintenance Storage 28-29 After-Sale Service 1266/1268 Trouble Shooting Chart...
Page 4: Important Labels
Important Labels Safety Operation S A F E T Y A N D Before operating: I N S T R U C T I O N 1. Read this manual and all the other operations or labels marked on the car body LABELS before operating.
Page 5: Operational Safety
Operation Safety Structure And Specifications 1. Keep your hands on the steering wheel and your eyes on the path ahead. 2. Be especially careful when backing in the car in crowded places. Please keep watching back and roll back slowly. 10 11 12 13 3.
Page 6 Structure And Specifications Structure And Specifications (AEV·2)Whole car specifications (standard) : (AEV·4)Whole car specifications (standard) : detailed detailed specification refers to actual contract specification refers to actual contract controller Curtis controller 1266A-5201/275A (USA Brand) controller Curtis controller 1266A-5201/275A (USA Brand) battery battery Lead acid battery 8V x 6pcs...
Page 7 Structure And Specifications Structure And Specifications (AEV·4F)Whole car specifications (standard) : (AEV·6)Whole car specifications (standard) : detailed specification refers to actual contract detailed specification refers to actual contract controller Curtis controller 1266A-5201/275A (USA Brand) controller Curtis controller 1266A-5201/275A (USA Brand) battery battery Lead acid battery 8V x 6pcs...
Page 8 Structure And Specifications Structure And Specifications (AEV·6F)Whole car specifications (standard) : (AEV·8)Whole car specifications (standard) : detailed detailed specification refers to actual contract specification refers to actual contract controller Curtis controller 1266A-5201/275A (USA Brand) controller Curtis controller 1268-5403/400A (USA Brand) battery battery Lead acid battery 8V x 6pcs...
Page 9: Operation And Control
Operation And Control Operation And Control Turning on Main Switch Voltage Indicator 1. Shifting the switch to RUN position Voltage Indicator is to show the then can turn on the power supply of electricity and remains custom to car. charge on time. The voltage will show full charged when charing enough time.
Page 10 Pre Operation Pre Operation BATTERY Pre operation checks should be made each time you use your golf car. Get in Charge batteries before every use. the habit of performing the following See charging steps in chapter 6. checks in the same way so that they become second nature.
Page 11: Maintenance
Pre Operation Maintenance BATTERY CARE Steering system Check the steering system whether there Battery electrolyte is poisonous and is too much empty steering dangerous, causing severe burns, etc. It a. Put the steering wheel up and down, contains sulfuric acid. Avoid contacting front and back with skin, eyes and clothes.
Page 12 Maintenance Maintenance BATTERY CHARGING Do not disconnect the DC output Read and understand the manual cord from the battery receptacle provided with your car's battery when the charger is on because that charger before charging batteries. may cause an explosion. 3.
Page 13 Maintenance Maintenance 2 . link the cables as the picture Before charging: Only add distilled water. If fluid is below the top of the plates, add just enough to cover plates. After charging: Check that the fluid level is appropriately 1/4 to 1/2 inch above the plates and 1/4 to 3/8 inch below the level is low.
Page 14 Maintenance Maintenance Check the oil level in the gearbox CAUTION Be sure the main switch be in the"off" Gearbox Oil position, before you check the wheel or braking system. 1. Place the car on a horizontal level 2. Lift the cushion 3.
Page 15 Maintenance Maintenance Do not fix brake cable too tight as this CAUTION will make the brake adjust can't work Before adjusting the brake, tread perfectly, and therefore lower down the the brake pedal several times to brake performance. adjust the brakes. To adjust the brake distance: 1.
Page 16: Storage
Maintenance Storage C=Check CA=Check Adjust R=Replace S=Service CL=Clean and Lubricate L=Lubricate Perform the following preparations when leaving your golf car unused for a long time: 20 rounds 500 rounds 250 rounds 1000 20 hours 250 hours 500 hours rounds rounds 20 hours 2500 miles 1000 hours...
Page 17: After-Sale Service
Warranty And After-Sale Service Warranty And After-Sale Service Please read the following carefully for your interest and good after sales service Valid Warranty from us. Buyers need to fill warranty card, stamp and send back to us. The warranty comes into effect upon we receive and confirm. What is under warranty and valid date Please read this instruction book carefully after you buy car from us.
Page 18: 1266/1268 Trouble Shooting Chart
1266/1268 Trouble Shooting Chart Serial No. Programmer Display HW FAILSAFE THROTTLE FAULT1 SPEED SENSOR FAULT MOTOR STALL LOW BATTERY VOLTAGE OVER VOLTAGE THEMAL CUTBACK MAIN DRIVER ON AUX COIL FAULT MAIN DRIVER OFF MAIN WELDED PRECHARGE FAULT FILED MISSING AUX DRIVER OFF CURRENT SENSOR FAULT DRIVER OVER CURRENT —...
