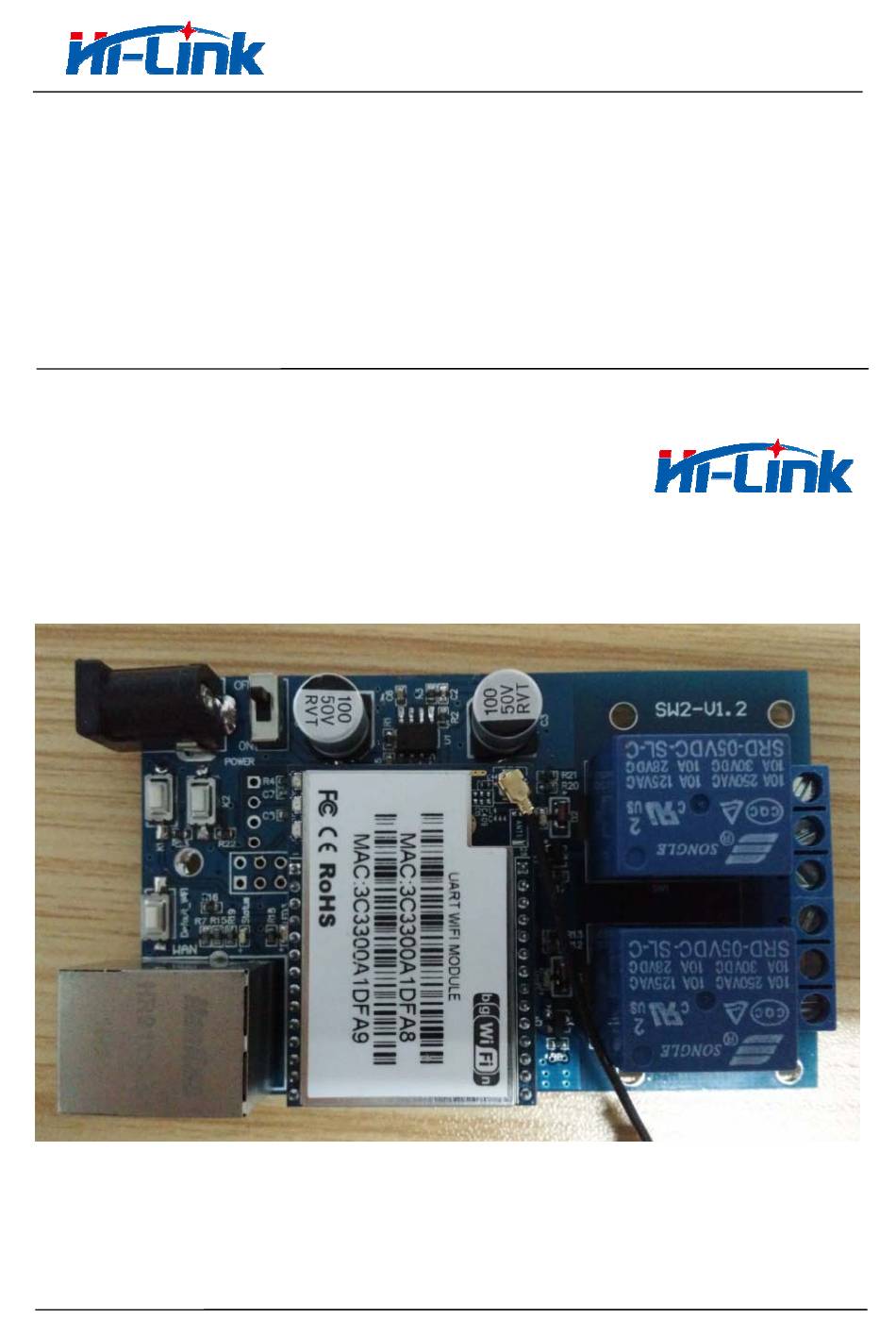

- Page 1 深圳市海凌科电子有限公司 Shenzhen Hi-Link Electronic Co.,Ltd Http://www.hlktech.com Tel:0755-83575155 Fax:0755-83575189 HLK-SW2 User Manual Serial to Ethernet Shenzhen Hi-Link electronic Co., LTD Shenzhen Hi-Link Electronic Co.,Ltd...
- Page 2 深圳市海凌科电子有限公司 Shenzhen Hi-Link Electronic Co.,Ltd Http://www.hlktech.com Tel:0755-83575155 Fax:0755-83575189 Summary HLK‐SW2 is a new professional remote control terminal launched by Hi‐Link electronic , is a realization of TCP through the gateway and establishes communication connection with the remote device, it can be based on without modifying the original protocol, to realize the connection of network client and equipment directly, save the development cycle, enhance the user experience. Compared with the traditional dynamic domain name plus router port mapping mode,has the ...
-
Page 3: Electrical Characteristics
深圳市海凌科电子有限公司 Shenzhen Hi-Link Electronic Co.,Ltd Http://www.hlktech.com Tel:0755-83575155 Fax:0755-83575189 Remote Web management Network management Configuration file import and export WEB software upgrade Other Parameters Status indicator Status indicator Operating temperature：‐20‐70℃ Operating humidity：10%‐90%RH（unfrozen） Environmental standard Storage temperature：‐40‐80℃ Storage humidity：5%‐90%RH（unfrozen） Additional properties Frequency bandwidth optional：20MHz、40MHz，Automatic Electrical Characteristics Input Power：5V～12V Input Current：1A Relay Maximum input voltage：220V Relay Maximum Input Current：10A... - Page 4 深圳市海凌科电子有限公司 Shenzhen Hi-Link Electronic Co.,Ltd Http://www.hlktech.com Tel:0755-83575155 Fax:0755-83575189 Dimensions HLK-SW2 Dimension（TOP view） ： × × Note 19mm Shenzhen Hi-Link Electronic Co.,Ltd...
-
Page 5: Hardware Instruction
深圳市海凌科电子有限公司 Shenzhen Hi-Link Electronic Co.,Ltd Http://www.hlktech.com Tel:0755-83575155 Fax:0755-83575189 Hardware instruction Some features of based board are shown below ： HLK-SW2 General development start kit Interface introduction Name Tag No. Description Function DC power Power DC input, voltage range:5～12V Micro controller running status lights, 1 second flash Outside Status Light LED3 once interface Network port WAN Connected to the LAN port of router Binding Post P1‐P8 2 way 220v，10A relay Indicates the connection status of the client and the ... - Page 6 深圳市海凌科电子有限公司 Shenzhen Hi-Link Electronic Co.,Ltd Http://www.hlktech.com Tel:0755-83575155 Fax:0755-83575189 ON: client and server has been connected Off: client and server is not connected Flashing: The client and server is going on data communication WIFI indicator, when WIFI working, WIFI light starts WIFI WIFI blinking, if it has data transmission , accelerate flashes Indicates the Work status of relay ...
- Page 7 深圳市海凌科电子有限公司 Shenzhen Hi-Link Electronic Co.,Ltd Http://www.hlktech.com Tel:0755-83575155 Fax:0755-83575189 Note:To ensure the normal operation, please ensure that you have bought our HLK‐SW16 development kit. As shown below HLK‐RM04 module HLK‐SW2 based board 2.4G flexible antenna Shenzhen Hi-Link Electronic Co.,Ltd...
- Page 8 深圳市海凌科电子有限公司 Shenzhen Hi-Link Electronic Co.,Ltd Http://www.hlktech.com Tel:0755-83575155 Fax:0755-83575189 5V 2000mA power supply Network Cable (optional) Please connect the module well as the way shown in the followed picture: Please note the direction that the HLK-RM04 module plug in the carrier board! Shenzhen Hi-Link Electronic Co.,Ltd...
- Page 9 深圳市海凌科电子有限公司 Shenzhen Hi-Link Electronic Co.,Ltd Http://www.hlktech.com Tel:0755-83575155 Fax:0755-83575189 2.12.1 System principle. The whole system consists of server, terminal program and client components, as shown in fig: 1) server Receiving device and client registration, to assist the client to find equipment and establish the connection 2) device Automatically connect to the server after the device is started 3) the client Run the client will automatically connect to the server, to establish a connection to terminal equipment with the aid of a server. 2.2Look over the module P2P account and password 1. ...
- Page 10 深圳市海凌科电子有限公司 Shenzhen Hi-Link Electronic Co.,Ltd Http://www.hlktech.com Tel:0755-83575155 Fax:0755-83575189 4. Enter the 192.168.16.254/p2p.asp in your computer's web browser,enter the user name admin,password admin, click OK. To view account and password; at the same time, can change the password on this interface (account can not be modified). Shown as the following diagram: Shenzhen Hi-Link Electronic Co.,Ltd...
- Page 11 深圳市海凌科电子有限公司 Shenzhen Hi-Link Electronic Co.,Ltd Http://www.hlktech.com Tel:0755-83575155 Fax:0755-83575189 Note: the account and passwords are case sensitive ！！！） 2.5 Open P2P software, enter the account number and password, and click Connect, as shown in the picture below： 1.Connection If SW16 module in the LAN, then the software will automatically connect to the module through ...
-
Page 12: Time Displays
深圳市海凌科电子有限公司 Shenzhen Hi-Link Electronic Co.,Ltd Http://www.hlktech.com Tel:0755-83575155 Fax:0755-83575189 Note: This picture shows is the PC side, If you use mobile client,just as same way. 2.Connection Status Displays The lowermost interface displays the connection status. 3.Time Displays The bottom screen display items shows the current time 4.On And Off Click the button Can control the opening and closing of the relay 0, click the all open all closed ,the 16 groups can be fully open and fully closed. 5.Time calibration SW2 comes with clock chip, you can click button to upgrade the time. ... - Page 13 深圳市海凌科电子有限公司 Shenzhen Hi-Link Electronic Co.,Ltd Http://www.hlktech.com Tel:0755-83575155 Fax:0755-83575189 6.Advanced Click the Advanced button to expand the interface,from where you can control corresponding properties through the button.Shown as below: 7.Modify button’s name Firstly,you need to click on the button 0,in the place here will show the name of this button,，modify the 0 to TV ,Then click the button,after that you will find the button 0 become to TV already. 8.Set inching function Firstly choose one button you want to set for，click on the button ,in the inching time item ， input the time you want to set,like 5,then click the button commit If the pop‐up prompt window reads: it means you already set the inching function successfully. When you open the button,it will close automatically after 5 second. Shenzhen Hi-Link Electronic Co.,Ltd...
- Page 14 深圳市海凌科电子有限公司 Shenzhen Hi-Link Electronic Co.,Ltd Http://www.hlktech.com Tel:0755-83575155 Fax:0755-83575189 Set the timer function First choose the button you want,like 0,select timer ,then you can set timer function now.，if you want to set the time to 8am On Monday,set it firstly ,then click the add button ,Then you will get the clue： ,at this time,the time you add will show in the time list： ,click the submit button: ,when you get the pop‐up window: ,it shows the timer function for 0 have finished.On Monday 8AM,the relay for button 0 will open auto.If you want delete it,just choose the time in the list: ,then click delete button ,you will get clue window : ,it means the time have been deleted. 10.Remove the inching and timer function ， then click the submit button,if First,click the button like 0,then choose the button or you see the window ,which shows you have remove it succesfully. 11.Inquiry Fist click the button like 0,hen click on the inquiry button: ,ou can see the parameters of button 0. ...
