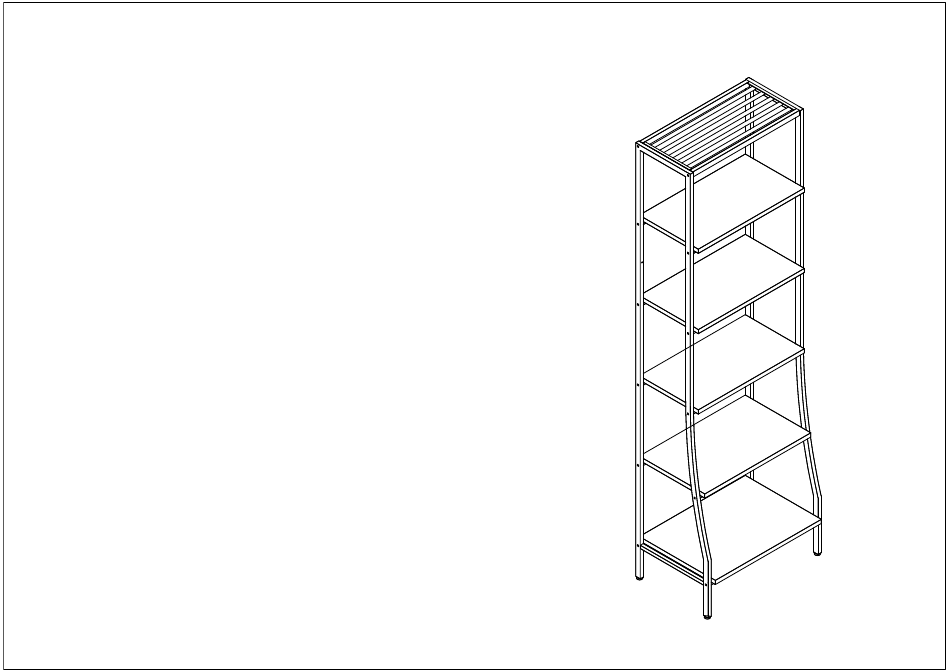

- Page 1 AI_BS1130-COM_V1 Leighton Bathroom Collection 6 - Tier Etagere Style#BS1130-COM UPC#050276996644 >>assembly instructions...
- Page 2 AI_BS1130-COM_V1 Congratulations on your latest Etagere purchase. Now what? Don’t start sweating over this box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions and you’ll be on your way to transforming your room in no time.
- Page 3 AI_BS1130-COM_V1 table of contents introduction page 2 hardware page 4 parts list page 5 assembly step 1 : assemble the metal frame page 6 step 2 : attach the wood shelves to the metal frame page 7 step 3 : mount Etagere to the wall page 8 caution page 9...
- Page 4 AI_BS1130-COM_V1 Hardware A x24 Bx20 C x4 D x2 E x2 1/4"x1 3/16" bolt 5/32”x1” bolt leveler 5/32”x2 3/8” mounting screw wall anchor F x1 hex wrench...
- Page 5 AI_BS1130-COM_V1 ITEM DESCRIPTION QUANTITY left side frame right side frame top frame ③ support bar top wood shelf middle wood shelf ⑤ bottom wood shelf ④ ② ⑤ ④ ⑤ ① ④ ⑥ ④ ⑦ ④...
- Page 6 AI_BS1130-COM_V1 STEP 1 A x24 C x4 1/4"x1 3/16" bolt leveler ③ ④ ② ④ ④ F x1 ④ hex wrench ④ ④ ④ ④ ④ ① 1. Screw four levelers Cx4 into the bottom of left ④ and right side frames 2.
- Page 7 AI_BS1130-COM_V1 STEP 2 ③ Bx20 ⑤ 5/32"x1 bolt ④ ④ ② ⑤ ④ ④ ① ⑤ ④ 1. Attach top wood shelf x3, middle wood shelf and bottom wood shelf to support bar x10 using bolts Bx20. Only tighten ④ bolts halfway.
- Page 8 AI_BS1130-COM_V1 STEP 3 A: If mounting into drywall,drill 1/4″pilot holes into drywall and insert plastic wall anchor (Ex2) into pilot holes. Tighten mounting screw (D) into plastic wall anchors (E) through holes in the back tubes of the unit. B: If mounting to studs in wall. screw mounting screws (D) directly into studs through holes in the back tubes of the unit.
