Xiamen Hanin Electronic Technology HN 3378SR-000R Instruction Manual

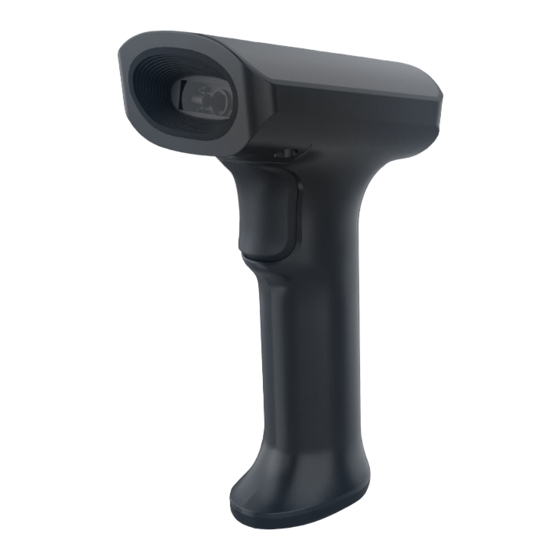

Handheld Wireless Barcode Scanner

HN 3378SR-000R
Instruc�on Manual
How to Use the Communica�on Charging Base
1) Connect one end of the cable(RJ45) to the charging base.
2) Connect the other end of the cable to the HOST.
Scan the barcode to achieve the
connec�on of the scanner and the
communica�on charging base.
①
②

Appearance

①
②
③
⑤ ⑥
① Sound Hole ② Scan Window
⑥ Power off Bu�on ⑦ Charging contacts (It is used with the
communication charging base)
3) Put the scanner into the charging base.
③
Communica�on Charging Base
④
⑧
⑦
③ Scan Bu�on ④ Indicator ⑤ Type-C Cable Interface
⑧ Indicator ⑨ RJ45 Cable Interface
Power on/off and Restart
Power on:
1.A�er it is connected to the host, it will be automa�cally power on.
2.When it is not connected to the USB cable, you can press and hold
the bu�on to power on.
Power off:
1.Press and hold for 15s to power off.
2.It will be automa�cally powered off without any touch a�er 15mins.
Restart:
If the scanner crashes or does not respond, you can insert the clip into
the swith key in the bo�om, then press the scanning bu�on to restart
the scanner.

Maintenance

The reading window must be kept clean.
Avoid hard and rough objects to scratch the reading window.
Remove the stains from window with a brush.
Please use a so� cloth to clean the window, such as glasses cloth.
Do not spray any liquid on the window.
Do not use any cleaner other than cleaning water.

LED Indicator

LED Indicator
Color
Red light always on
Red light off
Red light flash rapidly
Green light flash slowly
Green light always on
Red & yellow light flash by turns
Yellow light always on
⑨
Communica�on Charging Base
Color
Green light always on
Blue light always on
Cyan light always on
Buzzer
Status
Power on
Scan Successfully
Restore Factory Deafult
Scan the barcode to restore all se�ngs to the factory default state.
Note: Please use the "factory reset" func�on carefully. A�er reading
this barcode, the current parameter se�ngs will be lost and replaced
with the factory default values.
Descrip�on
Charging
Charging completed
Low power
Bluetooth is not connected
Bluetooth is connected
Charging and BT is not connected
Charging and BT is connected
Descrip�on
Charging
Bluetooth is connected
Charging and BT is connected
Beeping �mes
3 �mes
1
