Summary of Contents for Intertec Data Systems TC DN

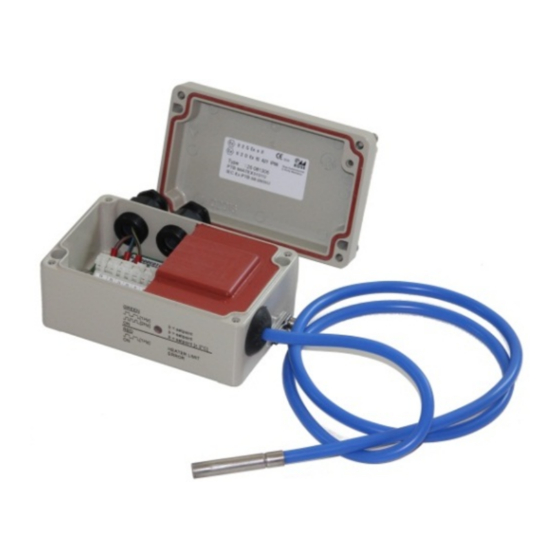

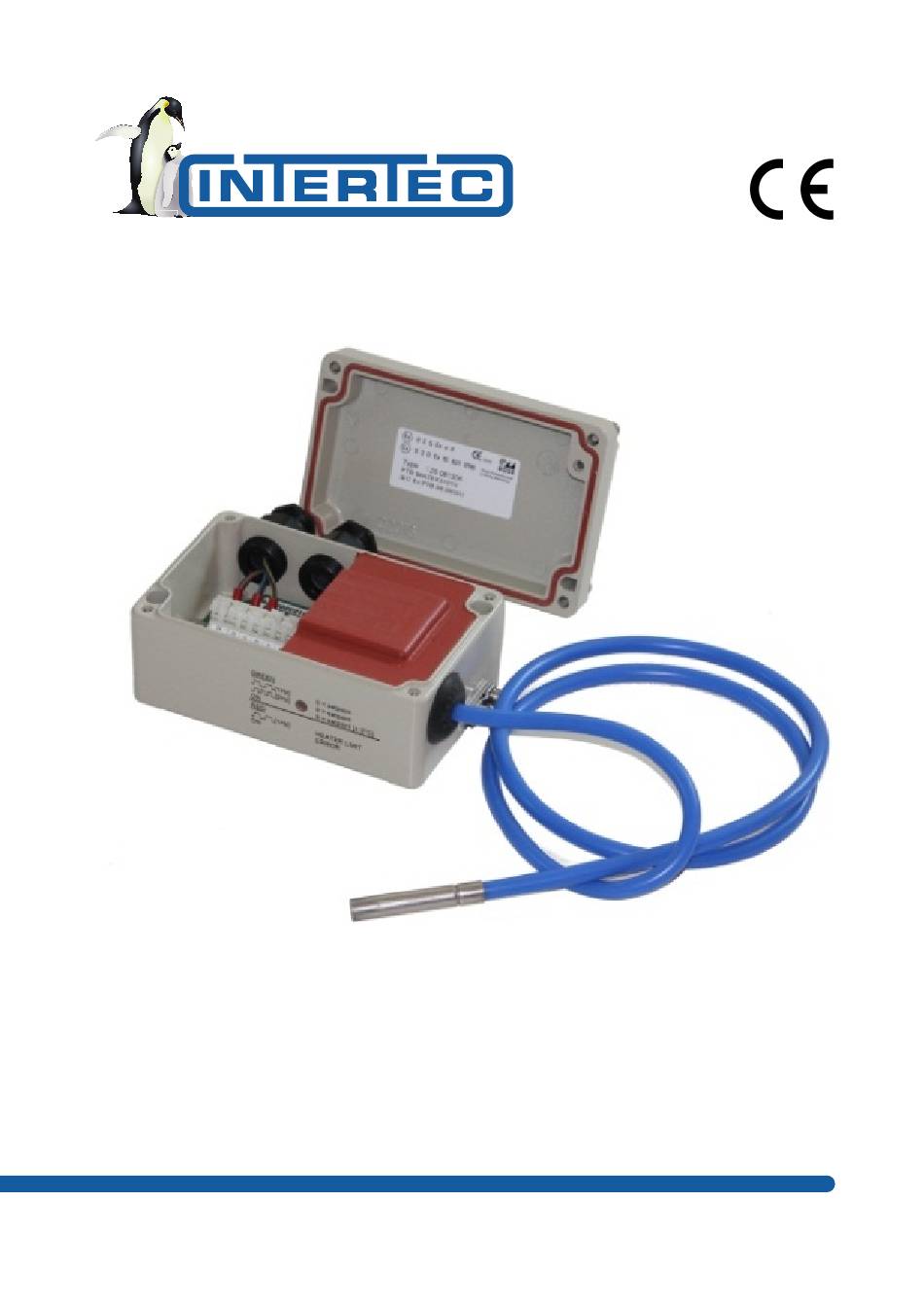

- Page 1 Operating Instructions Digital temperatur controller TC DN HOM179199243Ien-5 • 23/08/2021...
- Page 2 www.intertec.info Table of contents 1 Use ................................... 3 2 Explanation of symbols for warnings and signal words .................. 3 3 Installation Instructions ............................ 3 4 Device Description .............................. 3 5 Technical Data ................................ 3 6 Installation................................ 4 7 Connection................................ 4 8 Test software and setup software.........................
- Page 3 Operating Instructions Digital temperatur controller TC NOTICE The digital temperature controller TC DN is intended, among other things, for controlling the temperature of NOTE enclosures, cabinets or heat trace cables. It is essential to pay attention to this safety advice as you may otherwise incur material damage.
- Page 4 www.intertec.info Operating Instructions Digital temperatur controller TC Operating temperature at - 25 to + 80 °C Room Imax 120 V AC 230 V AC nominal operation temperature up to Protection class IP66 +40°C 10 A 1200 W 2300 W Installation position any position +50°C 8.7 A...
- Page 5 www.intertec.info Operating Instructions Digital temperatur controller TC In the case of failure of the temperature controller or performance fluctuations, please check the operating conditions. See also: Installation [}Page 4]. If the device is defective, it must be removed and sent Ground back to the manufacturer for repair.
- Page 6 INTERTEC for heating TC DN systems and accessories. complies with the provisions of the following directives These instructions do not claim to take all 2014/35/EU (LVD), 2014/30/EU (EMC), 2011/65/EU designs, options or changes into...
