Dorji DAD03A Operation Manual

Hide thumbs
1
2
3
4
5

Advertisement

Table of Contents

DAD03A
Operation Manual for Demo Kit DAD03A
V1.01

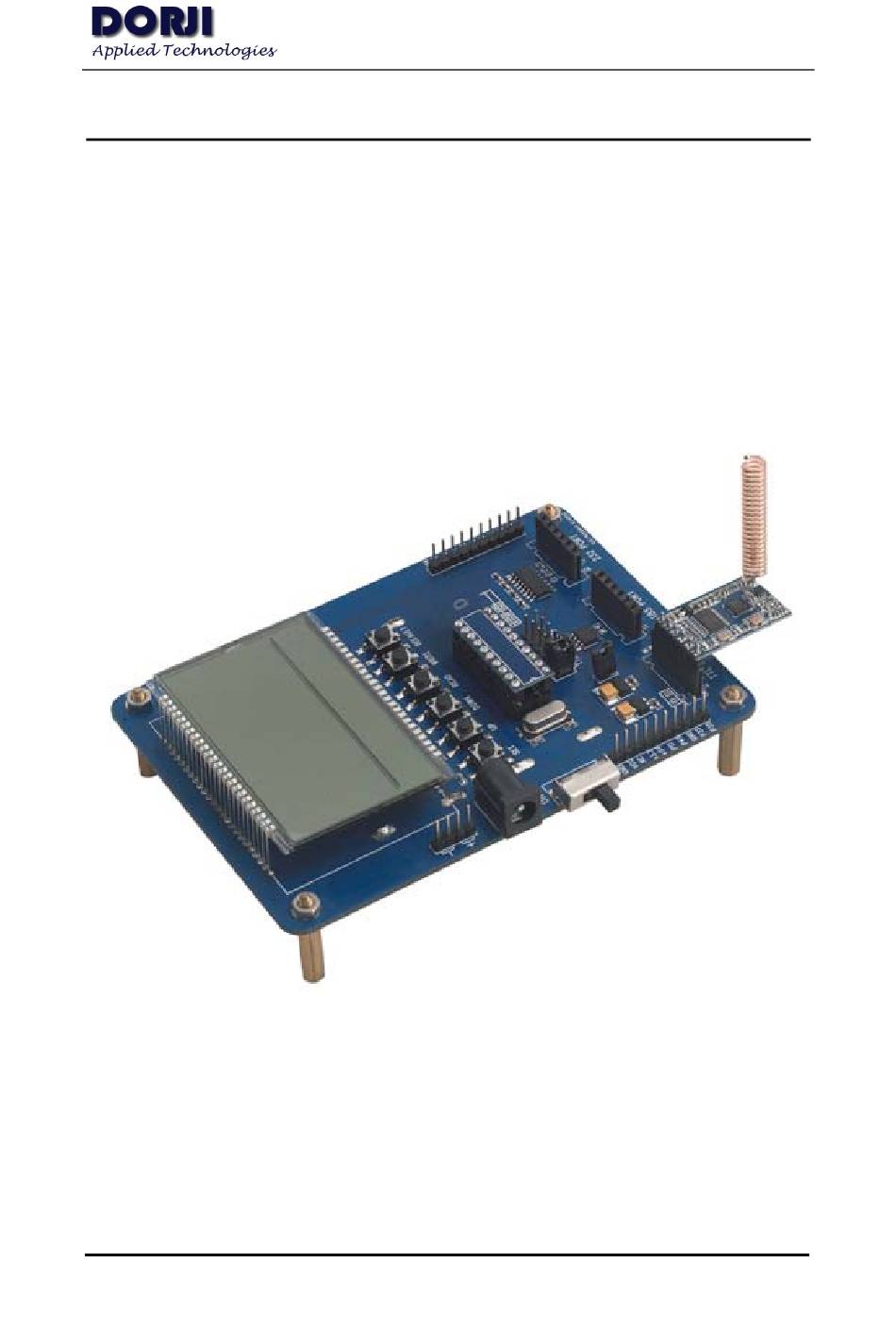

The demo kit DAD03A is designed for low cost data transmission module DRF4432D20I. The kit
mainly consists of LCD, Keypad, and MCU converter board. Users can change the center
frequency, output power and data format through keypad and monitor related changes by LCD.
The kit also includes TTL, RS232 and RS485 interface for different types of DRF4432D20I
module. At present DORJI only provides TTL version and other interfaces of modules will be
released in the near future. Users are welcome to visit our website for newest information.
Revision 1.01
Page of 5
1
Oct. 2011

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DAD03A and is the answer not in the manual?

Questions and answers

Related Manuals for Dorji DAD03A

Summary of Contents for Dorji DAD03A

  • Page 1 Operation Manual for Demo Kit DAD03A V1.01 The demo kit DAD03A is designed for low cost data transmission module DRF4432D20I. The kit mainly consists of LCD, Keypad, and MCU converter board. Users can change the center frequency, output power and data format through keypad and monitor related changes by LCD.
  • Page 2 DAD03A Revision 1.01 Page of 5 Oct. 2011...
  • Page 3 DAD03A 1. LCD Icon Function Signal strength indication FREQ Center frequency; it is changed by times of 1MHz Output power level; 0~7 Number of data packages sent; 0000~FFFF Number of data packages received: 0000~FFFF RF FSK data rate; 1.2 ~ 38.4k bps Transmit frequency deviation;...
  • Page 4 DAD03A 2. KEYPAD SET: This button is used to start the setting of parameters. After pressing SET button, users can use this button to increase the value of selected parameters. DOWN: After pressing SET button, users can use this button to decrease the value of selected parameters.
  • Page 5 DAD03A Dorji Industrial Group Co., Ltd reserves the right to make corrections, modifications, improvements and other changes to its products and services at any time Dorji Applied Technologies and to discontinue any product or service without A division of Dorji Industrial Group Co., Ltd notice.
