Summary of Contents for NuvoMed TBP-6/0923

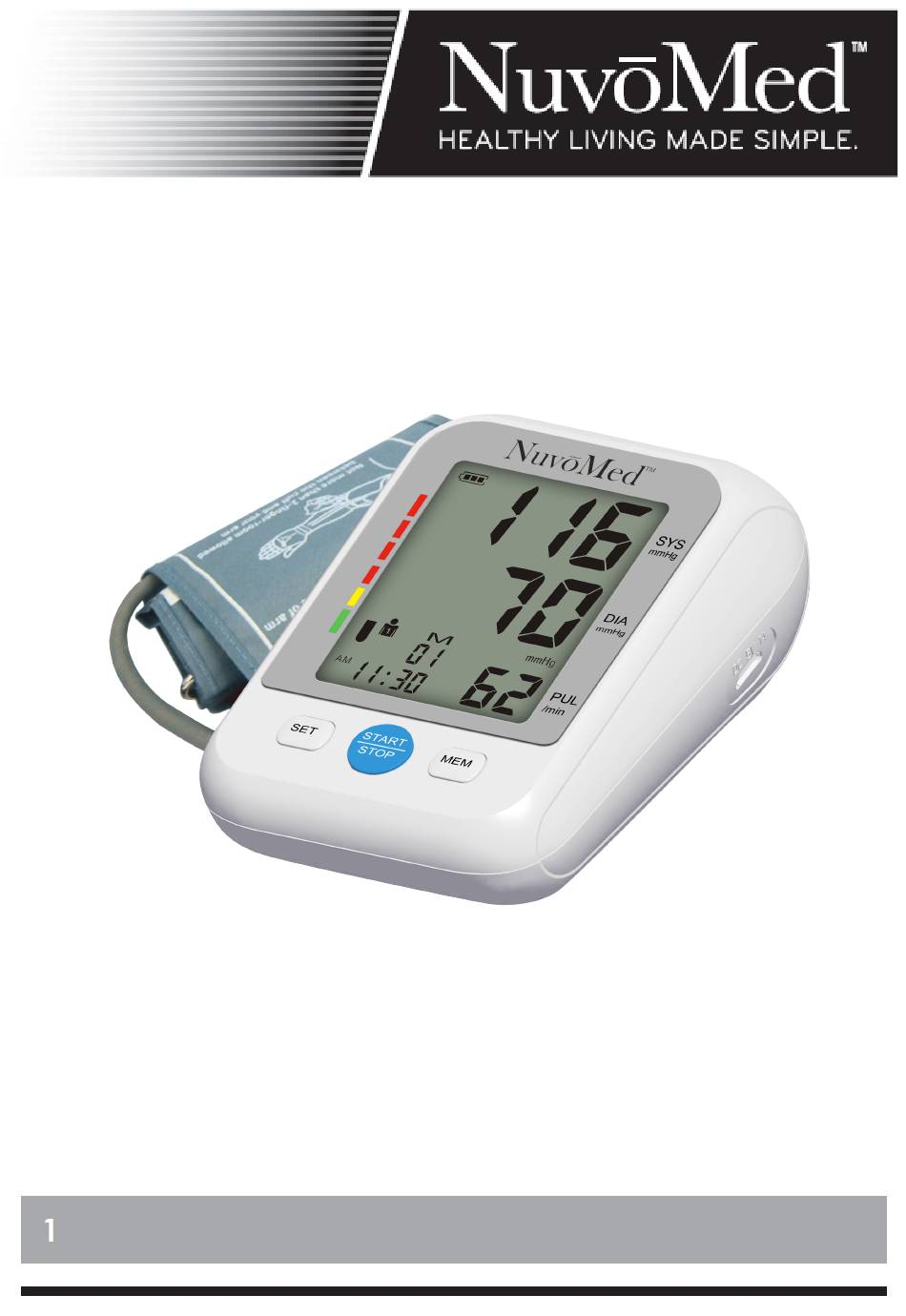

- Page 1 TBP-6/0923 Blood Pressure Monitor Instruction Manual Please read all instructions carefully and retain for future use...
-
Page 2: Table Of Contents
Know your Device Indica on for Use Warning Ba ery Warning About Blood Pressure Prepara on Setup your Device Se ng of User, Year, Date and Time Before Measurement Measurement Using Memory Care and Maintenance Troubleshoo ng EMC Declara on FCC Compliance Specifica ons Warranty Informa on... -
Page 3: Know Your Device
Know your Device Indications for Use This arm blood pressure monitor is intended to be used to measure blood pressure and pulse rate from the upper arm by using the oscillometric method, at home. This device is intended for use on adults only and is not for use on groups such as neonatal babies, children, pregnant women, or pre-eclamptic patients. - Page 4 Warning (continued) • Do not immerse this device in water or clean with cleaning products, alcohol, or solvents. Carefully follow cleaning instructions provided. • Remove batteries if this device will not be used for three or more months. • Ensure that the device is used in the environment specified in the EMC declaration in this IM, otherwise, may result in improper operation.
-
Page 5: About Blood Pressure
BLOOD PRESSURE INDICATOR CHART (Based on 2017 ACC/AHA guidelines) 140 & Stage 2 Hypertension * above Stage 1 Hypertension * 130-139 Yellow Elevated BP * 120-129 Green Normal BP Below 120 Below 80 80-89 90 & above Diastolic mmHg (Bottom Number) *Consult A Physician When systolic and diastolic pressure fall into different categories, the higher pressure determines color code. -
Page 6: Prepara On
Cuff Display Set Button USB power supply port Start/Stop Button Memory Button Voice Battery Cover Air Socket Low battery Systolic pressure Blood pressure classification Diastolic pressure Average Value User number Unit Indicator Memory Times Pulse rate Year/Date/Time Heartbeat... -
Page 7: Setup Your Device
Set Up Your Device Figure 1 Ba ery Installa on 1. Take off the ba ery cover on the back of this device. (Figure 1) 2. Insert 3 AA alkaline ba eries according to the + and – markings. (Figure 2) Figure 2 3. -
Page 8: Se Ng Of User, Year, Date And Time
S S etting of User With device turned off, press and release “SET” bu on to show the current user. Press “SET” bu on to toggle between User 1 and User 2. To select user, press “START/STOP” to confirm and then the device turns off. S S etting of Year, Date, Time (12-hour/24-hour System) With device turned off, press and hold “SET”... -
Page 9: Before Measurement
Before Taking a Measurement For most accurate results, measurements should be taken in the same circumstances and at the same me every day. This device can be applied to either arm, but preferably the le . Use the same arm for each measurement. - Page 10 M M easurement (con nued) 4. While si ng upright in a chair with your feet flat on the floor, press “START/STOP". Symbols on screen will flash and cuff will begin to inflate. Do not move, ac vate arm muscles, or talk during measurement. 5.
-
Page 11: Care And Maintenance
Care and Maintenance C C a a re and Maintenance For regular maintenance, this device only needs to be wiped gently with a so , dry cloth. Never immerse this device or any components in water. Do not carry out repairs of any kind yourself. If a defect occurs, please contact your local authorized distributor. -
Page 12: Emc Declara On
Guidance and Manufacturer’s Declara on - Electromagne c Immunity this device is intended for use in the electromagne c environment specified below. The customer or the user of this device should ensure that it is used in such an environment. Immunity Test Compliance Electromagnetic... - Page 13 Immunity Electromagnetic IEC 60601 Compliance Environment - Guidance Test Level Test Level ± 8 kV ± 8 kV Floors should be wood, Electrostatic contact contact concrete, or ceramic tile. If discharge (ESD) ± 2 kV, ± 2 kV, floors are covered with IEC 61000-4-2 ±...
-
Page 14: Fcc Compliance
This device complies with Part 15 of the FCC rules. Opera on is subject to the following two condi ons: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired opera on. -
Page 15: Specifica Ons
TBP-6/0923 Model Measurement Method o l l Display Measurement Range Pressure: 0 to 299 mmHg Pulse: 40 to 180 beats/minute Accuracy ± Pulse Rate: Within 5% of reading ± Inflation Automatic inflation by pump Deflation Automatic rapid deflation Pressure Detection... -
Page 16: Warranty Informa On
S S ERVICE AND REPAIR: If service is required for this product, you should first contact Nuvomed Inc. Customer Service at info@nuvomed.us or by calling Toll- Free Number 1 (877) 612 5619, Monday to Friday 10 am to 6pm EST.
