Instruction Manual

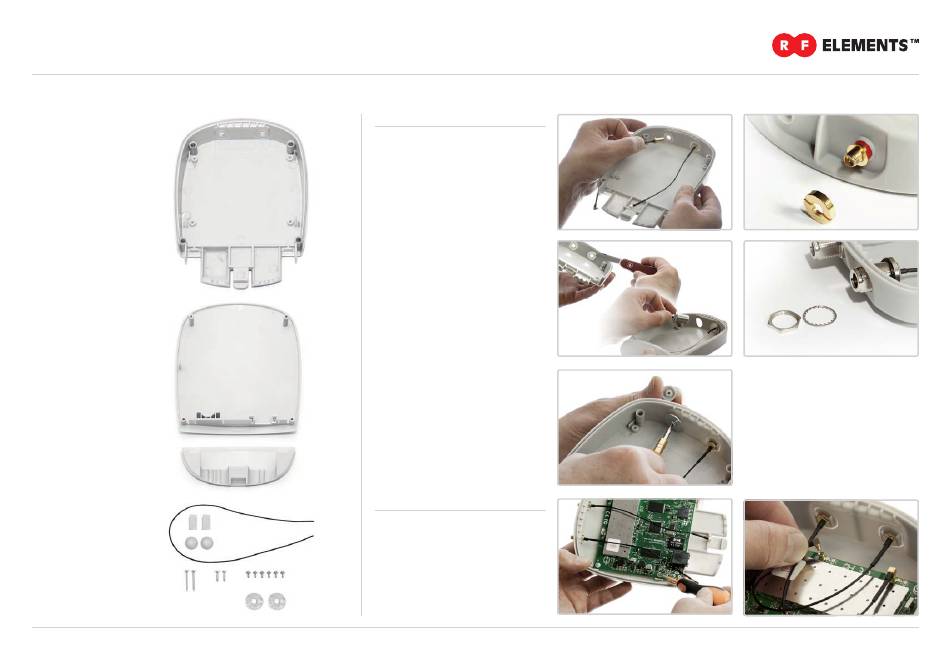

Package Contains:

1.
Body
2.
Top Cover
3.
Bottom Cover
4.
Seal
5.
Light Guides
6.
Plastic Caps
7.
Screws 2.9×25mm (2×)
8.
Screws 2.9×12mm (2×)
9.
Screws 2.9×6.5mm (6×)
10. Washers (2×)
1
2
3
4
7
8
www.4Gon.co.uk info@4gon.co.uk Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299
StationBox® S

1 Installation of Pigtails

A Install the SMA pigtails using special
washer, nut and o-ring.
B When installing N-connectors, expand
the openings using cutter.
C Use Plastic Caps to cover the top
openings when not used for pigtail
installation. Secure Caps with
2.9×6.5mm (the smallest) screws
and washers.

2 Installation of RouterBoard

5
A Install the RouterBoard using
2.9×6.5mm (the smallest) screws.
6
B Connect the pigtails to the RouterBoard.
9
10
RouterBoard is Trademark of MikroTik, Aizkraukles iela 23, Riga, LV-1006 LATVIA
