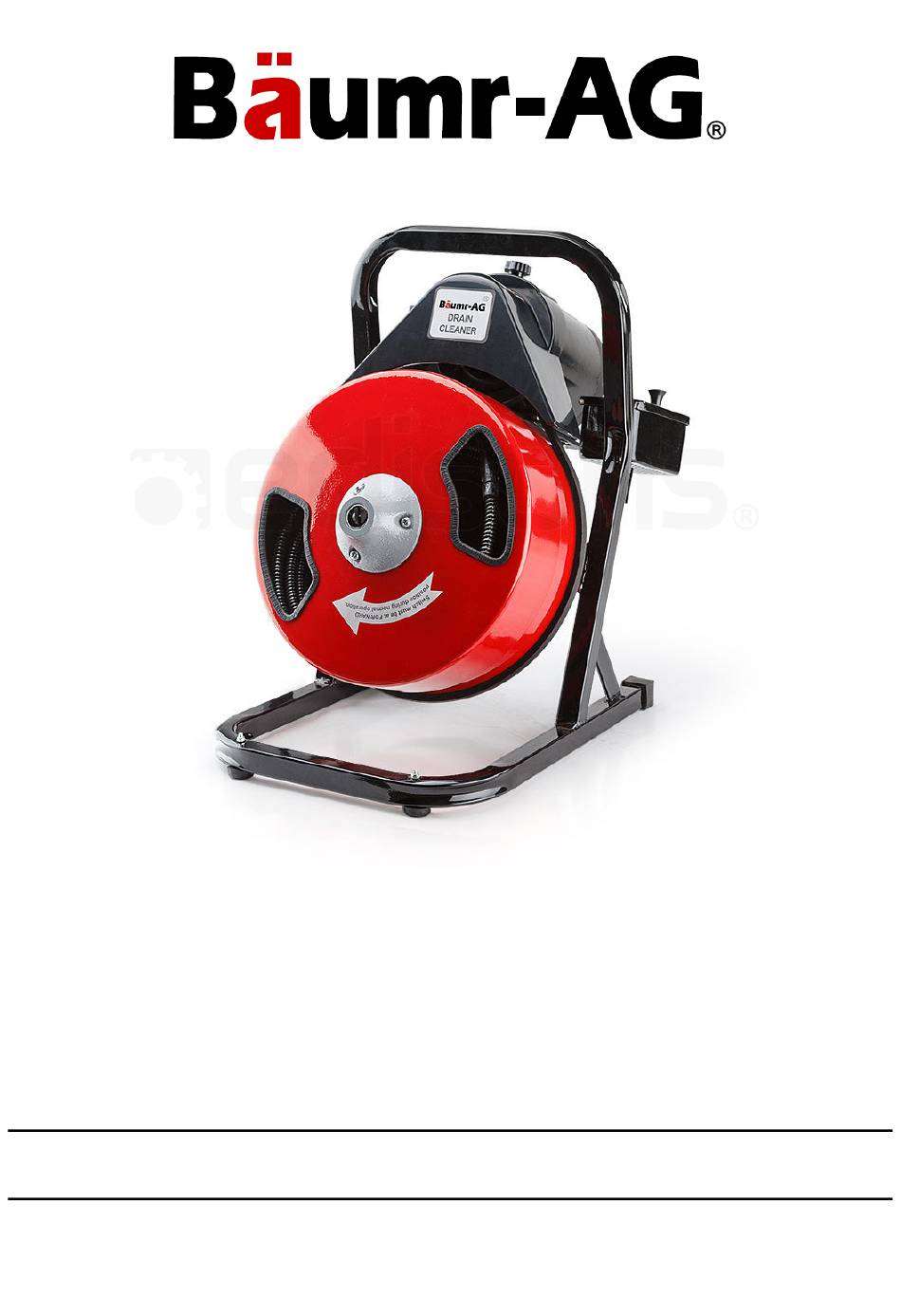

250W Electric Drain Cleaner
User Manual
[Revision 2.0 October 2018]
READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND
MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in
appearance, assembly, inclusions, specifications, description and packaging.
Advertisement
Table of Contents
Summary of Contents for Baumr-AG DCLEAN-SPAU50
- Page 1 250W Electric Drain Cleaner User Manual [Revision 2.0 October 2018] READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in appearance, assembly, inclusions, specifications, description and packaging.
-
Page 2: Table Of Contents
250W Electric Drain Cleaner Table of Contents Introduction ..............................1 Application Safety............................2 General Precautions ..............................2 Work Area Safety ..............................2 Personal Safety ................................ 2 Operational Safety ..............................3 Electrical Safety ................................ 3 Safety when using and Care of Accessory Tools ..................... 4 Maintenance Safety .............................. -
Page 3: Introduction
This manual includes the following major components: • Application Safety • General Operations • Maintenance and Repair • Disassembly and Assembly This manual is copyrighted and should not be copied or quoted, unless otherwise approved by the manufacturer. E&OE © 2018 Baumr-AG... -
Page 4: Application Safety
Wear neat clothing. Do not wear loose cloth or jewellery. Contain your hair. Keep long hair, loose clothes and gloves away from moving parts. Clothes, long hair, and gloves getting caught can result in serious injury or death. E&OE © 2018 Baumr-AG... -
Page 5: Operational Safety
Push the test button. Indicator light will go out and power to the drain cleaner should get cut off. WARNING! IF THE LIGHT DOES NOT GO OUT WHEN THE TEST BUTTON IS PUSHED, THE EQUIPMENT SHOULD NOT BE USED UNTIL PROPER REPAIRS OR REPLACEMENT TO THE GFCI CAN BE MADE. E&OE © 2018 Baumr-AG... -
Page 6: Safety When Using And Care Of Accessory Tools
3. Disconnect the plug from the power source before making any adjustments or storing the drain cleaner. Such preventative safety measures reduce the risk of starting the drain cleaner accidentally. E&OE © 2018 Baumr-AG... -
Page 7: Maintenance Safety
1. Maintain and check machine routinely. Make sure that all electrical wires and parts are working properly. Never use the drain cleaner when it is malfunctioning. 2. Safe-guard the cleaning parts to prevent them from being damaged. E&OE © 2018 Baumr-AG... -
Page 8: Operating Instructions
3. Set the motor power switch to the Forward position. Depress the foot switch with one foot to start the drum rotation. Feed the rotating cable slowly into the drain by pushing the cable towards the drain. E&OE © 2018 Baumr-AG... - Page 9 COULD CAUSE SERIOUS INJURY. Table 2: Cable Applications Cable Size Pipe Size Typical Applications 1/2” 3” to 4” Roof stacks and small floor drains(no roots) 3/8” 2” to 3” Roof stacks, laundry lines and small drains E&OE © 2018 Baumr-AG...
-
Page 10: Maintenance And Repair
If a cable loops over itself in the drum, it will not feed properly. Remove and reload the cable by hand to restore function. If the cable kinks, it is the evidence of abuse and the results from the use of too much pressure or the use of a cable of a wrong size for the line. E&OE © 2018 Baumr-AG... -
Page 11: Troubleshooting
Damaged power cord or Replace cords extension cord Ground fault circuit interrupter trips and will not Short circuit in motor Take motor to authorized repair centre reset. Faulty ground fault circuit Replace ground fault circuit interrupter interrupter E&OE © 2018 Baumr-AG... -
Page 12: Disassembly And Re-Assembly
To install the cable in the drum, simply connect the male end of the cable to the drum-connecting cable, which is already attached to the drum. Then remove the drum V-Belt. Tum the drum clockwise, while pushing the cable into the drum. NOTE THE CABLE SHOULD LAY IN THE DRUM IN A CLOCKWISE DIRECTION. E&OE © 2018 Baumr-AG... -
Page 13: Diagram For Major Components
250W Electric Drain Cleaner Diagram for Major Components E&OE © 2018 Baumr-AG... -
Page 14: Assembly Diagram
250W Electric Drain Cleaner Assembly Diagram E&OE © 2018 Baumr-AG... -
Page 15: Parts List
Bolts Flat Washer Nuts Flat Washer Tool Holder Rear Hub Bolts Drum Shaft Retaining Pin Collar & Set Screw Frame Retaining Pin Spring Rubber Foot Drum Shaft Retaining Pin Bolts Rubber Leg Tip Flat Washer Bolts E&OE © 2018 Baumr-AG... -
Page 16: Specifications
250W Electric Drain Cleaner Specifications Power Supply 240V 50Hz Motor 250W Heavy Duty Coil 13mm x 15m Drum Size 330mm x 160mm Standard Cable 1/2" x 50' (13mm x 15m) Net Weight 36.5kg E&OE © 2018 Baumr-AG... - Page 17 ©2018 Baumr-AG. All rights reserved. No part of this document, including descriptive content, concepts, ideas, diagrams or images may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, scanning or recording, or any information storage and retrieval system, without express permission or consent from the publisher.
