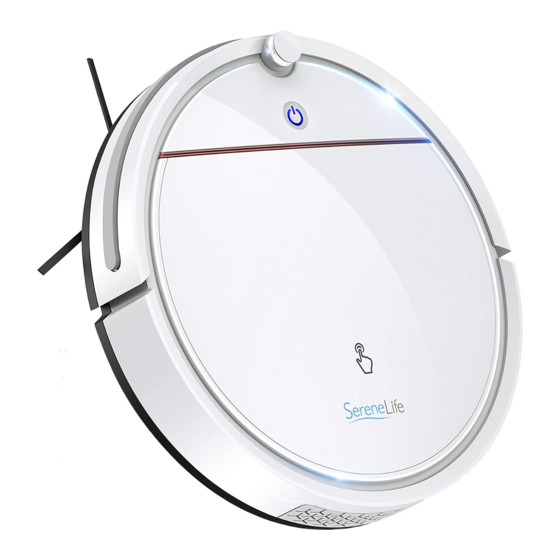

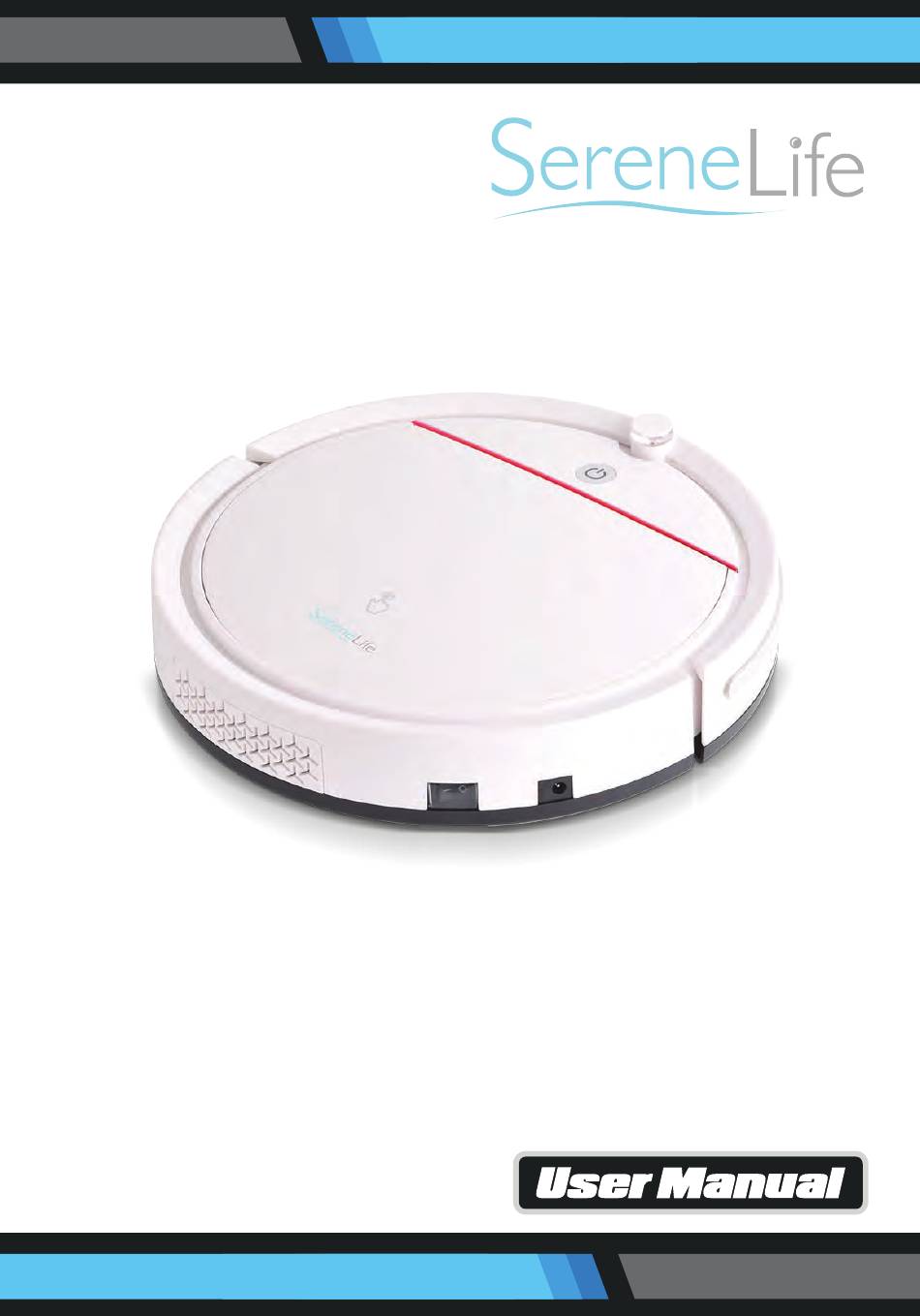

- Page 1 PUCRCX10 Smart Vacuum Cleaner Automatic Robot Cleaning Vacuum, Includes Remote Control for Cleaning Modes and Robot Directions...
-
Page 2: Table Of Contents
Please read this manual carefully before using the product, and keep it in a safe place for future reference. TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS ABOUT YOUR SWEEPING ROBOT USING YOUR SWEEPING ROBOT 1. IMPORTANT TIPS BEFORE USE 2. PREPARATION 3. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of injury or damage, read these safety instructions carefully and keep them at hand when setting up, using, and maintaining this device. • This device can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of this device in a safe way and understand the hazards involved. -
Page 4: About Your Sweeping Robot
ABOUT YOUR SWEEPING ROBOT 1. What’s in the box Main Body x1 Power Adapter x1 Remote control x1 Additional High Side Brushes x 2 Brush x1 Performance Filter x1 Mop Assembly x1 Manual x1 www.SereneLifeHome.com... - Page 5 ABOUT YOUR SWEEPING ROBOT 2. Top & Side Signal Receiver Bumper Start button Swivelling Cover Swivelling Cover Dust bin Power adaptor socket Power switch www.SereneLifeHome.com...
- Page 6 ABOUT YOUR SWEEPING ROBOT 3. Bottom Front Wheel Cliff Detect Sensor Left brush Right brush Cliff Detect Cliff Detect Sensor Sensor Battery cover Air intake Right wheel Left Wheel Bottom Casing Install Socket 4. Dustin Collector Dust bin Primary Filter H10 Filter H10 support www.SereneLifeHome.com...
- Page 7 ABOUT YOUR SWEEPING ROBOT 5. Remote Control Find the robot Start cleaning Stop cleaning Start edge cleaning Start focus cleaning Start random cleaning www.SereneLifeHome.com...
-
Page 8: Using Your Sweeping Robot
USING YOUR SWEEPING ROBOT 1. Important Tips Before Use A. Remove power cords and small objects from the floor that may entangle robot B. Fold tasseled edges of area rugs underneath to prevent tangling robot. Avoid cleaning very dark colored high-pile rugs or rugs thicker than 26 mm as they may cause robot to malfunction. -
Page 9: Preparation
USING YOUR SWEEPING ROBOT 2. Preparation 2.1. Install the side brushes before use. 2.2. Turn on the main power switch on the side of host www.SereneLifeHome.com... -
Page 10: Operation
USING YOUR SWEEPING ROBOT 3. Operation 3.1.1. Press on robot or on the remote control to start cleaning in Auto Mode. (When the machine is working, the "Start/Pause" light will be solid blue.) 3.1.2. Press on robot or on the remote control to stop cleaning. 3.2. -
Page 11: Charging
USING YOUR SWEEPING ROBOT 3.2.2. Focus Cleaning It will set the machine to enter an area and clean by square loop mode. Press on the remote control to start cleaning in Focus mode. 3.2.3. Auto Cleaning Press on the remote control to start cleaning in Auto mode. NOTE: After a cleaning mode is selected, the machine will switch to another cleaning mode automatically according to the actual environment, so as to achieve the best cleaning effect. -
Page 12: Cleaning And Maintenance
USING YOUR SWEEPING ROBOT • On low power, the “ ” button light will keep blinking. • When charging, it will keep blinking. • When fully charged, it will be lit. • Before first use, charge the robot for 6 hours. •... - Page 13 3. Cleaning of Sensor Lens Use soft cloth to gently wipe the sensors, positions indicated below: Cliff detect sensor Cliff detect Cliff detect sensor sensor 4. Cleaning of Mop Assembly When the mop need to be cleaned, remove the mop from mop holder, clean up dirty things, wash mop with water, and then install it correctly.
- Page 14 Mop Holder Mop Holder 5. Battery Replacement 1. Remove screws from battery cover at the unit underside with a screw- driver. 2. Remove cover and take out battery. 3. Slightly open the lock of the battery connecting pug to separate the battery from the unit.
-
Page 15: Troubleshooting
TROUBLESHOOTING LED Status Possible Cause Solution Orange light stays lit Low battery power Charging the robot The indicator light flashes The robot is charging in orange Green indicator light Fully charged lights up Re-set the robot or send Red indicator light lights up Robot Error the robot to seller for repair The product is on dark... - Page 16 WHAT’S IN THE BOX: • Smart Robot Vacuum • Remote Control • (1) US Plug/ Power Adapter • (1) Mopping Board • (1) Mopping Cloth • (2) Pairs Side Brushes ( Left and Right Side Brushes) • (2) H10 Filter www.SereneLifeHome.com...
-
Page 17: Disposal
FEATURES: • Keep it Clean: Sweep, Dust & Vacuum • Includes Remote Controller for Cleaning Modes and Robot Directions • ON/OFF Power Button Unit • Versatile & Convenient Floor Clean Ability • Smart, Self-Programmed Cleaning Path Navigation • Low-Profile Design Slides Underneath Furniture •... - Page 18 Questions? Issues? We are here to help! Phone: (1) 718-535-1800 Email: support@pyleusa.com...
