Summary of Contents for Diamond Tech G2

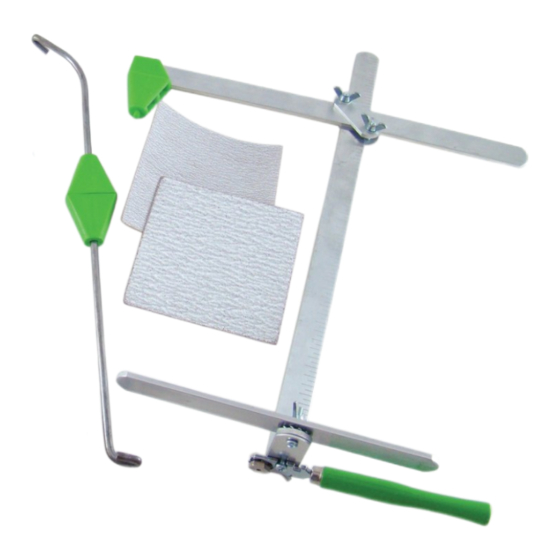

- Page 1 Diamond Tech bottle cutter generaTion green boTTle CuTTer for eCo CrafTing bottle cutter is made from recycled aluminum www.DiamondTechCrafts.com...
- Page 2 bottle cutter generaTion green boTTle CuTTer for eCo CrafTing Assembly Loosen both wing nuts on part D and slide it onto the shaft of part E. Slide part A into part D.
- Page 3 bottle cutter generaTion green boTTle CuTTer for eCo CrafTing Tighten wing nuts to secure in place. Loosen the wing nuts at the base of part E. Slide cutter underneath screw head into the slot Tighten wing nut to lock cutter in place. closest to the cutting head.
- Page 4 bottle cutter generaTion green boTTle CuTTer for eCo CrafTing Congratulations on buying the Generation Green ( ) bottle and jar cutter. Your purchase has brought us one step closer to “crafting a green world together.” What is “crafting a green world?” It is an attempt to create craft projects using reused, recycled and natural materials. With the Generation Green ( ) bottle cutter you have taken an active part in this movement through repurposing bottles and jars into functional and fun art.
- Page 5 bottle cutter generaTion green boTTle CuTTer for eCo CrafTing CORReCT bOTTle CUTTeR pOsITIONING cone If the built-in adjustments are not sufficient to allow you to cut at 90° to the glass surface – loosen the small bolt holding the glass cutter and inset a match stick (or a similar shimming item) between the cutter and the base of part E, as shown in drawing below.
- Page 6 bottle cutter generaTion green boTTle CuTTer for eCo CrafTing For cuts on the body of the bottle where the sides are straight; the cutting wheel must be perpendicular (90° angle) to the side of the bottle. The shaft holding the glass cutter (part E) should when cutter arm is vertical be lined up vertically to the bottle.
- Page 7 bottle cutter generaTion green boTTle CuTTer for eCo CrafTing sepARATING THe GlAss Be safe, wear protective glasses. To separate the bottle at the score use a hot/cold water bath. heat a large container of water on a hot plate or stove top until boiling. once water boils turn temperature down to a simmer. In another large container, fill with water and ice.
-
Page 8: Tips And Techniques
WARRANTY ExCLuDES CuTTER BLADES. _________________puRChASE DATE _________________puRChASE LoCATIoN FOR GlAss CUTTeR ReplACemeNTs CONTACT DIAmOND TeCH AT: Diamond Tech | 5600 Airport Blvd, Suite C | Tampa, FL 33634 | 800-937-9593 | 813-806-2923 | www.DiamondTechCrafts.com...
