- Page 1 instruction manual...
-
Page 3: Table Of Contents
INDEX Intro How to assemble medium coffee table Parts Installation How to assemble medium/small end table Parts Installation How to assemble large footstool/lounge table Parts Installation How to connect your modules Where to find the connectors Deconnect the connectors Possible connection points How to connect: sofa - sofa How to connect: table - sofa Positioning velcro pads... -
Page 4: Intro

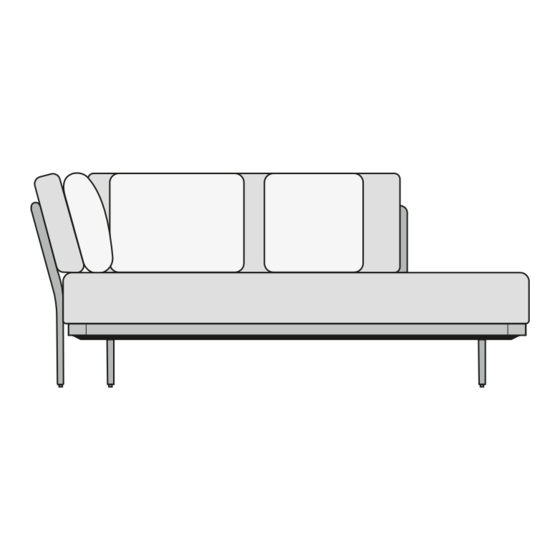

Flex carefully balances old and new to give the pieces their defining characteristics. The unique shape of the oval legs turns the Flex sofa into a one-of-a-kind piece of furniture destined for long- lasting appreciation. -
Page 5: How To Assemble Medium Coffee Table
PROPRIETARY INFORMATION THIS DOCUMENT CONTAINS PROPRIETARY DATA, AND IS NOT TO BE COPIED, REPRODUCED, USED OR DIVULGED TO UNAUTHORIZED PERSONS, IN WHOLE OR IN PART, WITHOUT PROPER SCALE UNITS AUTHORIZATION IN WRITING FROM MANUTTI BVBA - BELGIUM DESCR CAD NR... -
Page 6: How To Assemble Medium/Small End Table
PROPRIETARY INFORMATION THIS DOCUMENT CONTAINS PROPRIETARY DATA, AND IS NOT TO BE COPIED, REPRODUCED, USED OR DIVULGED TO UNAUTHORIZED PERSONS, IN WHOLE OR IN PART, WITHOUT PROPER SCALE UNITS AUTHORIZATION IN WRITING FROM MANUTTI BVBA - BELGIUM DESCR CAD NR... -
Page 7: How To Assemble Large Footstool/Lounge Table
How to assemble large footstool/lounge table Parts x 4 leg x 16 bolt M6x13,5 x 16 washer M6 x 1 hex key Installation... -
Page 8: How To Connect Your Modules
How to connect your modules Where to find the connectors Your module comes with connectors fixed at the bottom. In case you want to attach an additional module to another, you can use these connectors. Front view Bottom view... -
Page 9: Deconnect The Connectors
Deconnect the connectors Loosen the thumbscrews untill the connectors are detached from your module. We recommend to loosen the connectors rather then unscrewing them completely. -
Page 10: Possible Connection Points
Possible connection points... -
Page 12: How To Connect: Sofa - Sofa
How to connect: sofa - sofa Mount the two connectors at the connecting points of the first module. Softly fasten the connectors with the thumb screws. Lift the second module onto the connectors of the first module. Softly fasten the thumbscrews of the second module, firmly fasten both connectors with the thumb screws. -
Page 13: How To Connect: Table - Sofa
How to connect: table - sofa Fix the connectors to the tabletop using the thumb screws and the bolts. Position the connectors fixed to the table underneath the sofa. Fasten the connectors with the thumb screws. -
Page 14: Positioning Velcro Pads
Positioning velcro pads Your module comes with fixed velcro pads. You can add or remove the velcro pad, following below instructions to remount the velcro pad at the right position. Advised quantity, position and spread... -
Page 15: How To Position Velcro Pads
How to position velcro pads The velcro pad should always be pushed straight into the module. Push... -
Page 16: How To Position The Cushion Connector
How to position the cushion connector Connect the cushion connector to the bottom side of the back cushion using the velcro strip. Place the back cushion onto the available strip. - Page 17 Fit the arm cushion making sure that the cushion is placed onto the velcro of the cushion connector. Repeat the previous steps to install all arm cushions.
-
Page 18: How To Level Your Funiture
How to level your furniture Adjustable feet on the bottom of each module ensure that each module is leveled and fits perfectly to the next module. Please note that all four adjustable feet should touch the floor in order to be perfectly leveled. -
Page 19: Safety
Safety No high pressure cleaning WARNING: Do not use a high pressure cleaner to clean your furniture base. This may damage your furniture. Maintenance Go to manutti.com/maintenance... - Page 20 Need more assistance? Contact the Manutti customer service anytime and get all your questions answered at support@manutti.com manutti.com...
