Summary of Contents for TruckCraft TC-515

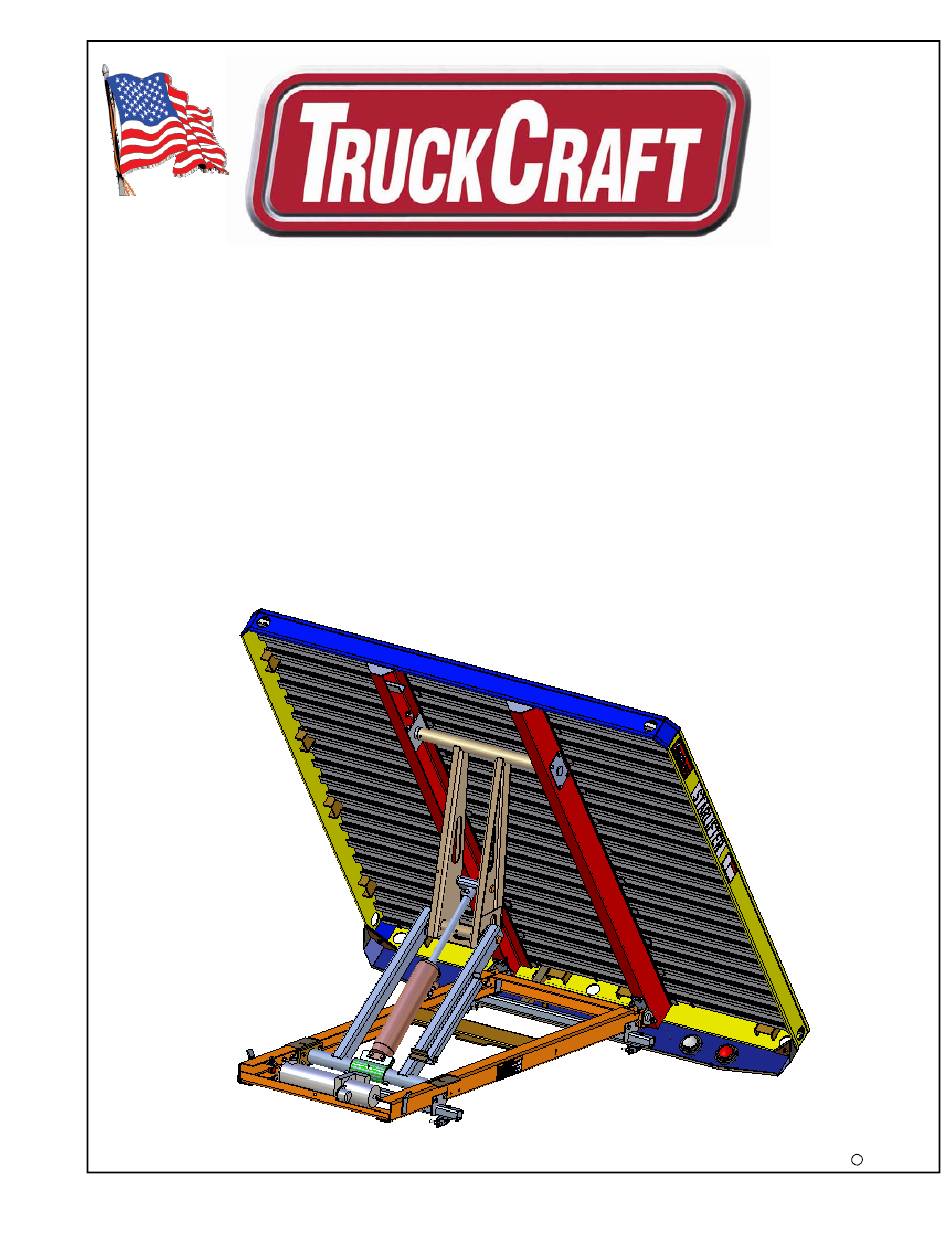

- Page 1 Proudly built in the USA Owner’s Manual TC-515 Hoist, Sub-Frame, and Flatbed TruckCraft Corporation Chambersburg, PA 1-800-755-3867 Copyright c 2008 www.TruckCraft.com...
-
Page 2: Table Of Contents
Ordering Repair Parts……………………………………1 Safety Information………………………………………...2 Mounting Instructions…………………………………….3 Maintenance……………………………………………..6 Parts List…………………………………………………..7 Warranty…………………………………………………..9 This hoist is designed for use on single-axle trucks with a cab-to-axle, CA, dimension of 56 inches. It is designed to be used in conjunction with the TruckCraft 100” long flatbed. -
Page 3: Preface
TC- 515 Hoist, Subframe and Deck. Proper care and operation of the unit will assure years of dependable service. Your local TruckCraft Dealer will instruct you in its general operation. TruckCraft Corporation will be glad to answer any questions that may arise regarding the operation of your unit. -
Page 4: Safety Information
TruckCraft Corporation Rev. - - 12/9/08 I5-04953 Safety Information Observe the following safety procedures during the use of the hoist and deck: Before operating read and understand all information furnished with your hoist and in this manual. Keep hands, feet and clothing away from moving parts. -
Page 5: Mounting Instructions
TruckCraft Corporation Rev. - - 12/9/08 I5-04953 Mounting Instructions CAUTION: Verify lifting and support devices can support the hoist, sub frame, and flatbed combined weight before picking up the assembly. The hoist, sub-frame and flatbed are normally shipped assembled and ready to install on a truck frame-see Figure 4. - Page 6 CAUTION: The TruckCraft assembly is designed to bolt to the truck frame. No welding is required. Do not weld any part of this assembly to the truck frame. Never cut or drill any openings on the top or bottom flanges of the sub-frame.
- Page 7 Use the sche- matic shown in figure 8 to con- nect the wiring. Note: Wire not supplied by TruckCraft. 9. Place the two decals A4-04684 and A4-04685 inside the cab on the dash in an easy to read loca- tion.
-
Page 8: Maintenance
TruckCraft Corporation Rev. - - 12/9/08 I5-04953 Maintenance 1. Depending on frequency of use, check hydraulic reservoir level and add oil. Periodically drain system and replace with clean oil. Use automatic transmission fluid only. 2. Depending on frequency of use, apply grease to all rotating parts at nine grease zerks. -
Page 9: Parts List
Page 7... - Page 10 Page 8...
-
Page 11: Warranty
Page 13...
