Summary of Contents for AUO JECTOR

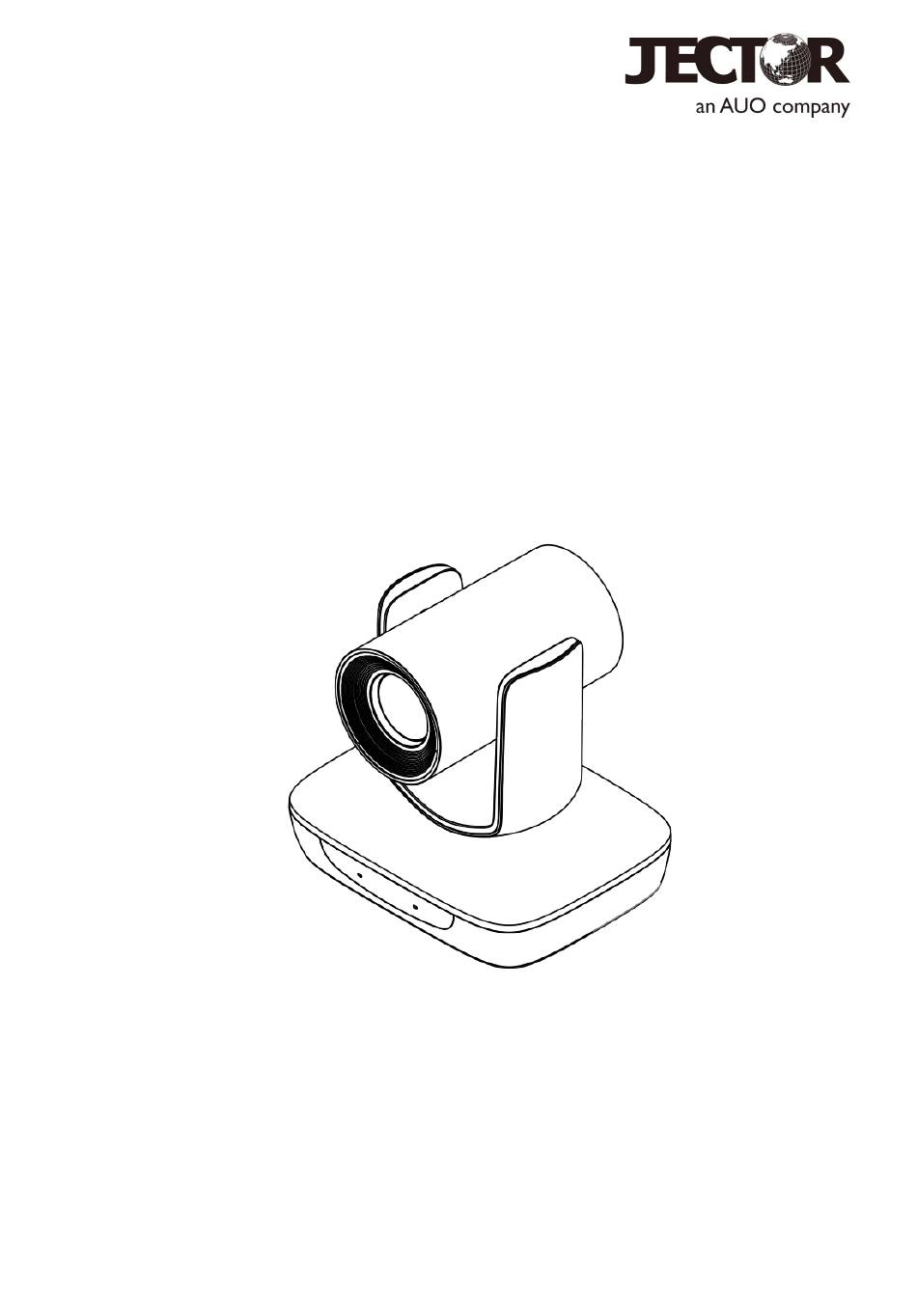

- Page 1 Lecturer Tracking Camera User Manual V1.3 JECTOR Digital Corporation 5F.-2, No.268, Liancheng Rd., Zhonghe Dist., New Taipei City 235038, Taiwan(R.O.C.) TEL / +886 2 82273311 E-mail / sale@jectordigital.com www.jectordigital.com...
- Page 2 SAFETY NOTES The following important notes must be followed carefully to run the camera and respective accessories in total safety. The camera and relative accessories are called video system in this section. Before installing the camera, please read this manual carefully. Please follow installation instructions indicated in this manual during installation.
- Page 3 Make sure the camera is not directly exposed to rain and water. Make sure the camera is far away from area where radiation, X-rays, strong electric waves, or magnetism is generated.
-
Page 4: Table Of Contents
CONTENTS ABOUT THE PRODUCT -------------------------------------------------------- 1 ----------------------------------------------------------------------------- 1 UICK UIDE ABOUT THE PRODUCT -------------------------------------------------------- 2 -------------------------------------------------------------------------------- 2 EATURES ----------------------------------------------------------- 2 & A ARTS CCESSORIES ---------------------------------------------------------------- 3 & I ARTS NTERFACES ------------------------------------------------------------------ 4 DIP S WITCHES ETTINGS -------------------------------------------------------------------- 5 EMOTE ONTROLLER INSTALLATION ---------------------------------------------------------------- 7 ----------------------------------------------------------- 7 ESKTOP... - Page 5 ----------------------------------------------------------------------- 18 WAN C ONNECTION CLIENT SOFTWARE INSTRUCTION ----------------------------------------- 20 ---------------------------------------------------------- 20 EARCH AMERA SETTING --------------------------------------------------------------------- 25 ----------------------------------------------------------------- 25 OFTWARE ONNECTION ANNEX 1 TECHNICAL SPECIFICATIONS ------------------------------------ 27 ANNEX 2 SIZE AND DIMENSION -------------------------------------------- 29 TROUBLESHOOTING -------------------------------------------------------- 31...
-
Page 6: About The Product
ABOUT THE PRODUCT 1 Make sure PC and the camera are in the same LAN; 2 Input IP address+ port number 88 (port Quick Guide numbers fixed to 88) in the IE address bar: The camera can be accessed and controlled http://IP:88, such as via the following ways: http://192.168.18.229:88... -
Page 7: About The Product
List Of Parts & Accessories ABOUT THE PRODUCT When you open the box, check all accessories according to the packing list. Features Camera (1) Built-in industry-leading body detection and lock tracking image algorithm; 1/2.8 inch CMOS sensor, 2.14 megapixel; ... -
Page 8: Main Parts & Interfaces
Main Parts & Interfaces Camera Front View RS-232IN/IR Pin Definition Number Definition 232-TX 1 Camera Module 2 Communication Indicator 232-RX 3 Power Indicator Rear View RS-232OUT/RS-485 Pin Definition 4 USB Number Definition 5 HDMI Video Output 6 LINE IN 232-TX 7 Network 232-RX 8 SDI... -
Page 9: Dip Switches Settings
DIP Switches Settings Before installing and operating the camera, Bottom View set video output format and menu through DIP switches. The camera has two 4-digit DIP switches. SW as below: 12 DIP Switch SW Settings Set camera video format and menu. 13 Mounting Hole No 1~4 is used to set video output format and menu. -
Page 10: Remote Controller
Remote Controller 1 HOME Press HOME button, camera moves to initial position. 2 Camera Selection Button Used to switch among 4 cameras, press 1-4 number buttons to control cameras with 1-4 addresses respectively. For example, press button 1 to control the camera with address 3 Focus Press “AUTO”... - Page 11 Used to input numbers, for example, preset In Menu status: get into relative menu number. option after it has been selected. 8 Cancel 16 Direction / Menu Operation To cancel numbers input In Non-menu status, press these four buttons to pan left/right and tilt up/down. 9 Power In Menu status: or button to select...
-
Page 12: Installation
INSTALLATION Note Take effective measures to avoid The camera has 2 installation types: desktop camera from dropping. and wall mount installations (optional). Do not grab the camera head when carrying. Note Do not rotate the camera head with hand. -
Page 13: Connections
Use inch screws to fix the camera on the bracket, fix the limit screw according to actual requirement, and make sure the camera is tightly fixed onto the bracket before your hands leave the camera. CONNECTIONS Note If preset 0 has been saved, after powered on, camera moves to preset 0 automatically; if preset 0 has not been saved, after powered on, camera moves to Home position, where both pan and tilt angle is zero and zoom factor is 1x. -
Page 14: Menu Settings
MENU SETTINGS Menu Configuration <VIDEO> IMAGE MODE STAND, MIRROR 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15 Refer to SHARPNESS Page 14 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14 BRIGHTNESS 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14 CONTRAST... - Page 15 <EXPOSURE> MODE FULL AUTO Refer to Page MANUAL GAIN 0, +2, +4, +6, +8, +10, +12, +14, +16, +18, +20, +22, +24, +26, +28, +30 1/25, 1/50, 1/75, 1/100, SPEED 1/120, 1/150, 1/215, 1/300, 1/425, 1/600, 1/1000, 1/1250, 1/1750, 1/2500, 1/3500, 1/6000, 1/10000 IRIS F14, F11, F9.6, F8,...
- Page 16 <COLOR> WB MODE AUTO, ATW R.GAIN -7, -6, -5, -4, -3, -2, -1, 0, Refer to Page +1, +2, +3, +4, +5, +6, +7 G.GAIN -7, -6, -5, -4, -3, -2, -1, 0, +1, +2, +3, +4, +5, +6, +7 B.GAIN -7, -6, -5, -4, -3, -2, -1, 0, +1, +2, +3, +4, +5, +6, +7...
- Page 17 < SYSTEM > ADDRESS 1, 2, 3, 4, 5, 6, 7 Refer to Page PROTOCOL VISCA, PELCO-P, PELCO-D BAUDRATE 2400, 4800, 9600, 38400 IR ADDRESS 1, 2, 3, 4 VIDEO FORMAT 1080P60, 1080P50, 1080I60, 1080I50, 1080P30, 1080P25, 720P60, 720P50 MOUNT MODE STAND, CEILING RS232/485 RS232, RS485...
-
Page 18: Menu Explanation
Submenus Menu Explanation From main menu, navigate to select Main Menu <EXPOSURE> menu, click IRIS to enter. <EXPOSURE>Set menu. Main Menu Call Preset #95 to enter menu. ❸ ❶ ❶ <EXPOSURE> ❷ <MENU> MODE FULL AUTO VIDEO EX-COMP EXPOSURE LEVEL COLOR PAN TILT ZOOM ❷... -
Page 19: Video
Video Exposure VIDEO menu is used to change video value. EXPOSURE menu is used to adjust exposure value. <VIDEO> IMAGE MODE STAND <EXPOSURE> MODE FULL AUTO SHARPNESS BRIGHTNESS EXP-COMP LEVEL CONTRAST GAMMA MODE ANTI-FLICKER 2DNR LEVEL 3DNR LEVEL SELECT BACK WIDE DYNAMIC SELECT BACK... -
Page 20: Color
SPEED: 1/25, 1/50, 1/75, 1/100, 1/120, Color 1/150, 1/215, 1/300, 1/425, 1/600, 1/1000, COLOR menu is used to adjust color related 1/1250, 1/1750, 1/2500, 1/3500，1/6000, values. Available options: 1/10000. IRIS PRI: Gain and shutter speed value are < COLOR> WB MODE MANUAL adjusted automatically according to working R.GAIN... -
Page 21: Pan/Tilt/Zoom
System Pan/Tilt/Zoom <SYSTEM> ADDRESS PAN/TILT/ZOOM is used to change PROTOCOL VISCA pan/tilt/zoom value, available options: BAUD RATE 9600 IR ADDRESS <PAN TILT ZOOM> VIDEO FORMAT 1080P25 PAN/TILT SPEED MOUNT MODE STAND D-ZOOM LIMIT RS232/485 RS232 PTZ TRIG AF LANGUAGE ENGLISH RATIO SPEED POWER UP ACTION HOME... -
Page 22: Status
STATUS List Of Special Preset Commands < STATUS> Preset No. Function ADDRESS PROTOCOL VISCA Turn on tracking BAUD RATE 9600 Turn off tracking IR ADDRESS Cruise, camera switches among VIDEO FORMAT 1080P25 saved 0~29 presets repeatedly MOUNT MODE STAND FIRMWARE VER V1.0.37 and sequentially in fixed interval. -
Page 23: Network Connection
Network Connection Connect the camera to network with an Ethernet cable, power on the camera. LAN Connection Please refer to the above diagram, user1 and user 2 are in the same router, they are considered as in the same LAN, connect the camera to the same LAN as where the PC is, and refer to below instructions as how to use the application software, then the camera can be found and connected from the online device list. - Page 24 (1) Set camera’s IP address as static IP address. Set camera’s IP address in LAN: connect user PC to the LAN (Router 1) where the camera is connected according to LAN connection instructions, use application software CameraCMS to search and find the camera, then add it to manage; then set camera’s IP address in the same network segment as the router 1.
-
Page 25: Client Software Instruction
address 115.200.31.100 + port 10200. Then, in WAN, the mapping of camera 1 and (IP 115.200.31.100 + port 10200) is established. Camera 2 can use another external port such as 10320, so mapping of camera 2 with (IP 115.200.31.100 + port 10320) is established. In the "Managed Device"... - Page 26 To modify the device IP address, input the IP address, mask, gateway in the Modify Network column. CM-U220PA To control and preview a camera, first choose the device, modify its IP address as the IP address of the same LAN, then click Add to Client as the picture shown below. Please check that all IP addresses are in the same LAN.
- Page 27 Preview Click Main View to get into camera control and preview part as below.
- Page 28 This interface includes three main parts: Device List, Device Control, Video Preview. ●Device: it displays all online cameras added to “Device Management”. Device Control: get control of the selected camera (camera name in blue). Video Preview: double click the camera in the list, main camera stream will be displayed in the preview window;...
-
Page 30: Setting
2.Set preset 0 & 1 Setting Preset 1: preset 1 is the position where tracking starts, preferred to be set at Podium; to configure it, move the camera’s Software Connection Pan/Tilt/Zoom to put the lecturer in the appropriate size and position in the image, as If you want to track settings, you can Install shown in the figure below, then set it as preset and turn on “CameraCMS”, click on Start... - Page 31 Tracking Parameters Start tracking the target altitude line: When the camera is target-free (at bit 0), the Track Sens: set sensitivity of tracking based detected target head must be higher than the on speed of movement. High sensitivity will line before camera tracking can be triggered. track at small movement.
-
Page 32: Annex 1 Technical Specifications
ANNEX 1 TECHNICAL SPECIFICATIONS Items Value Image Sensor 1/2.8" CMOS, 2.14 megapixel Focal Lens f=4.7~94.0mm Optical Zoom Digital Zoom Iris F1.6~F3.5 Horizontal Viewing Angle 59.5° - 2.9° Focus System Auto, Manual, PTZ Trigger, One Push Trigger Shutter Speed 1/25s to 1/10, 000s Gain Auto, Manual Auto, Indoor, Outdoor, One Push, Manual, Auto Tracking, Sodium... - Page 33 Audio Compression Protocols ONVIF, RTSP, RTMP, HTTP, TCP, UDP Dual Stream Support USB Interface USB2.0 Support Video Interface H.264 / MJPEG Image Size 1920x1080, 1280x720, 640x360 Interface Video Interface HDMI 1.3 / 3G-SDI Network Interface RJ45 (100M) interface, Reserved power over Ethernet Control Interface RS-485 / RS-232 General...
-
Page 34: Annex 2 Size And Dimension
ANNEX 2 SIZE AND DIMENSION Front Rear Side Bottom... -
Page 35: Troubleshooting
TROUBLESHOOTING Problem Possible Cause Solution Power supply failure Check power supply No action or image Power adapter damaged Replace power adapter after powered on Power cable connection got loosen Check & reconnect Power cable is too long Use a shorter cable No self-testing after powered on, or with Power adapter damaged... - Page 36 The user manual is only for a reference, if there are any changes or differences, please ask for the latest version from your supplier Y06020900094...
