Chenzhu CZ2047 User Manual

Connections

(1) The isolators adopt knock-down terminals.
(2) The wires are single or multiple cables with a cross- section of 0.5
2 2
mm ~2.5mm .
(3) A length of 8mm bared wire is locked by the M3 bolt.As shown in
figure.

Installation

Mount the module on a 35mm DIN rail
(1) Make the upside of the isolator to the rail;
(2) Push the downside of the isolator towards the rail.
1
2
4

Disassembly

(1) Use a screwdriver (edge length≤6mm）insert the metal lock which at
the downside of the isolator;
(2) Push the screwdriver upwards,and pull the metal lock downwards;
(3) Take out the isolator from the rail.
3
1
2

Maintenance

(1) Every product has been tested strictly before delivery.If users find any
abnormality,please contact the nearest agent or our company.
(2) In 5 years from delivery date,if the product performs abnormally under
normal use conditions,we will repair it for free.
5

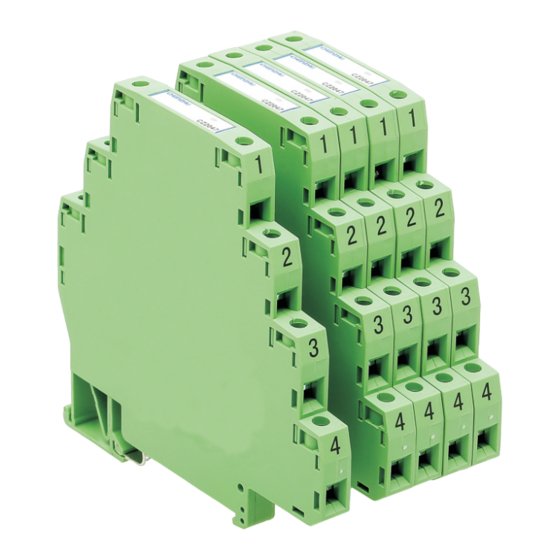

Isolator
CZ2047
Please read the instruction manual carefully before use the product,
and please safekeeping.
Caution
Please check whether the product type on the package accords
to the ordering contract;
Read this manual carefully before installation or using. If there is
anything unclear, please dial technic support hotline-400 881 0780;
Isolated barrier should be located in the safe area;
Supply voltage is 24VDC, 220VAC is forbidden;
CZ.CZ2047-EX.11(S)E-4.0(a)/15.08
